20416x50D Murray - Walk-Behind Mower (2002)

Model: 20416x50D

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

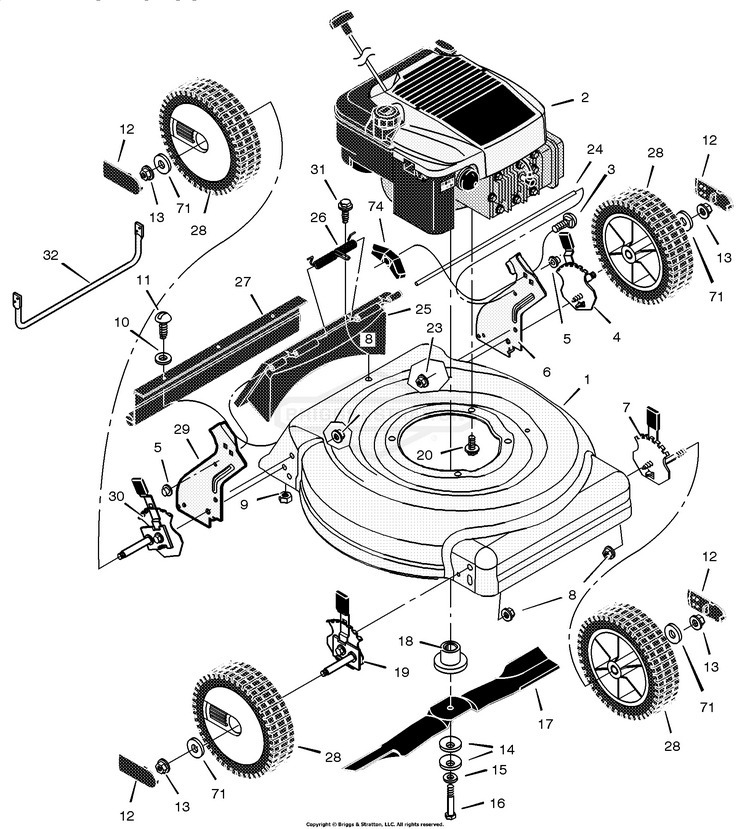

Mower Housing Assembly

...
...
1
Housing BS-776150MA
...
3
Bolt, Carriage BS-002X81MA
...
4
Adjuster, Left Rear Height BS-672605MA
...
5
Push On Cap (Included with Ref. No. 25) BS-028X49MA
...
6
Bracket, Left Handle BS-1101239E700
...
7
Adjuster, Left Front Height BS-672601MA
...
8
NUT, 3/8-16 BS-703333
...
9
Nut, Hex BS-15X102MA
...
10
Washer BS-017X38MA
...
11
Screw BS-004X21MA
...
12
Hub Cap (Optional) BS-672122MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137MA
...
15
Washer BS-17X124MA
...
16
Bolt BS-01X153MA
...
17
Blade BS-672763E701MA
...
18
Adapter, Blade BS-672503MA
...
19
Adjuster, Right Front Height BS-672600MA
...
20
Bolt, Engine BS-0025X6MA
...
23
NUT, HEX FLNG,5/16-18 BS-704067
...
24
Rod, Pivot (Included with Ref. No. 25) BS-215X17 Z
...
25
Door, Rear BS-672612
...
26
Spring (Included with Ref. No. 25) BS-166X44MA
...
27
Guard, Rear BS-671970MA
...
28
Wheel BS-071134MA
...
29
Bracket, Right Handle BS-1101238E700
...
30
Adjuster, Right Rear Height BS-672604MA
...
31
SCREW-#10X.5 B W/WAS BS-26X245MA
...
32
Guard, Rear BS-671990
...
71
Washer BS-017X91 Z
...
74
Knob BS-071495MA
...
--
Instruction Book BS-F-020419L
