20415x14D Murray - Walk-Behind Mower (2002)

Model: 20415x14D

Back To Assemblies

Save Part Not Listed?
product name

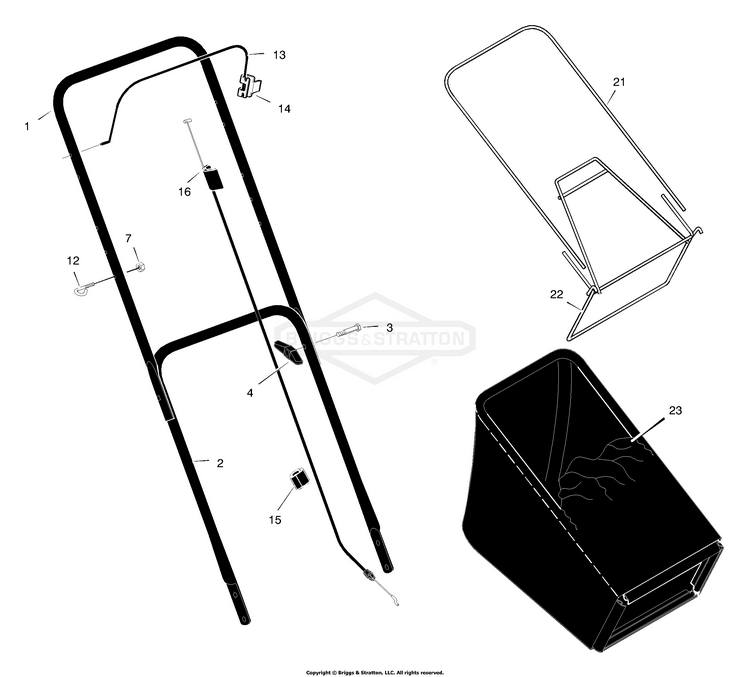

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101555E701MA
...
2
Handle, Lower (Black) BS-672874E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
LEVER, STOP 20RB PUSH BS-7101742AYP
...
14
Bracket, Stop Lever BS-1101454
...
15
Fastener, Cable BS-1101353MA
...
16
Engine Stop Cable BS-1101360MA
...
21
TUBE-BAG TOP 20RB BS-071592MA
...
22
Frame Assembly BS-672905MA
...
23
Bag, Cloth BS-1101031MA
