20407x32A Murray - Walk-Behind (1998)

Model: 20407x32A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Handle Assembly

...
...
1
Handle, Upper BS-671918E701
...
2
Handle, Lower BS-671917E701
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-025X14MA
...
9
Throttle Control BS-672142
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
Engine Stop Lever BS-671924E700
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
Engine Stop Cable BS-672127MA
...
19
Screw BS-26X268MA
...
20
Clamp BS-042294
...
21
TUBE-BAG TOP 20RB BS-071592MA
...
22
Frame Assembly BS-672614
...
23
Complete Service Replacement Kit * BS-24201MA

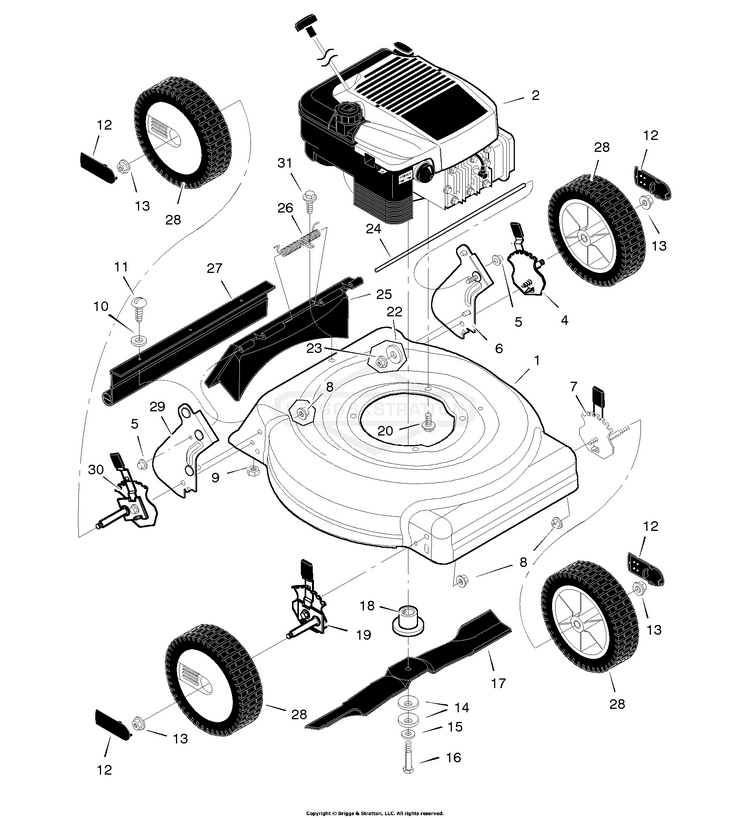

Mower Housing Assembly

...
...
1
Housing BS-776005
...
4
Adjuster, Left Rear Height BS-672605A
...
5
Push On Cap BS-028X49MA
...
6
Bracket, Left Handle BS-672591
...
7
Adjuster, Left Front Height BS-672601A
...
8
NUT, 3/8-16 BS-703333
...
9
Nut, Hex BS-15X102MA
...
10
Washer BS-017X38MA
...
11
Screw BS-004X21MA
...
12
Hub Cap (Optional) BS-043615MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137MA
...
15
Washer BS-17X124MA
...
16
Bolt BS-01X153MA
...
17
Blade BS-671921E701
...
18
Adapter, Blade BS-672503MA
...
19
Adjuster, Right Front Height BS-672600A
...
20
Bolt, Engine BS-0025X6MA
...
22
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
...
23
NUT, HEX FLNG,5/16-18 BS-704067
...
24
Rod, Pivot BS-215X17 Z
...
25
Door, Rear BS-672611
...
26
Spring BS-166X44MA
...
27
Guard, Rear BS-671970MA
...
28
Wheel BS-672080
...
29
Bracket, Right Handle BS-672590
...
30
Adjuster, Right Rear Height BS-672604A
...
31
Screw BS-26X259MA
...
--
Instruction Book BS-F-98469
