20406x50B Murray - Walk-Behind (1998)

Model: 20406x50B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

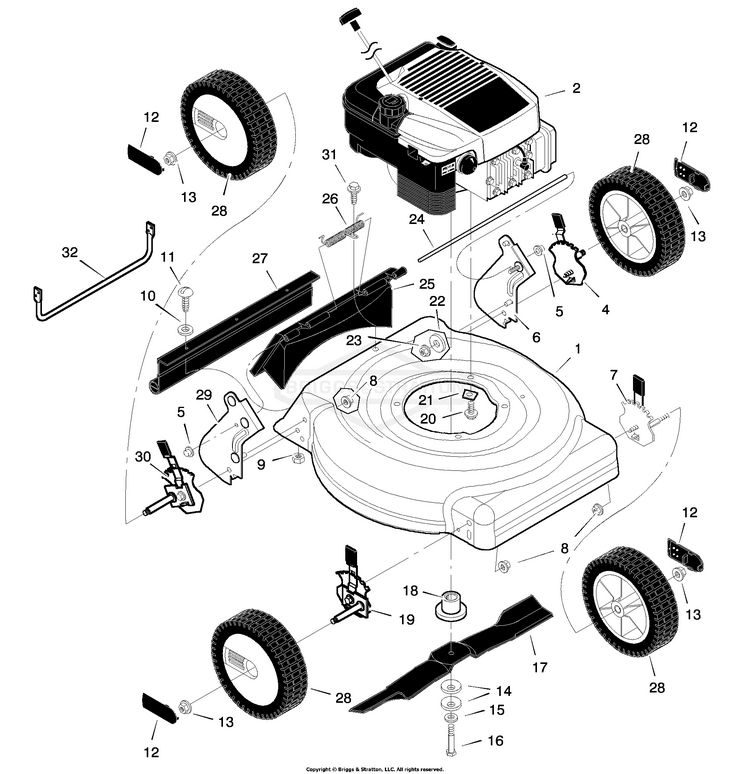

Mower Housing Assembly

...
...
1
Housing BS-776005
...
3
Stop, Rope (Recoil - Start) BS-042189MA
...
4
Adjuster, Left Rear Height BS-672605MA
...
5
Push On Cap BS-028X49MA
...
6
Bracket, Left Handle BS-672591
...
7
Adjuster, Left Front Height BS-672601MA
...
8
NUT, 3/8-16 BS-703333
...
9
Nut, Hex BS-15X102MA
...
10
Washer BS-017X38MA
...
11
Screw BS-004X21MA
...
12
Hub Cap (Optional) BS-043847MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137MA
...
15
Washer BS-17X124MA
...
16
Bolt BS-01X153MA
...
17
Blade BS-671921E701
...
18
Adapter, Blade BS-672503MA
...
19
Adjuster, Right Front Height BS-672600MA
...
20
Bolt, Engine BS-0025X6MA
...
21
Support, Engine BS-671989
...
22
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
...
23
NUT, 5/16-18, GR5 BS-703409
...
24
Rod, Pivot BS-215X17 Z
...
25
Door, Rear BS-672613
...
26
Spring BS-166X44MA
...
27
Deflector, Rear BS-671970MA
...
28
Wheel BS-071134MA
...
29
Bracket, Right Handle BS-672590
...
30
Adjuster, Right Rear Height BS-672604MA
...
31
Screw BS-26X259MA
...
32
Guard, Rear BS-671990
...
--
Instruction Book BS-F-98593
