20405x30B Murray - Walk-Behind Mower (2000)

Model: 20405x30B

Save Part Not Listed?
product name

Popular Parts

Popular Parts

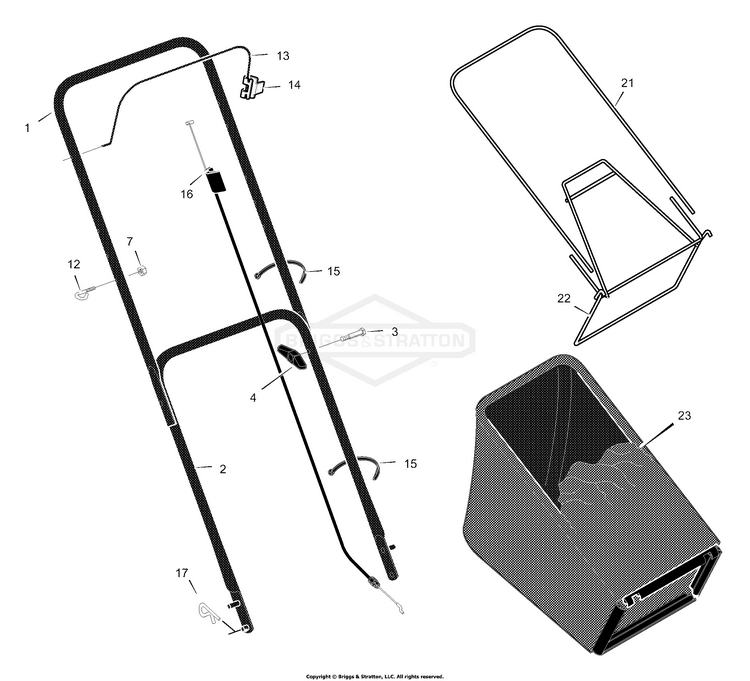

Handle & Bag Assembly

...
...
1
Handle, Upper (Gray) BS-671918E724
...
2
Handle, Lower (Gray) BS-1101010E724
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
Engine Stop Lever BS-671924E700
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
Engine Stop Cable BS-672832
...
17
Pin, Hair BS-031X10MA
...
21
TUBE-BAG TOP 20RB BS-071592MA
...
22
Frame Assembly BS-672614
...
23
Bag, Cloth BS-672069

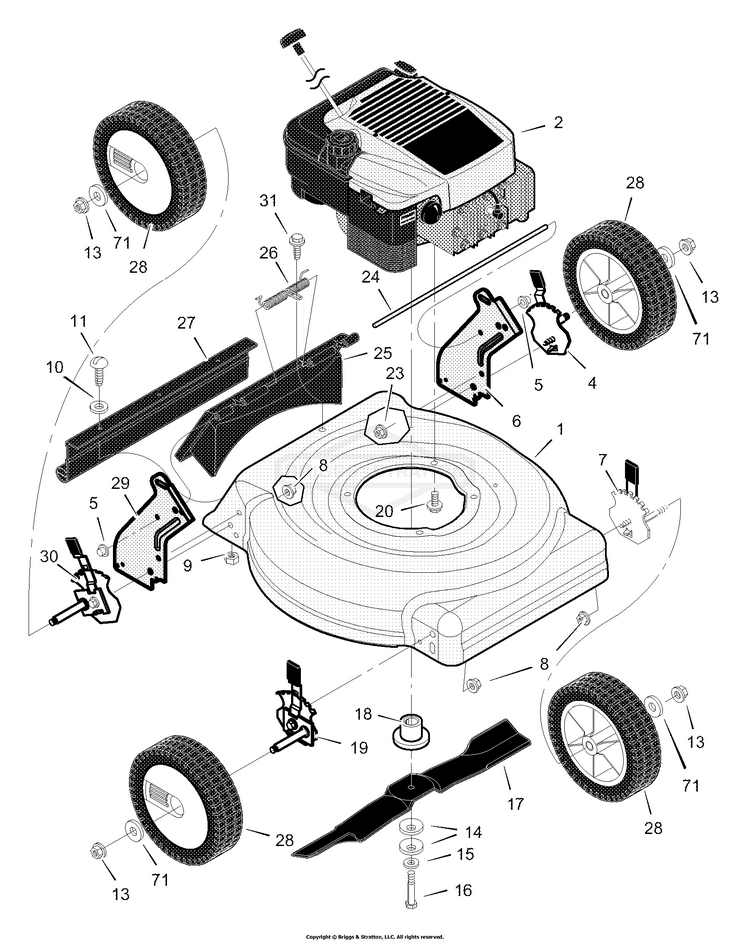

Mower Housing Assembly

...
...
1
Housing BS-776150MA
...
4
Adjuster, Left Rear Height BS-672605MA
...
5
Push On Cap BS-028X49MA
...
6
Bracket, Left Handle BS-672869E700
...
7
Adjuster, Left Front Height BS-672601MA
...
8
NUT, 3/8-16 BS-703333
...
9
Nut, Hex BS-15X102MA
...
10
Washer BS-017X38MA
...
11
Screw BS-004X21MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137MA
...
15
Washer BS-17X124MA
...
16
Bolt BS-01X153MA
...
17
Blade BS-672763E701MA
...
18
Adapter, Blade BS-672503MA
...
19
Adjuster, Right Front Height BS-672600MA
...
20
Bolt, Engine BS-0025X6MA
...
23
NUT, HEX FLNG,5/16-18 BS-704067
...
24
Rod, Pivot BS-215X17 Z
...
25
Door, Rear BS-672611
...
26
Spring BS-166X44MA
...
27
Guard, Rear BS-671970MA
...
28
Tire & Rim BS-336545MA
...
29
Bracket, Right Handle BS-672868E700
...
30
Adjuster, Right Rear Height BS-672604MA
...
31
SCREW-#10X.5 B W/WAS BS-26X245MA
...
71
Washer BS-017X91 Z
...
--
Instruction Book BS-F-000443L
