203010x60A Murray - Walk-Behind Mower (2003)

Model: 203010x60A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

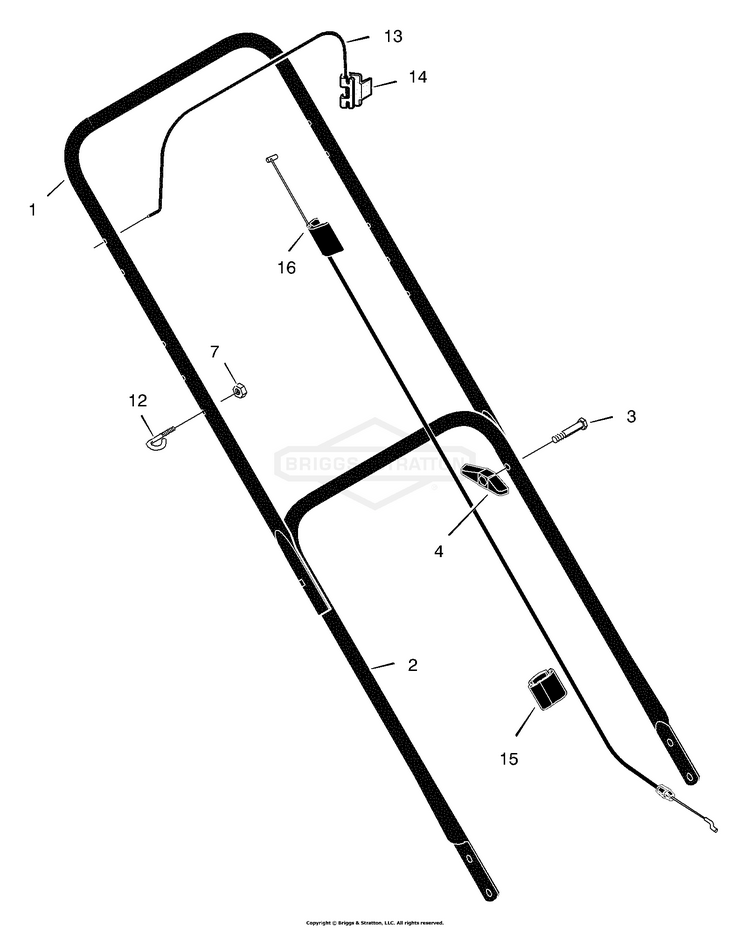

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101555E701MA
...
2
Handle, Lower (Black) BS-672874E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
LEVER, STOP 20RB PUSH BS-7101742AYP
...
14
Bracket, Stop Lever BS-1101454
...
15
Fastener, Cable BS-1101353MA
...
16
Engine Stop Cable BS-1101137MA

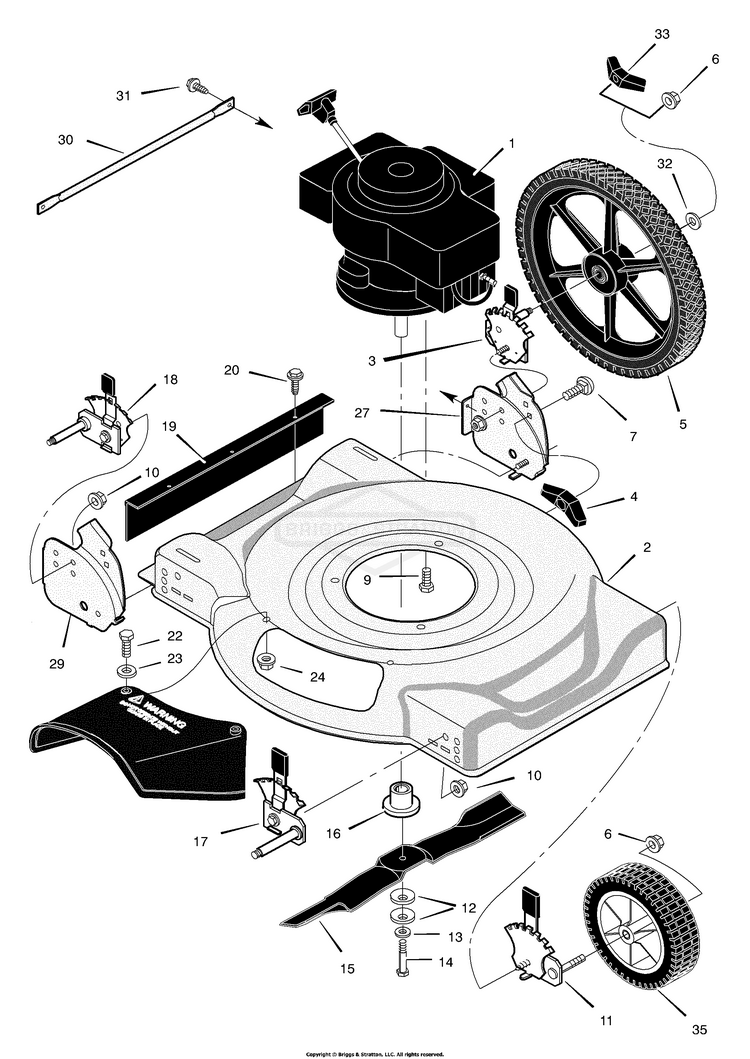

Mower Housing Assembly

...
...
2
Housing BS-7501015
...
3
Height Adjuster, Left Rear BS-1101673MA
...
4
Knob BS-071495MA
...
5
Wheel and Tire BS-672074 071597
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81MA
...
9
Bolt, Engine BS-0025X6MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-1101563MA
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X142MA
...
15
Blade BS-042785E701MA
...
16
Adapter, Blade BS-071056MA
...
17
Height Adjuster, Right Front BS-1101562MA
...
18
Height Adjuster, Right Rear BS-1101672
...
19
Guard, Rear BS-1101675
...
20
SCREW-#10X.5 B W/WAS BS-26X245MA
...
21
Deflector, Chute BS-671929MA
...
22
Bolt BS-01X121
...
23
WASHER BS-703332
...
24
NUT, 1/4-20, NYLOCK BS-703232
...
27
Bracket, Left Handle BS-1101305E701MA
...
29
Bracket, Right Handle BS-1101304E701MA
...
30
Brace BS-1101674E701
...
31
SCREW.25-20 S-T BS-26X263MA
...
32
Washer BS-017X91 Z
...
33
Knob, Wing BS-071495MA
...
35
Wheel and Tire BS-071597
...
--
Book, Instruction BS-F-030456L
