20223B Murray - Walk-Behind Mower (1996)

Model: 20223B

Save Part Not Listed?
product name

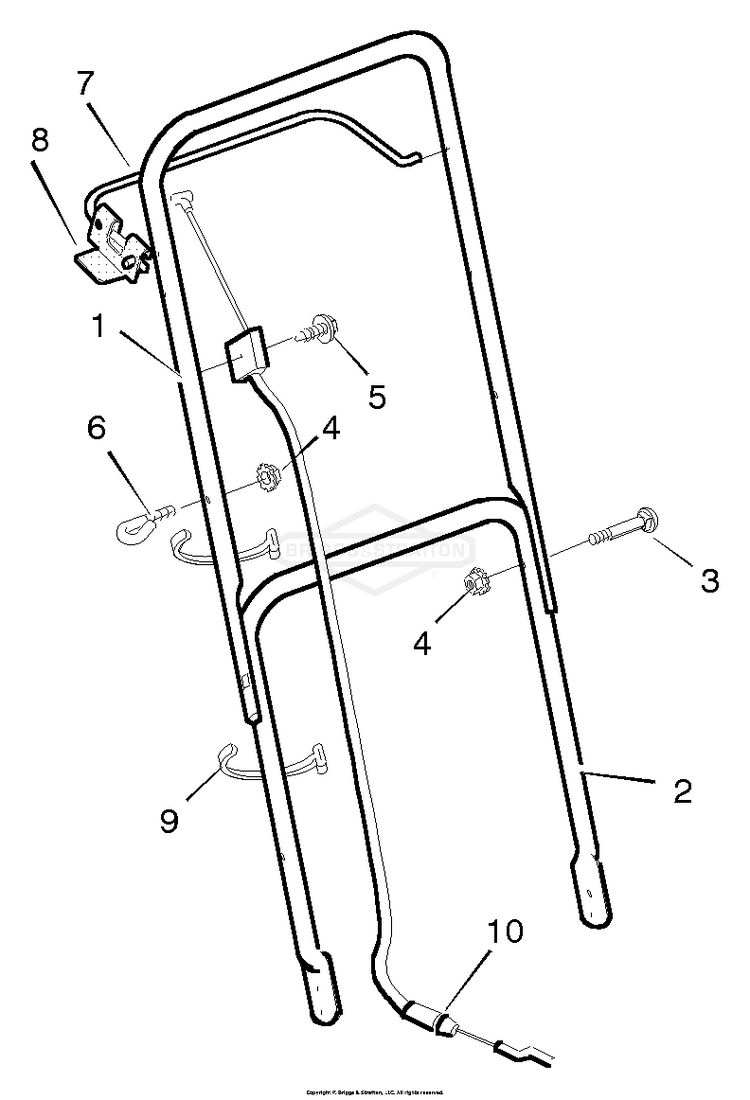

Handle Assembly

...
...
1
Handle, Upper - Straight (Gray) BS-043838E701MA
...
--
Handle, Upper - Straight (Black) BS-043838E701MA
...
2
Handle, Lower (Gray) BS-071151E701MA
...
--
Handle, Lower (Black) BS-071151E701MA
...
3
Bolt BS-03X136MA
...
4
NUT, 1/4-20, NYLOCK BS-703232
...
5
Screw BS-26X220MA
...
6
GUIDE, ROPE BS-043956MA
...
7
Engine Stop Lever - Straight BS-43786E700
...
8
Bracket, Stop Lever BS-43628 BC
...
9
TIE,STRAP-REMOVABLE BS-071372MA
...
10
Engine Stop Cable BS-043822MA

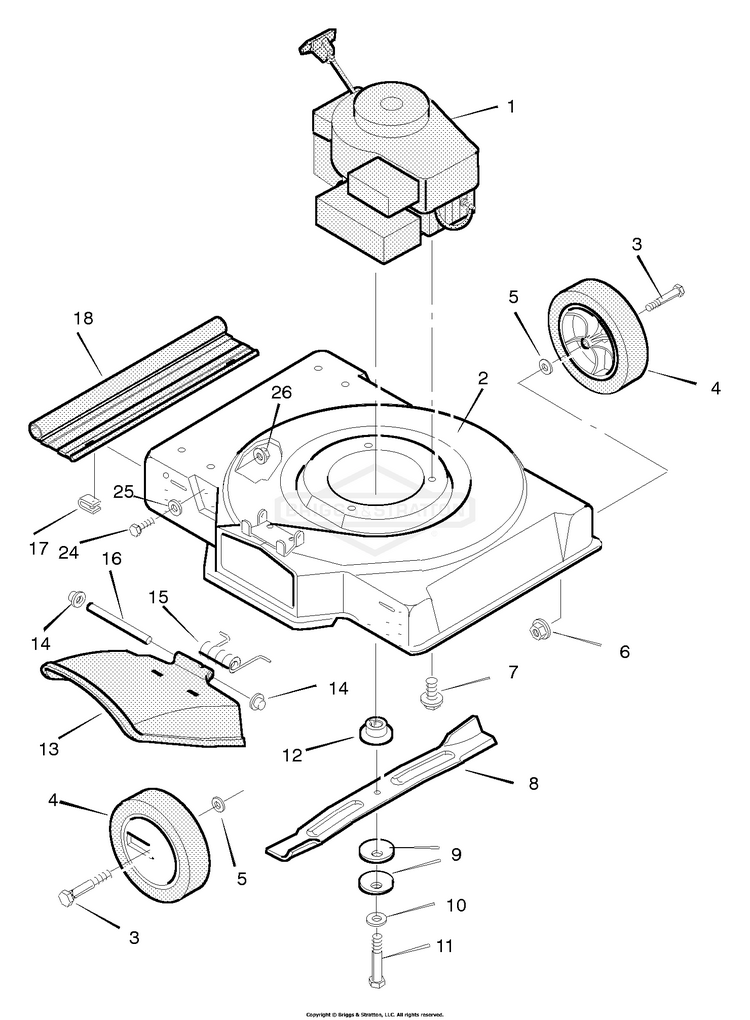

Mower Deck Assembly

...
...
2
Housing, For Non- Folding Handle BS-70120A
...
3
Bolt, Axle BS-009X10MA
...
4
Wheel and Tire BS-020272
...
5
Washer BS-010851 Z
...
6
NUT, 3/8-16 BS-703333
...
7
Bolt, Engine BS-0025X6MA
...
8
Blade BS-042785E701MA
...
9
Washer, Belleville BS-17X137MA
...
10
Washer BS-17X124MA
...
11
Bolt, Hex BS-01X142MA
...
12
Adapter, Blade BS-071056MA
...
13
Deflector, Chute BS-042919
...
14
Push- On Cap BS-028X42MA
...
15
Spring BS-0166X5MA
...
16
Pin, Pivot BS-215X11 Z
...
17
Retainer BS-042743MA
...
18
Deflector, Rear BS-042746MA
...
24
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
25
Washer BS-018X31MA
...
26
NUT, 3/8-16 BS-703333
