20221x19A Murray - Walk-Behind Mower (1996)

Model: 20221x19A

Save Part Not Listed?
product name

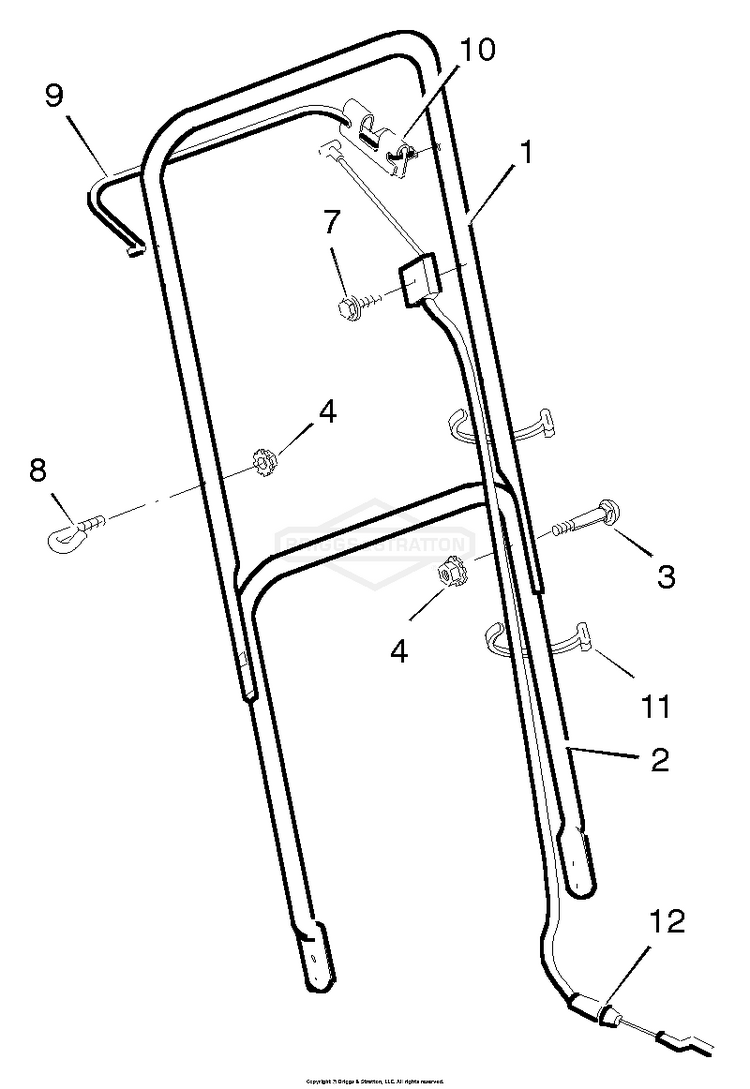

Handle Assembly

...
...
1
Handle, Upper - Straight BS-043838E701MA
...
2
Handle, Lower BS-071151E701MA
...
3
Screw BS-03X136MA
...
4
NUT, 1/4-20, NYLOCK BS-703232
...
7
Screw BS-26X220MA
...
8
GUIDE, ROPE BS-043956MA
...
9
Engine Stop Lever - Straight BS-43786E700
...
10
Bracket, Stop Lever BS-43628 BC
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Engine Stop Cable BS-043824MA

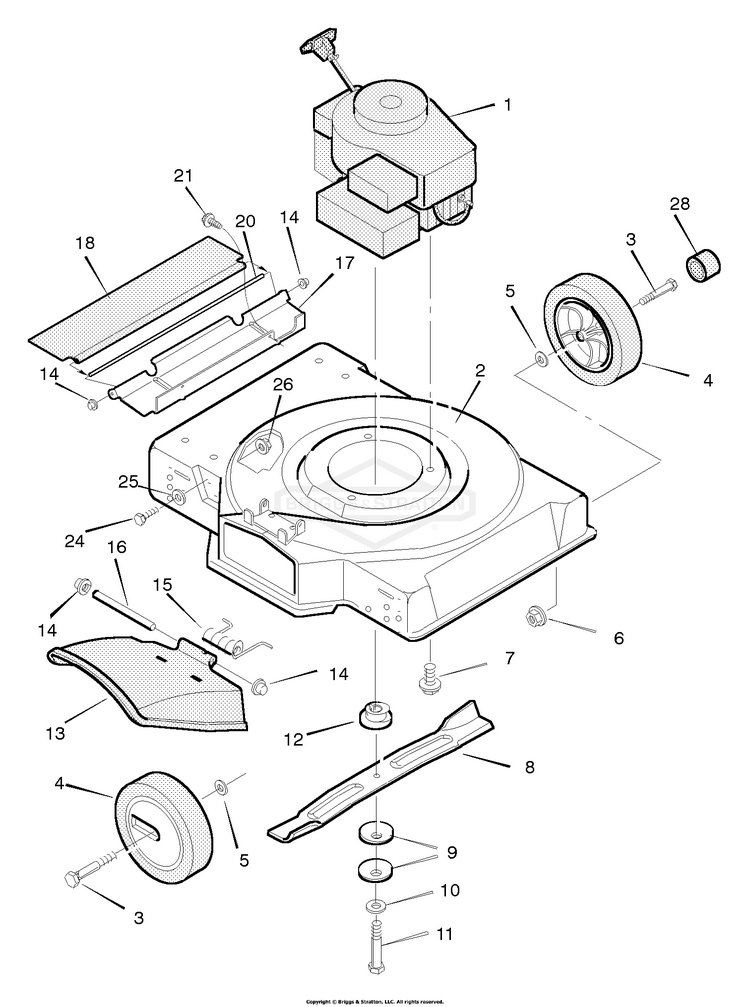

Mower Housing Assembly

...
...
2
Housing (For Non - Folding Handle) BS-70120A
...
3
Bolt, Axle BS-009X10MA
...
5
Washer BS-010851 Z
...
6
NUT, 3/8-16 BS-703333
...
7
Bolt, Engine BS-0025X6MA
...
8
Blade BS-042785E701MA
...
9
Washer, Belleville BS-17X137MA
...
10
Washer BS-17X124MA
...
11
Bolt, Hex BS-01X142MA
...
12
Adapter, Blade BS-071056MA
...
13
Deflector, Chute BS-042919
...
14
Push- On Cap BS-028X42MA
...
15
Spring BS-0166X5MA
...
16
Pin, Pivot BS-215X11 Z
...
17
Extension, Rear BS-71746E701
...
18
Deflector, Rear BS-071797
...
20
Pin BS-071800 Z
...
21
Screw BS-26X274MA
...
24
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
25
Washer BS-018X31MA
...
26
NUT, 3/8-16 BS-703333
...
28
Hub Cap (Optional) BS-020107MA

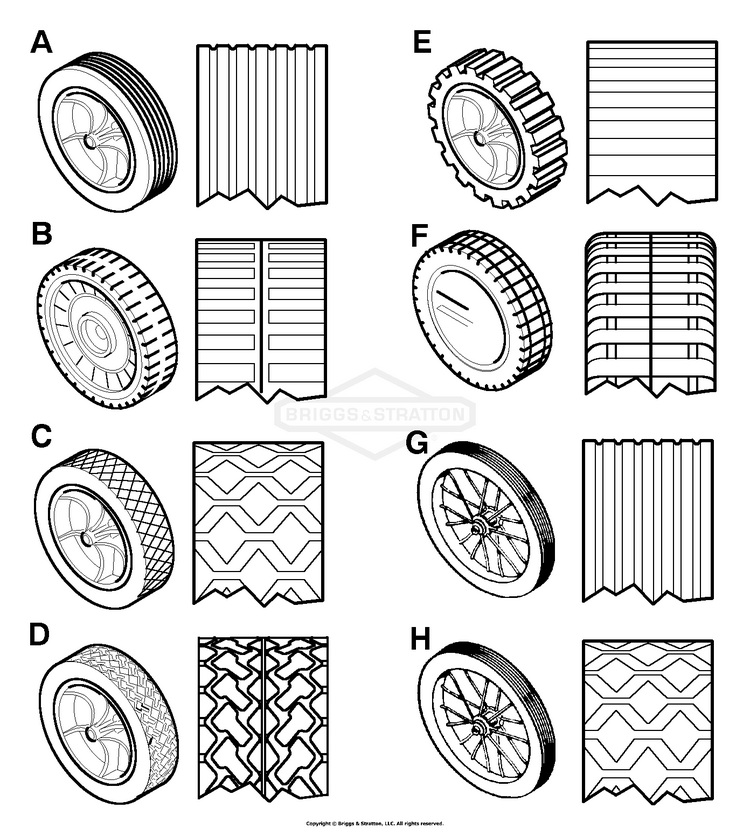

Wheels And Tires

...
...
A
WHEEL & TIRE ASSEMBLY, Light Gray, 8" BS-020104MA
...
A
8 inch Plastic, Gray BS-071598
...
A
8 inch Metal, White BS-043273
...
B
7 inch Plastic, White BS-071148
...
B
7 inch Plastic, Gray BS-71596
...
C
6 inch Plastic, White BS-042174
...
C
Tire & Rim BS-336546MA
...
C
7 inch Plastic, Gray BS-071597
...
C
8 inch Plastic, White BS-020271
...
C
8 inch Metal, White BS-043414
...
D
7 inch Plastic, White BS-042172
...
D
WHEEL & TIRE ASSEMBLY, White, 8" BS-042173MA
...
D
8 inch Plastic, Gray BS-071599
...
E
WHEEL & TIRE ASSEMBLY, White, 8" BS-020105MA
...
E
8 inch Plastic, Gray BS-071600
...
E
8 inch Metal, White BS-043274MA
...
F
Wheel BS-071132MA
...
F
8 inch Plastic, Gray BS-071132MA
...
F
Wheel BS-071134MA
...
F
8 inch Ball Bearings, Gray BS-071134MA
...
G
14 inch Spoke BS-042666
...
G
16 inch Spoke BS-070106
...
H
WHEEL & TIRE ASSEMBLY, 16" Spoke BS-070119MA
