202010x24A Murray - Walk-Behind Mower (2003)

Model: 202010x24A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

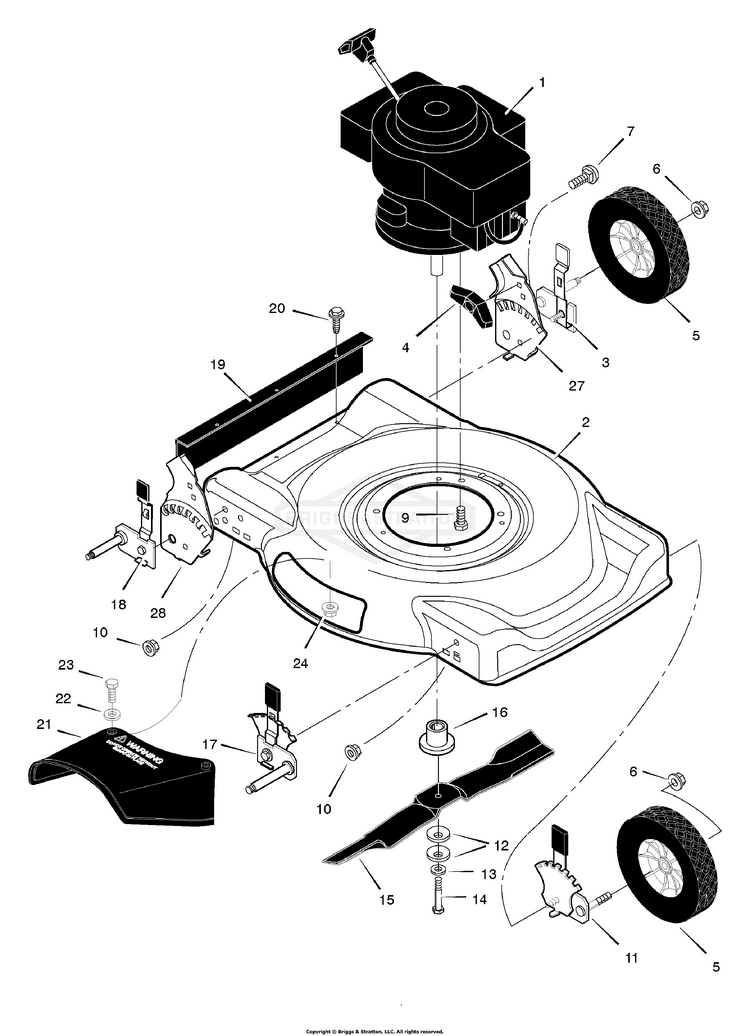

General Assembly

...
...
2
Housing BS-7501015
...
3
Height Adjuster, Left Rear BS-1101565MA
...
4
Knob BS-071495MA
...
5
Tire & Rim BS-336546MA
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81MA
...
9
Bolt, Engine BS-0025X6MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-1101563MA
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X142MA
...
15
Blade, Side Discharge BS-042785E701MA
...
16
Adapter, Blade BS-071056MA
...
17
Height Adjuster, Right Front BS-1101562MA
...
18
Height Adjuster, Right Rear BS-1101564MA
...
19
Guard, Rear (Included with Ref. No. 1) BS-1101675
...
20
SCREW-#10X.5 B W/WAS (Included with Ref. No. 1) BS-26X245MA
...
21
Deflector, Chute BS-671929MA
...
22
Washer BS-017X37 Z
...
23
Bolt, Hex BS-01X121
...
24
NUT, 1/4-20, NYLOCK BS-703232
...
27
Bracket, Left Handle BS-1101303E700
...
28
Bracket, Right Handle BS-1101302E700
...
--
Warning, 20/22 OPEI '98 BS-48X405MA
...
--
Cut Finger BS-48X6458
...
--
Warning, Install Chute BS-44X7329MA
...
--
Book, Instruction BS-F-030443L

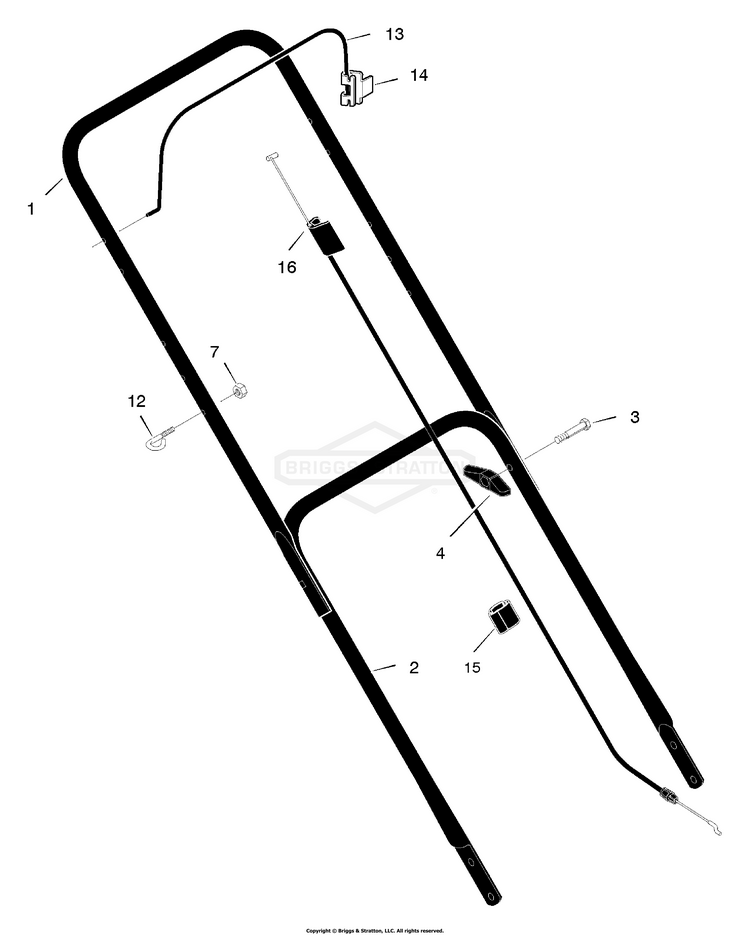

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101555E701MA
...
2
Handle, Lower (Black) BS-672874E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
LEVER, STOP 20RB PUSH BS-7101742AYP
...
14
Bracket, Stop Lever BS-1101454
...
15
Fastener, Cable BS-1101353MA
...
16
Engine Stop Cable BS-1101136MA
