20111x92C Murray - Walk-Behind Mower (2002)

Model: 20111x92C

Save Part Not Listed?
product name

Popular Parts

Popular Parts

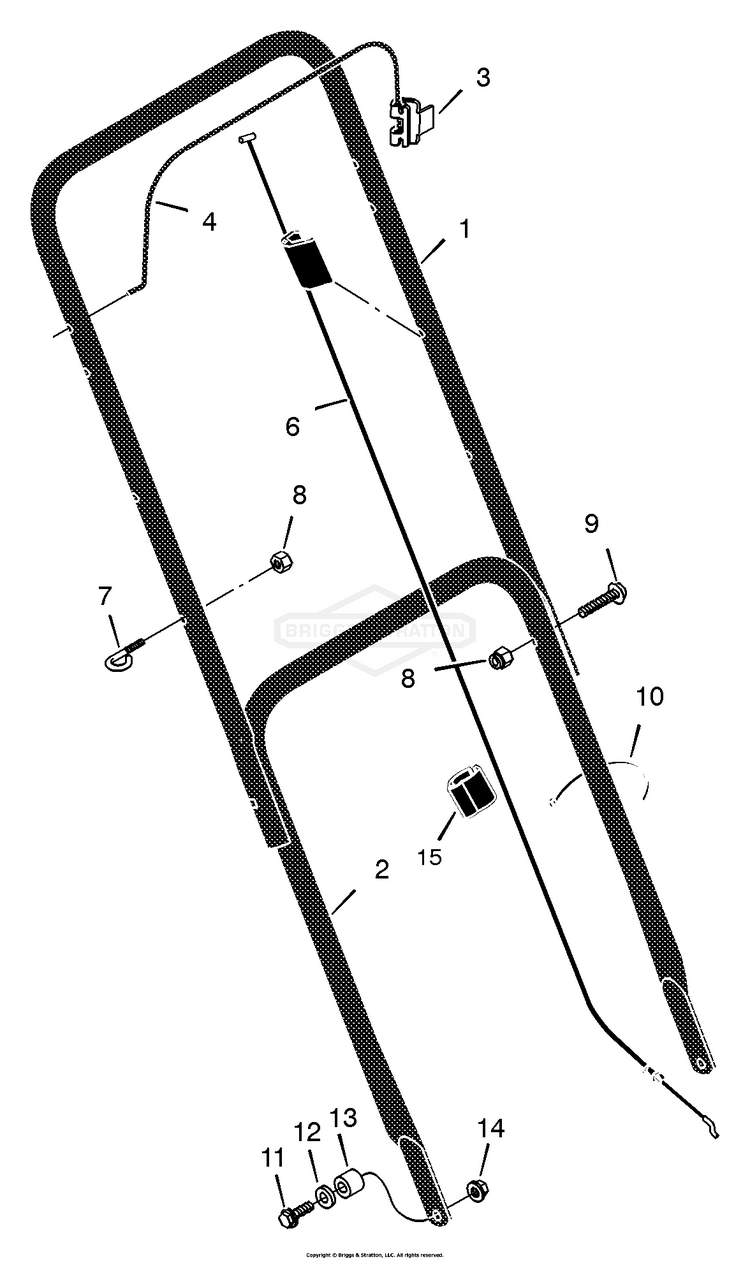

Handle Assembly

...
...
1
HANDLE, UPPER BS-7101741AYP
...
2
Handle, Lower (Black) BS-672874E701MA
...
3
Bracket, Stop Lever BS-1101454
...
4
LEVER, STOP 20RB PUSH BS-7101742AYP
...
6
Engine Stop Cable BS-1101093MA
...
7
GUIDE, ROPE BS-043956MA
...
8
NUT, 1/4-20, NYLOCK BS-703232
...
9
Screw BS-03X136MA
...
10
Fastener, Cable BS-032618MA
...
11
CAPSCREW,3/8-16X1.5 BS-703406
...
12
Washer BS-000845
...
13
Spacer BS-671914MA
...
14
NUT, CNTR LCK, 3/8-16 BS-703893
...
15
Clip, Cable BS-1101352

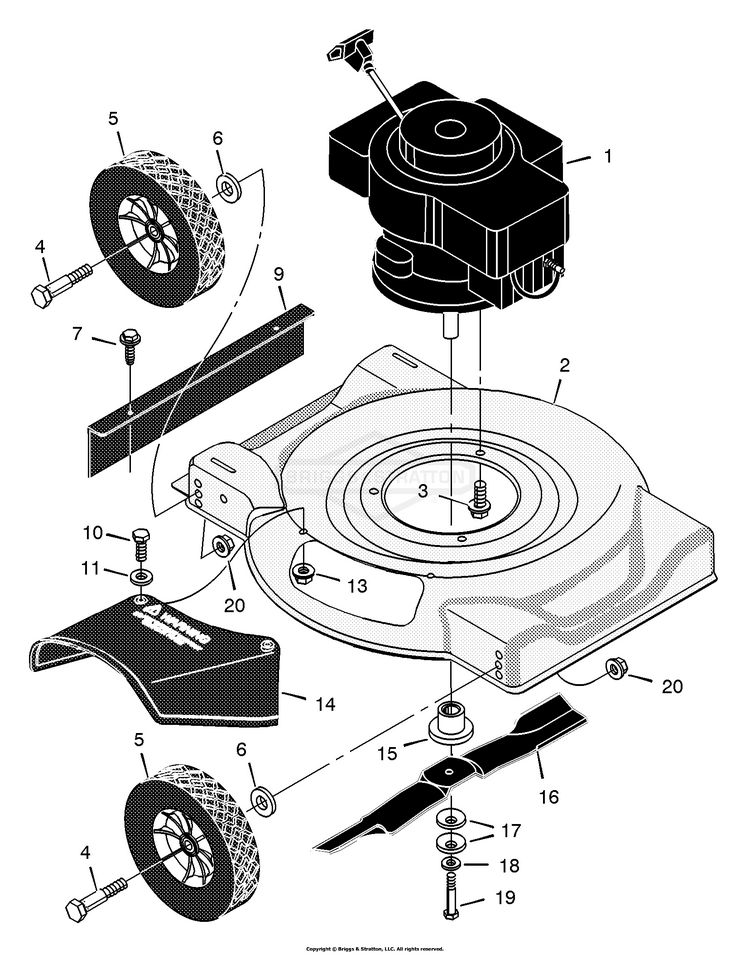

Mower Housing Assembly

...
...
2
Housing BS-7950007MA
...
3
Bolt, Engine BS-0025X6MA
...
4
Bolt, Axle BS-009X10MA
...
5
Tire & Rim BS-336546MA
...
6
Washer BS-000845
...
7
SCREW-#10X.5 B W/WAS BS-26X245MA
...
9
Deflector, Rear (Included with Ref. No. 2) BS-671912MA
...
10
Bolt BS-01X121
...
11
Washer BS-017X37 Z
...
13
NUT, 1/4-20, NYLOCK BS-703232
...
14
Deflector, Chute (Included with Ref. No. 2) BS-671929MA
...
15
Blade Adapter BS-071056MA
...
16
Blade - 20 BS-042785E701MA
...
17
Washer, Blade BS-17X137MA
...
18
Washer BS-17X124MA
...
19
Bolt BS-01X142MA
...
20
NUT, 3/8-16 BS-703333
...
--
Loose Parts Hardware Bag BS-672733MA
...
--
Warning, OPEI '98 (Included with Ref. No. 2) BS-48X405MA
...
--
Cut Finger (Included with Ref. No. 2) BS-44X6458
...
--
Warning, Install Chute (Included with Ref. No. 2) BS-44X7329MA
...
--
Book, Instruction BS-F-020403L
