20104x99A Murray - Walk-Behind (1998)

Model: 20104x99A

Back To Assemblies

Save Part Not Listed?

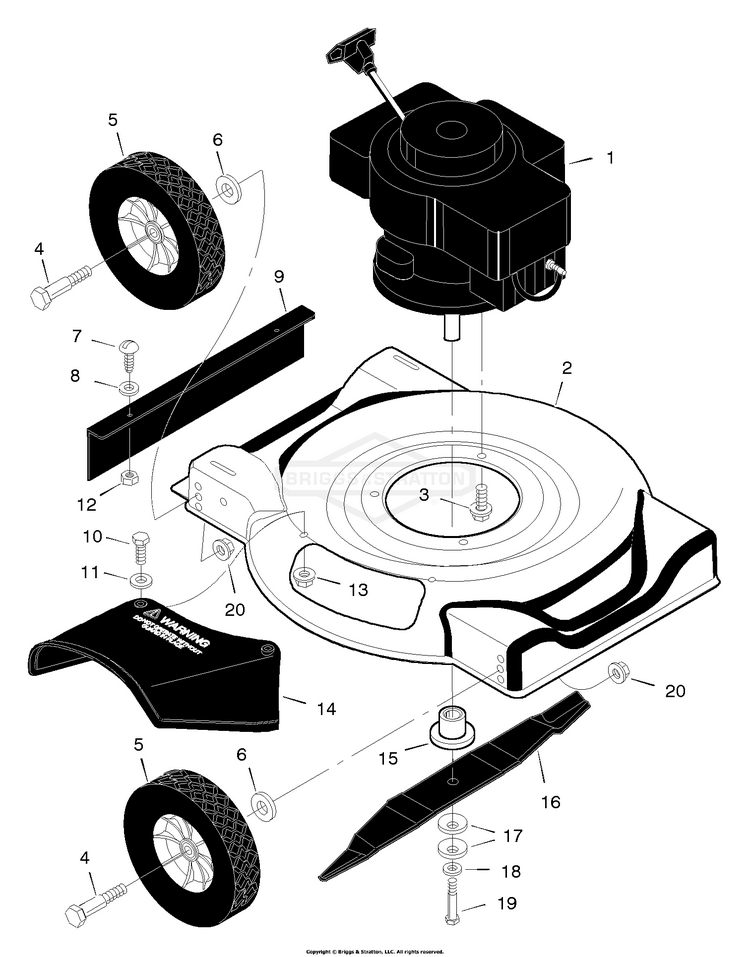

product name

Handle Assembly

...
...
2
Housing BS-776006
...
3
Bolt, Engine BS-0025X6MA
...
4
Bolt, Axle BS-009X10MA
...
5
Tire & Rim (Use only 7" diamond tread) BS-336546MA
...
6
Washer BS-010851 Z
...
7
Screw BS-004X21MA
...
8
Washer BS-17X382
...
9
Deflector, Rear BS-671912MA
...
10
Bolt BS-01X121
...
11
WASHER BS-703332
...
12
Nut BS-15X102MA
...
13
NUT, 1/4-20, NYLOCK BS-703232
...
14
Deflector, Chute BS-671929MA
...
15
Blade Adapter BS-071056MA
...
16
Blade - 20" BS-042785E701MA
...
17
Washer, Blade BS-17X137MA
...
18
Washer BS-17X124MA
...
19
Bolt BS-01X142MA
...
20
NUT, 3/8-16 BS-703333
...
--
Book, Instruction BS-F-98404
