20103x30B Murray - Walk-Behind Mower (2000)

Model: 20103x30B

Save Part Not Listed?
product name

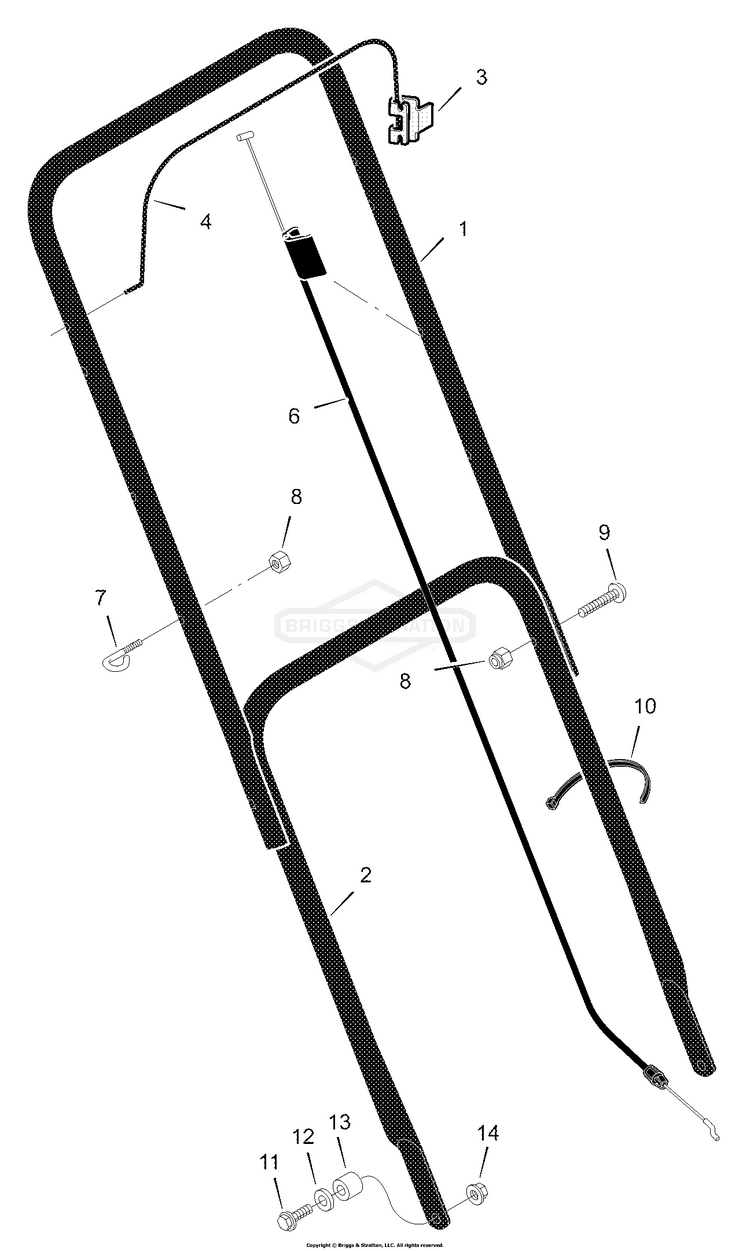

Handle Assembly

...
...
1
Handle, Upper BS-672913
...
2
Handle, Lower BS-671912MA
...
3
Bracket, Stop Lever BS-43628 BC
...
4
Lever, Stop BS-671924-844
...
6
Engine Stop Cable BS-672836
...
7
GUIDE, ROPE BS-043956MA
...
8
Locknut BS-710203
...
9
Screw BS-03X136MA
...
10
TIE,STRAP-REMOVABLE BS-071372MA
...
11
Bolt BS-710082
...
12
Washer BS-000845
...
13
Spacer BS-671914MA
...
14
Nut BS-710140

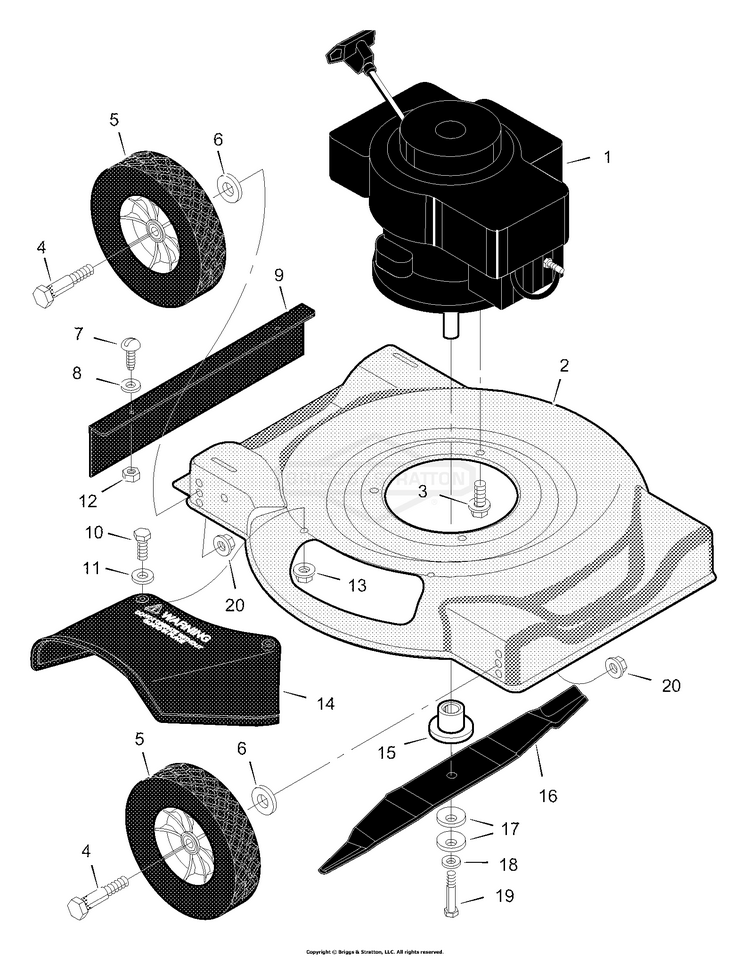

Mower Housing Assembly

...
...
2
Housing BS-7950007MA
...
3
Bolt, Engine BS-710265
...
4
Bolt, Axle BS-009X10MA
...
5
Tire & Rim BS-336546MA
...
6
Washer BS-996416
...
7
Screw BS-004X21MA
...
8
Washer BS-017X38 Z
...
9
Deflector, Rear BS-671912MA
...
10
Bolt BS-01X121
...
11
WASHER BS-703332
...
12
Nut BS-15X102MA
...
13
Locknut BS-710203
...
14
Deflector, Chute BS-671929MA
...
15
Blade Adapter BS-071056MA
...
16
Blade - 20" BS-042785E701MA
...
17
Washer, Blade BS-710210
...
18
Washer BS-710207
...
19
SCREW M6 BS-710074
...
20
Locknut BS-45171MA
...
--
Book, Instruction BS-F-000427M
