201030x78B Murray - Walk-Behind Mower (2005)

Model: 201030x78B

Save Part Not Listed?
product name

Popular Parts

Popular Parts

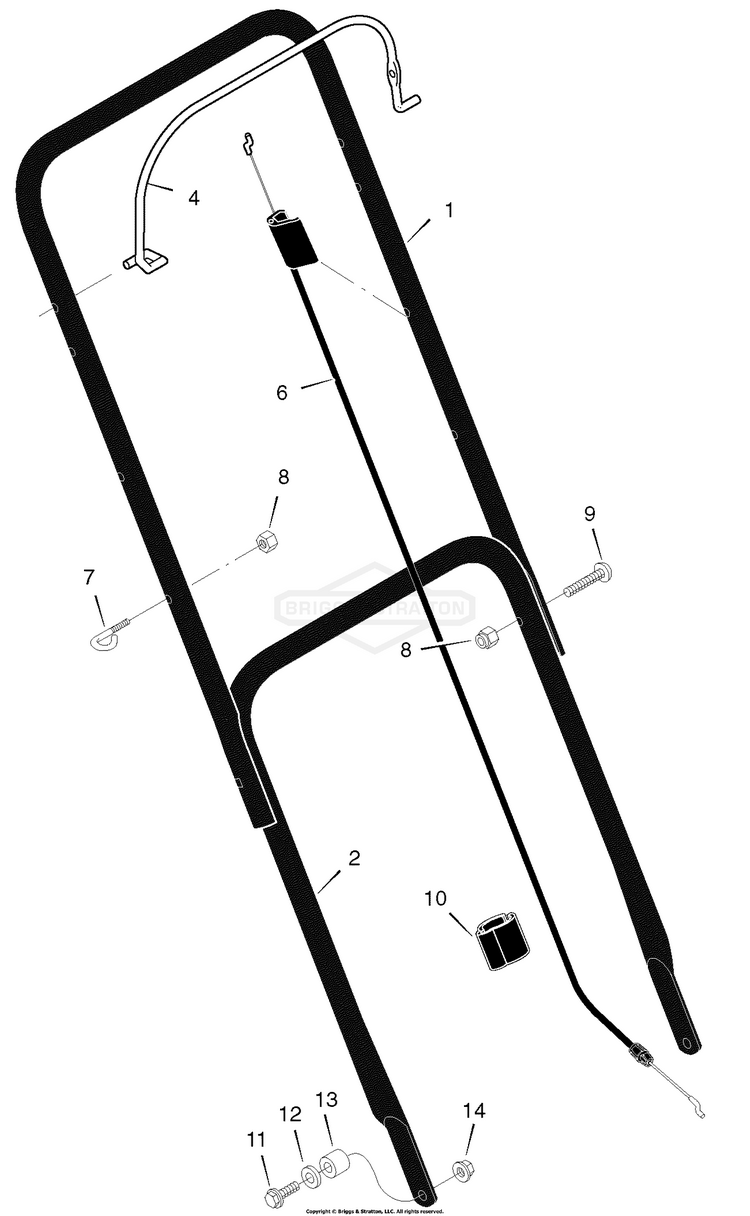

Handle & Bag Assembly

...
...
1
Handle, Upper (Black) BS-1102228E701
...
2
Handle, Lower (Black) BS-1102085E701
...
4
Lever, Stop BS-1101963E701
...
6
Engine Stop Cable BS-1102039
...
7
Guide, Rope BS-43956
...
8
Locknut BS-15X116
...
9
Screw BS-03X136
...
10
Clip, Cable BS-1101352
...
11
CAPSCREW,3/8-16X1.5 BS-703406
...
12
Washer BS-845
...
13
Spacer BS-671914
...
14
NUT, CNTR LCK, 3/8-16 BS-703893

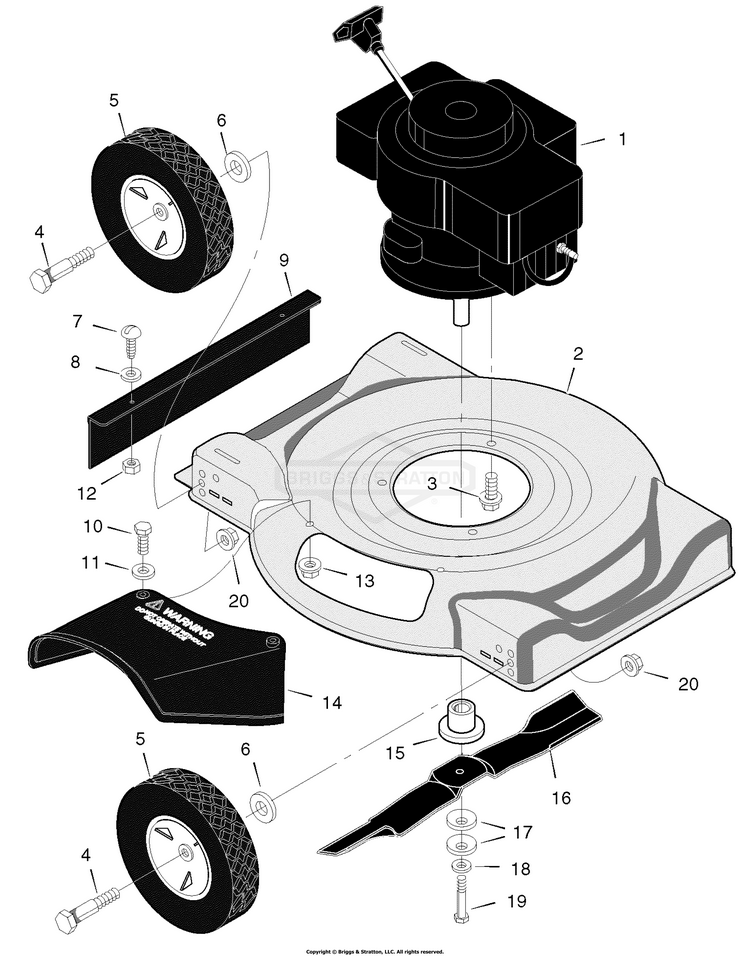

Mower Housing Assembly

...
...
2
Housing BS-7950007
...
3
Bolt, Engine BS-0025X6MA
...
4
Bolt, Axle BS-009X10
...
5
Wheel and Tire BS-20270
...
6
Washer BS-845
...
7
Screw BS-26X235
...
8
Washer BS-17X38 Z
...
9
Deflector, Rear BS-671912
...
10
Bolt BS-01X121
...
11
Washer BS-017X37
...
12
Nut BS-15X102
...
13
Locknut BS-15X116
...
14
Deflector, Chute BS-671929
...
15
Blade Adapter BS-71056
...
16
Blade 20" BS-042785E701
...
17
Washer, Blade BS-17X137
...
18
Washer BS-17X124
...
19
Bolt BS-1X142
...
20
NUT, 3/8-16 BS-703333
...
--
Book, Instruction BS-F-050450L
