201030x24A Murray - Walk-Behind Mower (2005)

Model: 201030x24A

Back To Assemblies

Save Part Not Listed?
product name

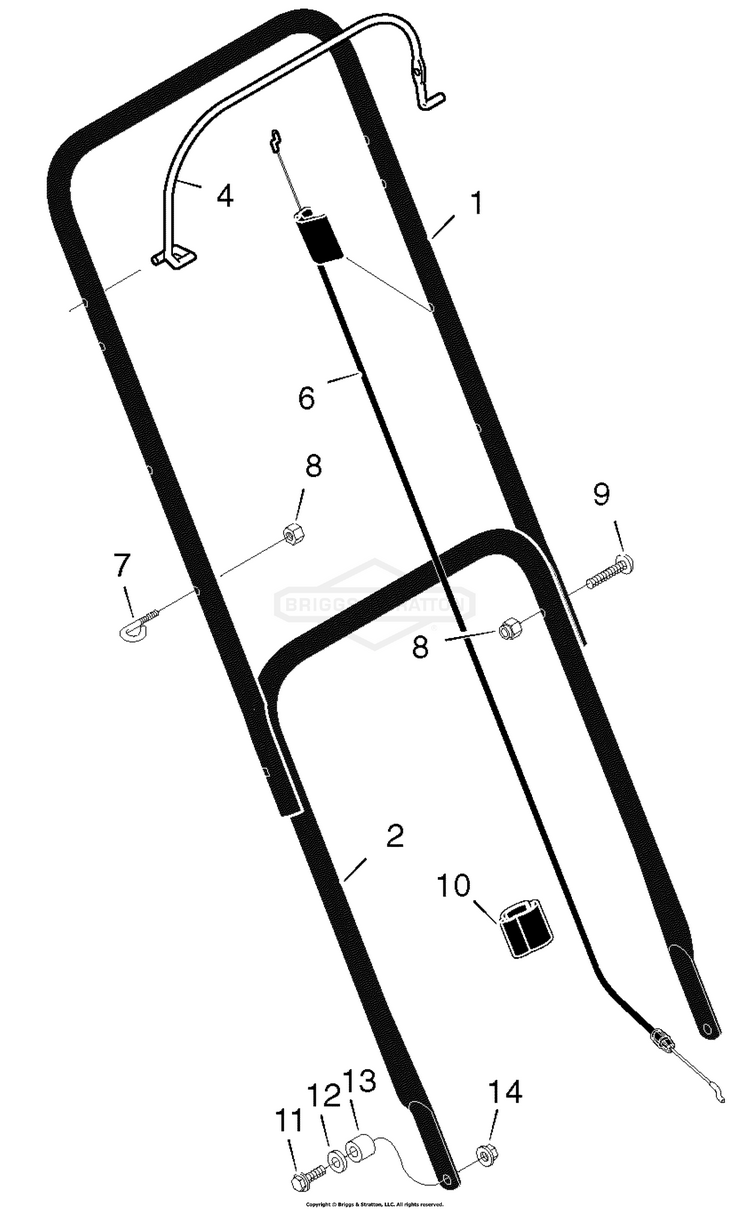

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1102228E701
...
2
Handle, Lower (Black) BS-1102085E701
...
4
Lever, Stop BS-1101963E701
...
6
Engine Stop Cable BS-1102039
...
7
Guide, Rope BS-43956
...
8
Locknut BS-15X116
...
9
Screw BS-03X136
...
10
Clip, Cable BS-1101352
...
11
CAPSCREW,3/8-16X1.5 BS-703406
...
12
Washer BS-845
...
13
Spacer BS-671914
...
14
NUT, CNTR LCK, 3/8-16 BS-703893
