201030x24A Murray - Walk-Behind Mower (2005)

Model: 201030x24A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

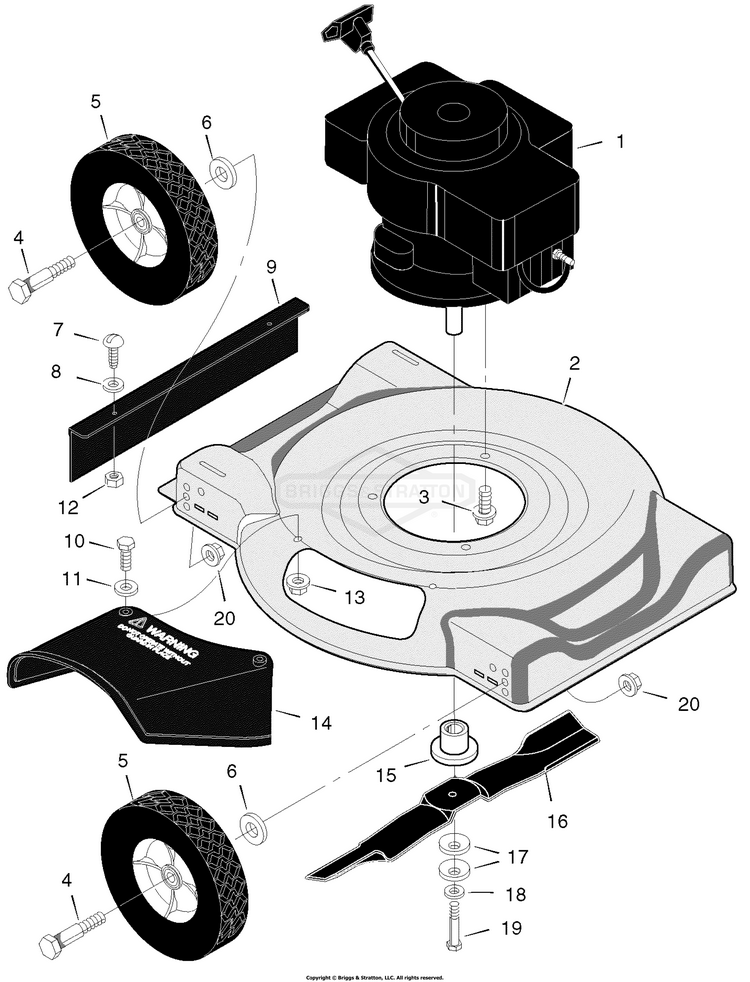

Mower Housing Assembly

...
...
2
Housing BS-7950007
...
3
Bolt, Engine BS-0025X6MA
...
4
Bolt, Axle BS-009X10
...
5
Wheel and Tire BS-20270
...
6
Washer BS-845
...
7
SCREW, Machine, 10-24 X 5/8 BS-004X21MA
...
8
Washer BS-017X38 Z
...
9
Deflector, Rear BS-671912
...
10
Bolt BS-01X121
...
11
Washer BS-017X37
...
12
Nut BS-15X102
...
13
Locknut BS-15X116
...
14
Deflector, Chute BS-671929
...
15
Blade Adapter BS-71056
...
16
Blade 20" BS-042785E701
...
17
Washer, Blade BS-17X137
...
18
Washer BS-17X124
...
19
Bolt BS-01X142
...
20
NUT, 3/8-16 BS-703333
...
?
Loose Parts Hardware Bag BS-672733
...
--
Book, Instruction BS-F-050406L
