201022x99A Murray - Walk-Behind Mower (2004)

Model: 201022x99A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

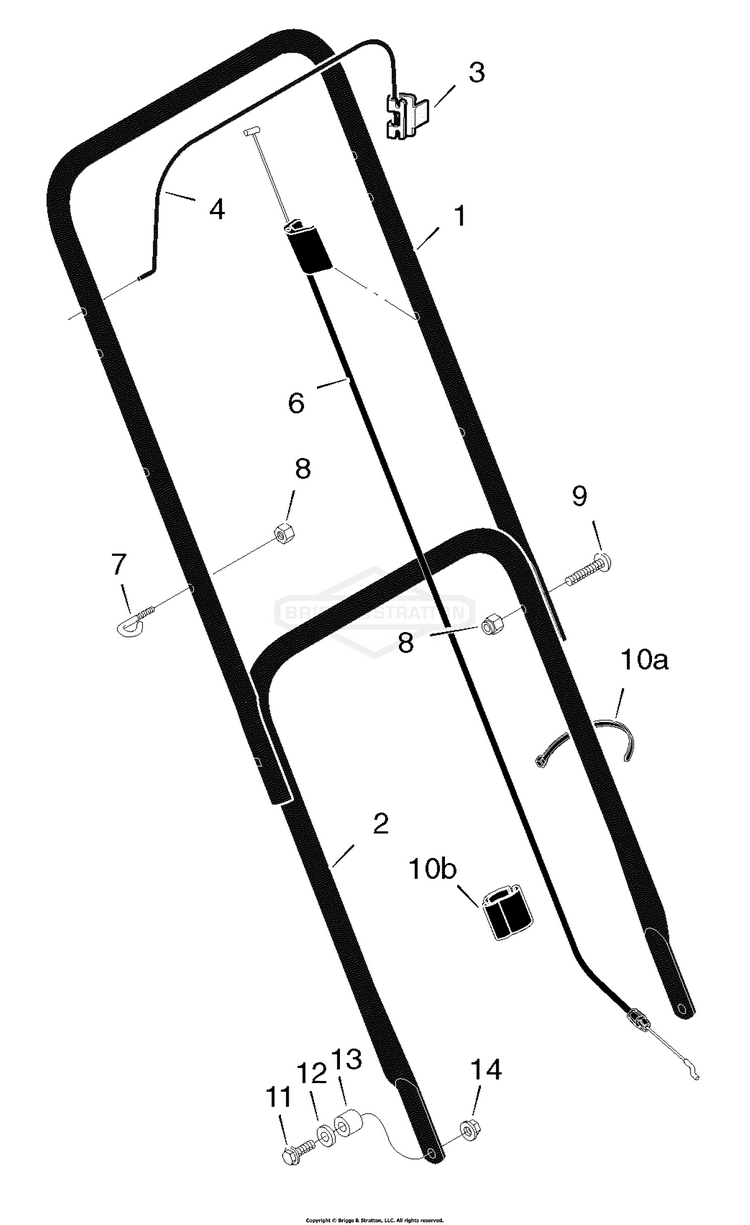

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101095E701
...
2
Handle, Lower (Black) BS-672874E701
...
3
Bracket, Stop Lever BS-1101454
...
4
Lever, Stop BS-671924E701
...
6
Engine Stop Cable BS-1101093
...
7
Guide, Rope BS-43956
...
8
Locknut BS-15X116
...
9
Screw BS-03X136
...
10a
Fastener, Cable BS-71372
...
10b
Clip, Cable BS-1101353
...
11
CAPSCREW,3/8-16X1.5 BS-703406
...
12
Washer BS-845
...
13
Spacer BS-671914
...
14
NUT, CNTR LCK, 3/8-16 BS-703893

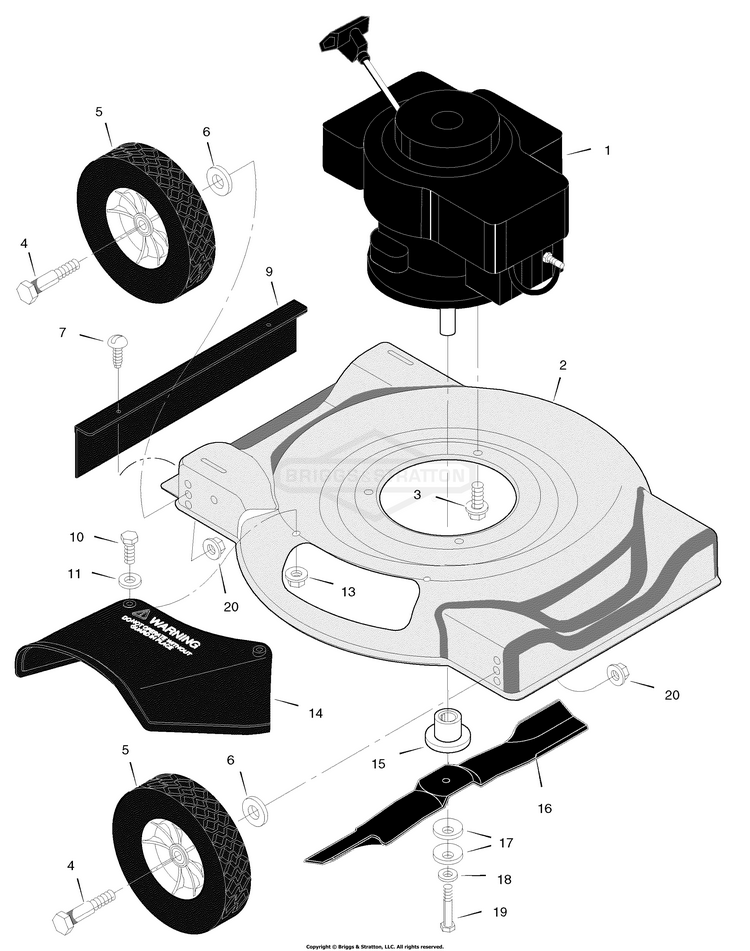

Mower Housing Assembly

...
...
2
Housing BS-7950007
...
3
Bolt, Engine BS-0025X6MA
...
4
Bolt, Axle BS-009X10
...
5
Wheel and Tire BS-20270
...
6
Washer BS-845
...
7
Screw BS-26X245
...
9
Deflector, Rear BS-671912
...
10
Bolt BS-01X121
...
11
Washer BS-017X37
...
13
Locknut BS-15X116
...
14
Deflector, Chute BS-671929
...
15
Blade Adapter BS-671056
...
16
Blade 20" BS-642785E701
...
17
Washer, Blade BS-17X137
...
18
Washer BS-17X124
...
19
Bolt BS-01X142
...
20
NUT, 3/8-16 BS-703333
...
?
Loose Parts Hardware Bag BS-672733
...
?
Decal, Cut Finger BS-44X6458
...
?
Decal, Warning Install Chute BS-44X7329
...
?
Decal, Warning BS-48X405
...
--
Book, Instruction BS-F-040406L
