201010x51A Murray - Walk-Behind Mower (2007)

Model: 201010x51A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

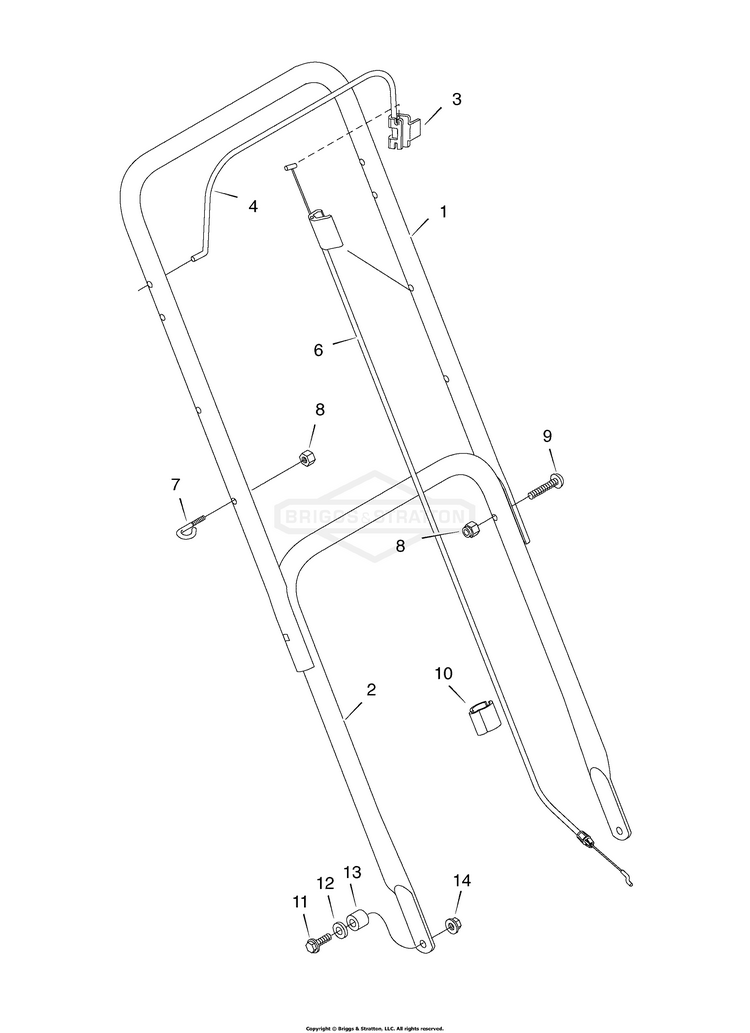

Handle Assembly

...
...
1
HANDLE, UPPER BS-7101741AYP
...
2
HANDLE, Lower (Gray) BS-1102085E701MA
...
3
BRACKET, Stop Lever BS-1101454E701MA
...
4
LEVER, Stop BS-1101963E701MA
...
6
CABLE, Engine Stop BS-1102093MA
...
7
GUIDE, Rope BS-043956MA
...
8
NUT, 1/4-20, NYLOCK BS-703232
...
9
SCREW BS-03X136MA
...
10
CLIP, Cable BS-1101352MA
...
11
CAPSCREW,3/8-16X1.5 BS-703406
...
12
Washer BS-17X168ZMA
...
13
SPACER BS-671914MA
...
14
NUT, CNTR LCK, 3/8-16 BS-703893
...
--
BAG, Loose Hardware BS-672733MA
