19T137-0012-H1 Briggs and Stratton Engine

Model: 19T137-0012-H1

Back To Assemblies

Save Part Not Listed?

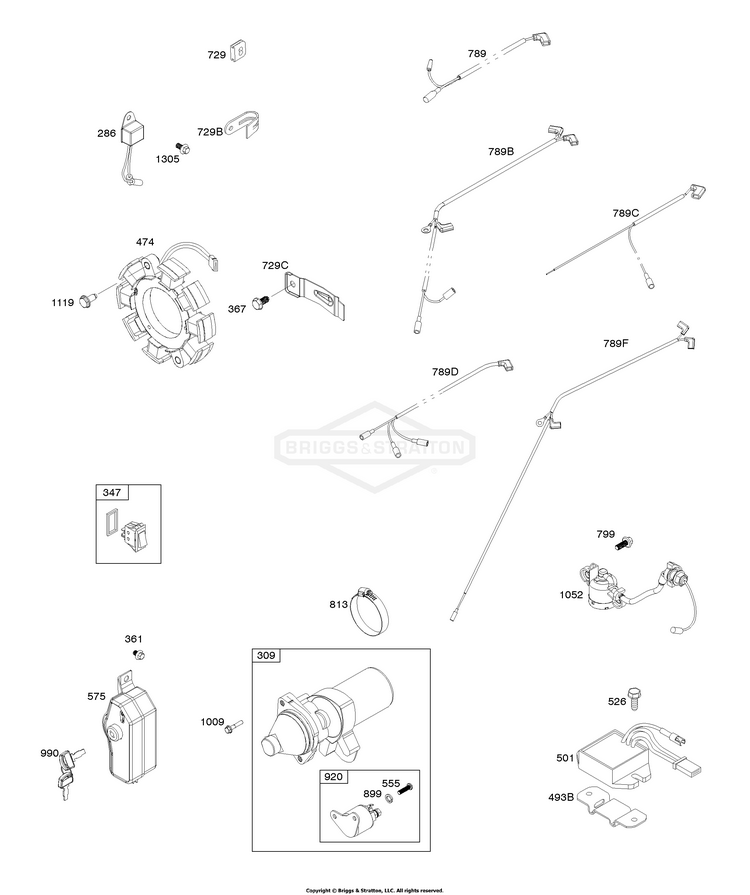

product name

Alternator, Electrical System, Ignition

...
...
286
MODULE, Oil Sensor BS-84004388
...
309
MOTOR, Starter BS-591780
...
347
SWITCH, Rocker BS-797340
...
361
SCREW (Starting Switch) BS-798618
...
367
SCREW (Wire Clip) BS-798618
...
474
ALTERNATOR BS-591100
...
493B
BRACKET, Mounting BS-691177
...
501
REGULATOR BS-845907
...
526
SCREW (Regulator) BS-690297
...
555
SCREW (Starter Solenoid) BS-799532
...
575
SWITCH, Starting BS-593734
...
729
CLIP, Wire BS-797750
...
729B
CLIP, Wire BS-592311
...
729C
CLIP, Wire BS-593137
...
789
HARNESS, Wiring BS-797856
...
799
SCREW (Oil Sensor) BS-798975
...
813
CLAMP BS-590392
...
899
WASHER (Starter Solenoid) BS-799642
...
920
SOLENOID, Starter BS-799481
...
990
SET, Key BS-590996
...
1009
SCREW (Starter Motor) BS-593136
...
1052
SENSOR, Oil BS-797771
...
1119
SCREW (Alternator) BS-799845
...
1305
SCREW (Oil Sensor Module) BS-798618
