19J137-0008-F1 Briggs and Stratton Engine

Model: 19J137-0008-F1

Back To Assemblies

Save Part Not Listed?
product name

Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Operator's Manual, Piston/Rings/Connecting Rod, Warning Label

...
...
1
CYLINDER ASSEMBLY BS-593663
...
3
SEAL, Oil (Magneto Side) BS-591794
...
12A
GASKET, Crankcase BS-592597
...
15
PLUG, Oil Drain BS-797793
...
16
CRANKSHAFT BS-593691
...
17
BEARING, Ball (Crankshaft) BS-591792
...
18C
COVER, CRANKCASE (Includes Governor Gear - Not Serviced Separately) BS-84004361
...
20
SEAL, Oil (PTO Side) (PTO Side) BS-591793
...
22
SCREW (Crankcase Cover/Sump) BS-797776
...
22A
SCREW (Crankcase Cover/Sump) BS-593107
...
24
KEY, Flywheel BS-797286
...
25
PISTON ASSEMBLY (Standard) BS-592613
...
25
PISTON ASSEMBLY (.020" Oversize) BS-593109
...
25
PISTON ASSEMBLY (.010" Oversize) BS-593108
...
26
SET, Ring (.020" Oversize) BS-593111
...
26
SET, Ring (Standard) BS-592614
...
26
SET, Ring (.010" Oversize) BS-593110
...
27
LOCK, Piston Pin BS-592044
...
28
PIN, Piston BS-592045
...
29
ROD, Connecting BS-592046
...
45
TAPPET, Valve BS-797786
...
46
CAMSHAFT BS-592617
...
227
LEVER, Governor Control BS-592616
...
287
SCREW (Dipstick Tube) BS-798618
...
306B
SHIELD, Cylinder BS-593680
...
307
SCREW (Cylinder Shield) BS-798618
...
505
NUT (Governor Control Lever) BS-690939
...
512
HOSE, Oil Drain BS-591863
...
522
PLUG, Dipstick/Fill BS-84004387
...
562
BOLT (Governor Control Lever) BS-797230
...
614
PIN, Cotter BS-797229
...
616
CRANK, Governor BS-592615
...
631
WASHER (Oil Drain Plug) BS-797794
...
718
PIN, Locating (Cylinder Head) BS-797792
...
718A
PIN, Locating (Crankcase Cover) BS-797761
...
729
CLIP, Wire BS-797750
...
842
SEAL, O-Ring (Dipstick Tube) BS-84004385
...
847
DIPSTICK/TUBE ASSEMBLY BS-593174
...
1026
ROD, Push BS-591818
...
1319
LABEL, Warning BS-794467
...
1319A
LABEL, Warning BS-797669

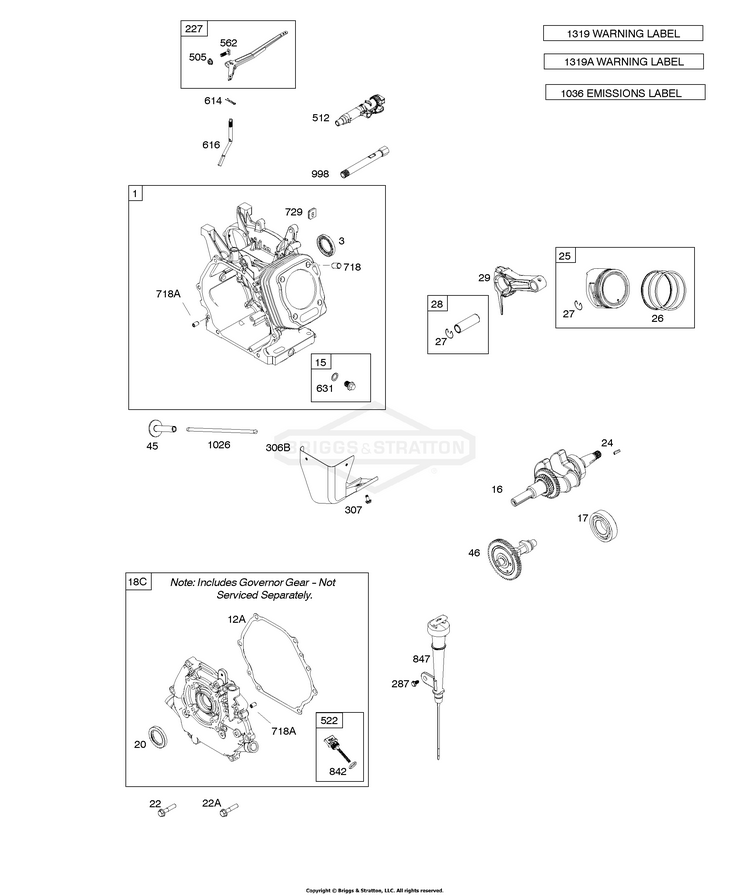

Schematic Image Zoomed
