Columbia 19A70052OEM 34-Inch Twin Rear Bagger (2017) Attachment

Model: 19A70052OEM 34-Inch Bagger (2017)

Save
 Don't See Your Part Listed?
product name

Bag Support

...
...
1
VERTICAL SUPPORT BRACKET MTD-683-04519B-0637
...
2
TWIN BAGGER UPPER BAG SUPPORT MTD-683-05329-0637
...
3
END PLUG MTD-735-0246A

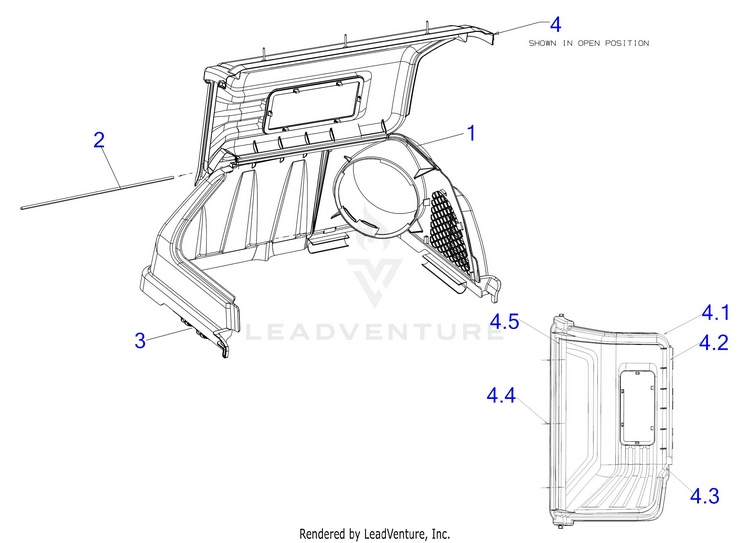

Bagger Assembly

...
...
1
BAGGER VENT WALL ASSEMBLY MTD-631-05491A
...
1
LABEL - BAGGER SAFETY (Not Shown) MTD-777S35836
...
2
BAGGER HOOD HINGE PIN MTD-711-06701
...
3
BAGGER SUPPORT COVER (LH) MTD-731-12350B
...
4
BAGGER HOOD ASSEMBLY MTD-931-05474B
...
4
BAGGER SIGHT WINDOW (Not Shown) MTD-731-12349
...
4.1
TWIN BAGGER COVER W/ WINDOW MTD-NA
...
4.2
TRIM LOCK SEAL 17.4" MTD-720-05151A
...
4.3
TRIM LOCK SEAL 21.5" MTD-720-05152
...
4.4
RIVOT MTD-NA
...
4.5
STIFFENER BRACKET MTD-764-05092-0637

Boot

...
...
1
34" LOWER BOOT ASSEMBLY MTD-931-05438
...
1.1
SCREW 1/4-20X.75 GR5 MTD-710-3015
...
1.2
FLANGE LOCK NUT MTD-712-04064
...
1.3
DISCHARGE CHUTE (Order Complete Assembly) MTD-NA
...
1.4
SPRING WASHER BELL MTD-736-0270
...
1.5
MULCH PLUG MOUTING ROD MTD-747-06317A

Grass Bag

...
...
xx
GRASSBAG ASSEMBLY W/ HARD BOTTOM (STD) MTD-964-05104

Hood

...
...
1
BAGGER HOOD ASSEMBLY MTD-931-05474B
...
1
BAGGER SIGHT WINDOW MTD-731-12349
...
2
TRIM LOCK SEAL 17.4" MTD-720-05151A
...
3
TRIM LOCK SEAL 21.5" MTD-720-05152
...
4
RIVOT MTD-NA
...
5
STIFFENER BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-764-05092

Hose

...
...
1
BAGGER FLEX HOSE RING MTD-731-12353A
...
2
BAGGER FLEX HOSE MTD-764-05082

Mount

...
...
1
HARDWARE PACK BAGGER MOUNTING MTD-689-00567
...
1.1
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
1.2
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
1.3
SCREW 5/16-18 MTD-710-04043
...
1.4
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
1.5
WING KNOB 5/16-18 MTD-720-04122
...
2.1
BAGGER MOUNTING BRACKET (LH) (POWDER BLACK) *CHOOSE COLOR WHEN ORDERING* MTD-703-10951-0637
...
2.2
BAGGER MOUNTING BRACKET (RH) (POWDER BLACK) *CHOOSE COLOR WHEN ORDERING* MTD-703-10952-0637
...
2.3
WEIGHT MOUNTING BRPOWDER BLACK *CHOOSE COLOR WHEN ORDERING* MTD-703-11046-0637
...
2.4
WEIGHT MOUNTING BRPOWDER BLACK *CHOOSE COLOR WHEN ORDERING* MTD-703-11112-0637
...
2.5
SUPPORT PLATE MTD-783-06168-0637

Weight

...
...
1
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
2
SCREW 3/8-16 x .875 GR5 MTD-710-04482
...
3
SCREW 5/16-18 x 1.00 GR5 MTD-710-0643
...
4
HEX SCREW-3/8-16X2.5 GR5 MTD-710-0859
...
5
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
6
FLANGE LOCK NUT MTD-712-04217
...
7
U-Nut 5/16-18 Thd. MTD-726-0211
...
8
Fl-Wash. .51" I.D. x 1.50" MTD-736-0208
...
9
BAGGER WEIGHT MTD-719-04271A
...
xx
HARDWARE PACK FOR CRZT WEIGHT (Incl. Ref # 1-8) MTD-689-00569
...
...
...
...
