Columbia 19A40024OEM 42-Inch 3x Snow Thrower (2015) Attachment

Model: 19A40024OEM 42-Inch 3x Snow Thrower (2015)

Save
 Don't See Your Part Listed?
product name

Chute Control Assembly

...
...
1
Assembly, Chute Tilt Bracket MTD-603-0302A-0637
...
2
Control Assembly MTD-611-05064
...
3
Bracket Assembly MTD-684-05094-0637
...
4
Screw, Carriage, 5/16-18, 2.00, Gr5 MTD-710-0487
...
5
Bolt, Eye, 5/16-18 x 3.25 MTD-710-05050
...
6
Nut, Flange Lock, 5/16-18, Grf, Nylon MTD-712-04063
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
Hairpin Cotter MTD-714-0101
...
9
Pin, Roll, 1/8 OD, .63 MTD-915-0138
...
10
Pin, Spg, .156 Dia x .875 Lg MTD-715-04095
...
11
Grip, Handle, 3/8 MTD-720-04049A
...
12
Knob, .390 ID MTD-720-04102
...
13
Cable, Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
14
Push Cap 3/8" Rod MTD-726-0100
...
15
Plug, But, 1.250 Thin Wall MTD-731-07580
...
16
Guide, Cable, Chute Tilt MTD-731-1313C
...
17
Flat Washer .375 ID x .738 OD MTD-736-0185
...
18
FLAT WASHER MTD-736-0275
...
19
Saddle Wash. .32" I.D. MTD-736-0451
...
20
Bearing, Flange, Snap .385 ID MTD-941-0475
...
21
Cable, 74.5 Lg MTD-946-04332A
...
22
Crank, Chute, .375 Dia x 34.63 MTD-747-06436
...
23
Handle, Bracket, Chute Tilt MTD-790-00650-0637
...
24
Nut, Flange Lock, 3/8-16, Grf, Nylon MTD-712-04065

Frame Assembly

...
...
1
Bracket Assembly, Supt, Spndl MTD-603-05172-0637
...
2
Bracket Assembly, Frm, RH MTD-684-05080-0637
...
3
Bracket Assembly, Frm, LH MTD-684-05081-0637
...
4
Bolt, Shoulder, Hex Hd MTD-710-05023
...
5
SCREW 5/8-18X3.0 GR5 MTD-710-0923
...
6
Hex Screw, 5/16-24, .875, Gr8, Lock MTD-710-1245B
...
7
Screw, Self-tapping, 1/4-20 x .625 MTD-710-1652
...
8
Hex Screw, 3/8-16, .880, Gr5, Std MTD-710-3001
...
9
Shaft, Supt, Mule Idler MTD-711-06298
...
10
Shaft, .375Od x 12.3450 Lg MTD-711-06303
...
11
Nut, Flange Lock, 1/4-20, Grf, Nylon MTD-712-04064
...
12
Nut, Flange Lock, 3/8-16, Grf, Nylon MTD-712-04065
...
13
Pin, Cotter, Bow-Tie 91 MTD-714-04043
...
14
Ring, Ret, Int MTD-916-3020
...
15
Cover, Belt MTD-931-10414
...
16
Spring, Extension, 1.6 OD x 7.584 Lg MTD-732-05205
...
17
Washer, Flat, .65 x 1.25 x .075 MTD-736-0237
...
18
Washer, Flat, .34 x 1.50 x .150 MTD-736-0505
...
19
Bearing, Ball, .625 x 40 x 12 MTD-941-0524A
...
20
Pulley, Adapter, .75 Dia w/ Pins MTD-748-04067A
...
21
Spacer, .65 ID x .96 OD x 2.31 MTD-750-06246
...
22
Spacer, .88 OD x .635 ID x 1.105 MTD-750-06251
...
23
Belt, V-type, Bsec, 138.4 MTD-954-05062
...
24
Belt, V-type, Bsec x 39.988 MTD-954-05063
...
25
Pulley, Double, 6.663/5.205 Dia MTD-756-05079
...
26
Pulley, V-Type, 7.25 Dia MTD-756-05082
...
27
Pulley, Idler, 5.06 Dia MTD-756-05084

General Assembly

...
...
1
Housing, Bearing, 1.85 ID MTD-05931A
...
2
Gearbox Assembly, Auger, 42" MTD-918-07032
...
3
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
3
Cleanout Tool MTD-931-2643
...
4
Spiral Assembly, LH MTD-684-04163A-0637
...
5
Sipral Assembly, RH MTD-684-04164A-0637
...
6
ACCELERATOR AUGER W/BUSHNG (POWDER BLACK) MTD-684-05015C-0637
...
7
42" AUGER HOUSING KIT MTD-753-10384
...
8
Impeller Assembly, 12" Dia MTD-684-05075-0637
...
9
Bolt, Carriage, 5/16-18, .62, Gr5 MTD-710-0260A
...
10
Screw, Carriage, 5/16-18, 1.00 MTD-710-0276
...
11
Hex Screw, 5/16-18, 1.00, Gr5, Std MTD-710-0376
...
12
SCREW 5/16-18 x .750 MTD-710-04484
...
13
Bolt, Carriage, 5/16-18, .750 MTD-710-0451
...
14
Screw, Self-tapping, 5/16-18, .500 MTD-710-0607
...
15
Screw, Carriage, 3/8-16, 1.75, Gr5 MTD-710-0560
...
16
Hex Screw, 3/8-16, 2.00, Gr5, Std MTD-710-3144
...
17
Nut, Flange Lock, 5/16-18, Nylon MTD-712-04063
...
18
Nut, Flange Lock, 3/8-16, Grf, Nylon MTD-712-04065
...
19
Nut, Flange Lock, 3/8-16, Grf MTD-712-04217
...
20
Pin, Cotter, bow-Tie MTD-714-04040
...
21
Spring Pin 1.5" Lg. MTD-715-0114
...
22
"E" - Ring MTD-716-0231
...
23
Spacer, 1.25Od x .75Id x 1.00 Lg MTD-731-04870
...
24
CAP MTD-731-08637A
...
25
Spacer, 1.25 OD x .75 ID x 7.805 Lg MTD-731-09558
...
26
Sleeve, .758 X 1.00 x .555 MTD-731-10404
...
27
Washer, Flat, .76 x 1.49 x .06, Ht MTD-736-0188
...
28
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
29
Washer, Flat, .793 x 1.24 x .060 MTD-736-0287
...
30
Washer, Flat, .75 x 1.13 x .10 MTD-736-04624
...
31
Washer, Flat, .406 x 1.92 x .060 MTD-736-3040
...
32
Chute, Flange Keeper MTD-790-00659
...
33
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
34
Pin, Shear, .25X1.50, Gr2 MTD-738-04124A
...
35
Spacer, Shoulder, .8840 x .190 MTD-738-04162C
...
36
Screw, Shoulder, .5 x .875 x 3/18-16 MTD-738-04518
...
37
Bearing, Ball, .75 ID x 1.85 OD MTD-941-0309
...
38
FLANGE BUSHING MTD-741-0493C
...
39
Bearing, Hex Flange x .75 ID MTD-741-05041
...
40
Spacer, .766 ID x 1.25 OD x .415 MTD-750-05218
...
41
Spacer, .385Id x 1.75 OD x .585 MTD-750-06184
...
42
Spacer, .76Id x 1.25 OD x 1.81 Lg MTD-750-06261
...
43
Pulley, Idler, 3.50 Dia. MTD-756-0627D
...
44
Bracket, Skid Plate, 42" MTD-784-0396C-0637
...
45
Slide Shoe MTD-784-5038B-0637
...
46
Housing, Bearing, 1.1605" Hex MTD-790-00534-0637
...
47
Bracket, Idler, Pivot MTD-790-00636-0637
...
48
Housing, Auger, 500 MTD-919-05029
...
49
Screw, Self-tapping, 1/4-20, 0.75 MTD-710-0642
...
50
Axle, Auger, .75 OD x 41.62 Lg MTD-711-06278
...
51
Key, Hi-Pro 3/16 x 5/8 MTD-914-0161
...
52
Pin, Roll, .25 x 1.00 MTD-715-04034
...
53
Ring, Retaining MTD-716-05001
...
54
Gear, Worm, 20T MTD-917-04861
...
55
Shaft, Worm .75 OD MTD-917-05236
...
56
Seal, .75 x 40Mm x .25 MTD-721-04612
...
57
Seal, .75 x 1.375 x .25 MTD-721-04613
...
58
Gskt, Cover, Gearbox MTD-921-04614A
...
59
CABLE BRACKET GUIDE (POWDER BLACK) MTD-790-00565A-0637
...
60
Bearing, Ball, .750X40x12 MTD-941-05042
...
61
Cover, Gearbox, 500 MTD-783-08281
...
62
GEARBOX SUPPORT BRACKET (POWDER BLACK) MTD-790-00835-0637
...
62
CHUTE CRANK ASSEMBLY MTD-684-0061A
...
63
Chute Assembly, Steel 5.0" MTD-684-05072-0637
...
64
Bracket, Chute, Crank MTD-703-2735A-0637
...
65
Reinforcment, Chute, 5.0 MTD-705-5226-0637
...
66
Bolt, Carriage, 5/16-18, 1.50, Gr2 MTD-710-0262
...
67
Screw, Carriage, Spl, 5/16-18, 1.00 MTD-710-0276
...
68
Screw, Carriage, 1/4-20, .75, Gr5 MTD-710-0703
...
69
Screw, 1/4-15, 0.750, Hxindwsh MTD-710-0895
...
70
Chute, Upper MTD-790-00529-0637
...
71
Nut, Flange Lock, 1/4-20, Grf, Nylon MTD-712-04064
...
72
Knob, Wing, 5/16-18 MTD-720-0284
...
73
Guide, Cable, Chute Tilt 1.05" MTD-731-09535
...
74
Adapter, Chute, Upper MTD-731-09539A
...
75
Ring, Chute, 5" MTD-731-10348
...
76
Chute, Adapter 5" Dia MTD-731-1379D
...
77
Fl-Wash. .344" I.D. MTD-736-0159
...
78
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
79
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
80
Bearing, Flange, Snap .385 ID MTD-941-0475
...
81
Bracket, Chute Crank MTD-784-5647-0637

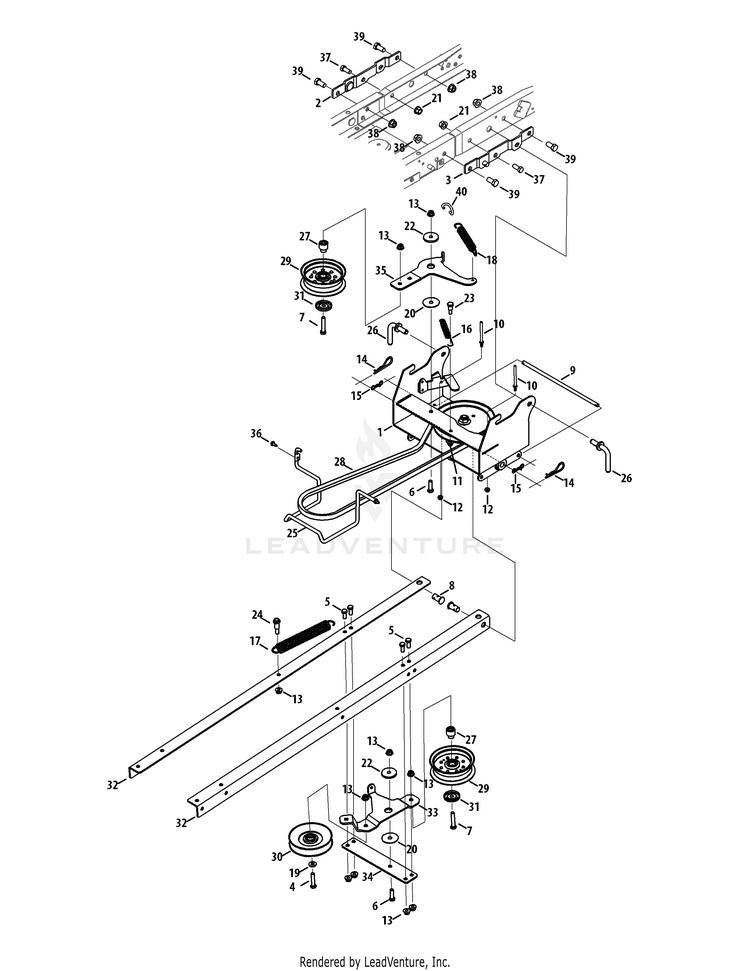

Idler Assembly

...
...
1
SPINDLE ASSEMBLY Components Only - See Separate<BR/> Breakdown MTD-NA
...
2
HANGER BRACKET (RH) MTD-684Z05077
...
3
HANGER BRACKET (LH) MTD-684Z05078
...
4
Hex Screw, 3/8-16, 1.75, Gr5, Std MTD-710-0347
...
5
Hex Screw, 3/8-16, .880, Gr5, Std MTD-710-3001
...
6
Hex Screw, 3/8-16, 1.25, Gr5, Std MTD-710-3005
...
7
Hex Screw, 3/8-16, 2.00, Gr5, Std MTD-710-3144
...
8
Pin, Clevis, .62 Dia. MTD-711-0309A
...
9
Shaft, .375Od x 12.3450 Lg MTD-711-06303
...
10
Keeper, Belt, .25 Dia x 3.0 MTD-911-1000
...
11
Nut, Flange Lock, 5/16-18, Grf, Nylon MTD-712-04063
...
12
Nut, Flange Lock, 1/4-20, Grf, Nylon MTD-712-04064
...
13
Nut, Flange Lock, 3/8-16, Grf, Nylon MTD-712-04065
...
14
Pin, Cotter, Int, .148 x 3.00 MTD-714-0117
...
15
Pin, Cotter, Bow-Tie 91 MTD-714-04043
...
16
Spring, Extension, .53 Dia x 4.75 Lg MTD-932-0470A
...
17
Spring, Extension, 1.25 OD x 8.5 Lg. MTD-732-04927
...
18
SPRING KIT-IDLER MTD-759-05087
...
19
Washer, Flat, .385 x .870 x .092 MTD-736-0262
...
20
Washer, Thrust, .445 x 1.92 x .060 MTD-736-0518
...
21
Nut, Flange Lock, 1/2-13, Grf, Nylon MTD-712-04150
...
22
Spacer, Shoulder, .8840 x .190 MTD-738-04162C
...
23
Screw, Shoulder, .437 Dia. x .54 MTD-738-0754
...
24
Bolt, Shoulder, .50 x .925, 3/8-16 MTD-738-0966A
...
25
Rod, Keeper, Engine Pulley MTD-747-06399
...
26
Rod, Lock, .500 MTD-747-06429
...
27
SHOULDER SPACER MTD-748-05037B
...
28
V-BELT B SEC x 68.45 MTD-954-05061A
...
29
IDLER PULLEY 4.50" DIA MTD-756-05034A
...
30
Pulley, Idler, 5.06 Dia MTD-956-3045A
...
31
Cap, Pulley, Hd MTD-783-08389
...
32
Bracket, Link MTD-790-00617-0637
...
33
Bracket, Idler, Pivot MTD-790-00629-0637
...
34
Bracket MTD-790-00630-0637
...
35
Bracket, Idler, Pivot MTD-790-00634A-0637
...
36
Screw, M6-1 x .625" MTD-710-06133
...
37
Hex Screw, 7/16-14, 1.00, Gr5, Std MTD-710-0505
...
38
Nut, Flange Lock, 7/16-14 MTD-712-04337
...
39
Hex Screw, 1/2-13, 1.00, Gr5, Std MTD-710-3131
...
40
Hook, Rod, Spring MTD-747-06513

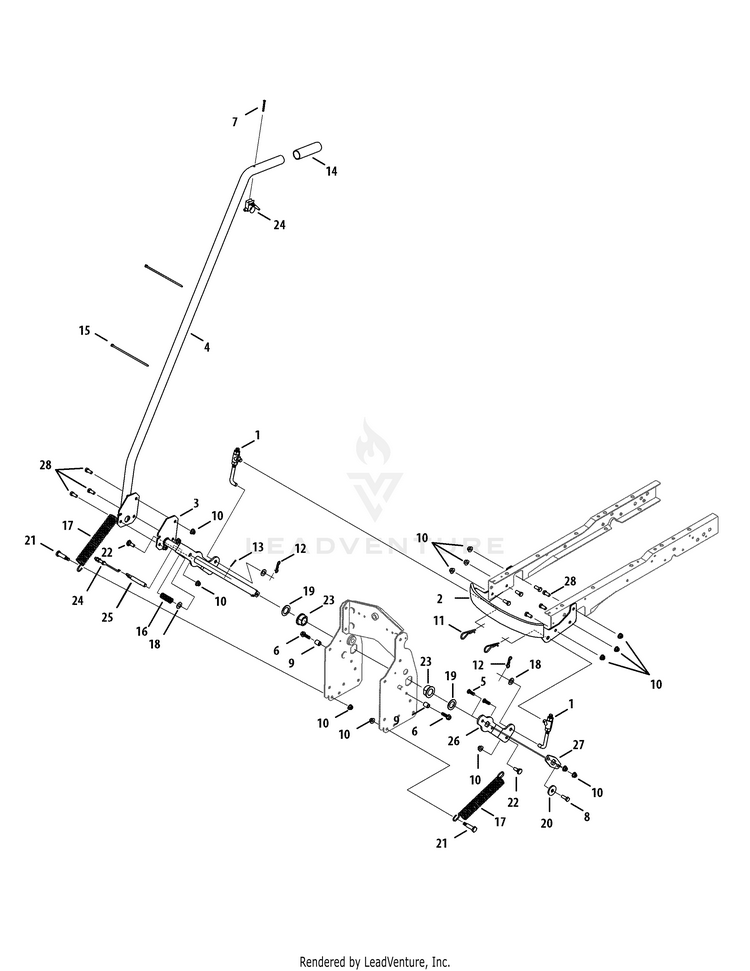

Lift Assembly

...
...
1
Ferrule, .510 x .496 MTD-711-06143A
...
1
Hex Nut, 1/2-13 MTD-712-05046
...
1
Lift Link MTD-747-06384
...
2
Bumper Assembly MTD-683-05156-0637
...
3
Shft Assembly, Lift MTD-684-05084
...
4
Handle Assembly, Lift MTD-684-05085-0637
...
5
Hex Screw, 3/8-16, 1.00, Gr5 MTD-710-04095
...
6
Screw, Self-tapping, 3/8-16, 1.25 MTD-710-1315
...
7
Screw, Oval, #10-24 x 1.75 MTD-710-1625
...
8
Hex Screw, 3/8-16, 1.00, Gr5, Lock MTD-710-3118
...
9
Spacer, .385 x .623 x .750 Lg MTD-711-0396
...
10
Nut, Flange Lock, 3/8-16, Grf, Nylon MTD-712-04065
...
11
Pin, Cotter, Int, .148 x 3.00 MTD-714-0117
...
12
Pin, Bow, 7/16"-1/2" MTD-714-05005
...
13
Pin, Cotter, 3/32 x 1.25 MTD-714-3004
...
14
Grip, 1.188 ID x 4.562 Lg. MTD-720-04083
...
15
Cable, Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
16
Spring, Comp, .772 OD x 1.95 Lg MTD-732-05216
...
17
Spring Extension, 1.45 OD x 6.00 MTD-732-05231
...
18
FLAT WASHER .510 x .995 MTD-736-0272
...
19
Washer, Flat, 1.031 X1.620 x.095 MTD-736-0277
...
20
Washer, Flat, .45 x 1.5 x .172, Ht MTD-736-3082A
...
21
Screw, Shoulder, .498 Dia. x 1.445 MTD-738-0213
...
22
Shoulder Screw MTD-738-0380
...
23
Bearing, Flange w/ Flats MTD-941-0170
...
24
Cable, Snowblower Lift MTD-946-05201
...
25
LIFT LOCK ROD MTD-747-06383A
...
26
Bracket, Lift MTD-790-00649
...
27
Adapter, Lift, Link MTD-790-00657
...
28
SCREW 3/8-16 x .880 GR5 MTD-710-3001

Spindle & Bracket Assembly

...
...
1
SPINDLE HOUSING ASSEMBLY MTD-918-07070
...
1
BALL BEARING (Not Shown) MTD-941-0919B
...
1
SPACER .800 x 1.100 x 1.5300 LG (Not Shown) MTD-750-1096
...
2
SPINDLE MOUNTING BRACKET (POWDER BLACK) MTD-684-05082A-0637
...
3
SCREW 5/16-18 x .750 MTD-710-1260A
...
4
HEX NUT MTD-712-0417A
...
5
BLADE SPINDLE SHAFT 4.125 LG MTD-738-0976
...
6
V-PULLEY 7.25 DIA MTD-756-05080
...
7
V-PULLEY 5.57 DIA MTD-756-05081
...
...
...
...
