1959-0 Briggs and Stratton Generator BSQ 1000

Model: 1959-0

Back To Assemblies

Save Part Not Listed?
product name

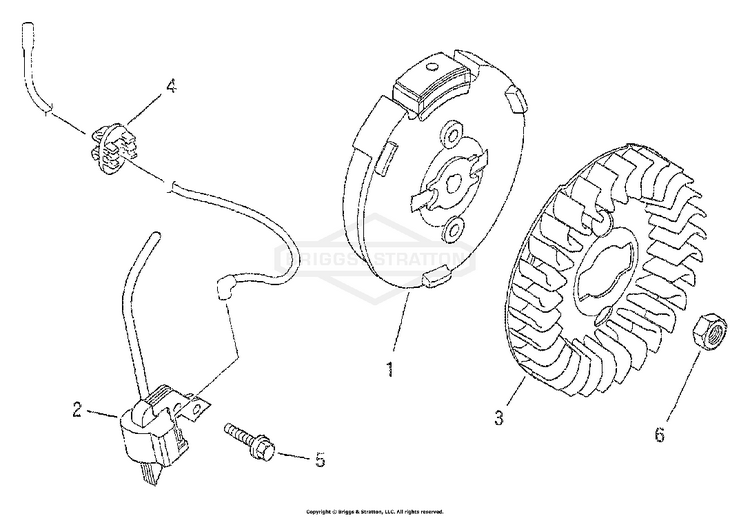

Magneto/Flywheel

...
...
1
FLYWHEEL BS-711525
...
2
ARMATURE, Magneto BS-711526
...
3
FAN, FLYWHEEL BS-711527
...
4
CLIP, MAGNETO BS-187544GS
...
5
SCREW BS-711142
...
6
NUT - FLYWHEEL BS-711528
Schematic Image Zoomed
