1956-0 Briggs and Stratton Portable Generator ProMax 7500A

Model: 1956-0

Save Part Not Listed?
product name

Alternator

...
...
1
Flange Plate BS-102271GS
...
2
Side Grill (Plastic) BS-102139GS
...
3
Screw MC PPHD M5*10mm BS-~NSP
...
4
Washer Lock M10/ 3/8 OXY Black BS-~NSP
...
5
Screw Cap 3/8 unc * 1 1/4" BS-102279GS
...
6
Rotor Fan BS-102280GS
...
7
Rotor EW DC Welder BS-102278GS
...
8
Rotor Bolt Sincro 325mm BS-102285GS
...
9
Washer Flat M8 & 5/16" BS-~NSP
...
10
Nut nylock M8-1.25 Type T BS-~NSP
...
11
Bearing Assy Sincro BS-102283GS
...
12
Bearing Circlip BS-~NSP
...
13
Stud M8*30mm BS-102131GS
...
14
Stator Assembly Sincro EK6 AVR BS-102079GS
...
15
Slip Ring Assembly BS-102242GS
...
16
Slip Ring Cover BS-102243GS
...
17
End Panel Blank Alternator BS-102407GS
...
18
End Cap Plastic (Outlet Panel) BS-102085GS
...
19
Screw Machine M4-0.7*12mm BS-~NSP
...
20
Brush Holder & Brush BS-102367GS
...
21
Support Plate BS-~NSP
...
22
Screw MC PPHD M6*10mm BS-~NSP
...
23
Filter Wave Form ERR Alternator BS-102952GS
...
24
REGULATOR-VOLTAGE BS-707056
...
25
Fuse 3A ERR Voltage Regulator BS-102951GS
...
26
SCREW M6 * 15MM BS-~NSP
...
27
Cover Alternator Low Profile BS-102245GS
...
28
Alternator Sincro EK6.0 AVR No Outlets BS-102985GS

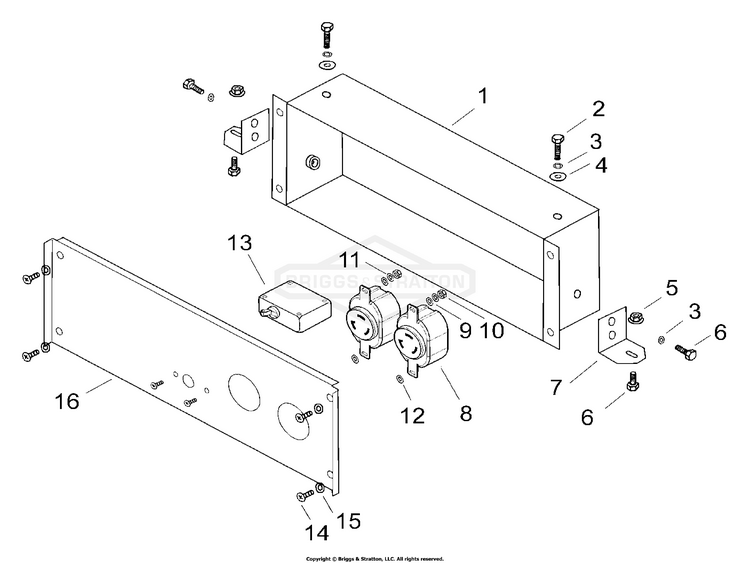

Box Outlet Panel Assembly

...
...
1
Box outlet panel BS-102970GS
...
2
Screw Hx Hd M6-1.0 x 20mm BS-~NSP
...
3
Shakeproof washer M6 BS-~NSP
...
4
Washer M6x20mm BS-~NSP
...
5
Flange nut M6-1.0 BS-~NSP
...
6
Screw Hx Hd M6-1.0 x 12mm BS-~NSP
...
7
Bracket Outlet box mounting BS-102971GS
...
8
Outlet 250V/30A BS-102972GS
...
9
Washer M4 BS-~NSP
...
10
Nut M4-0.7 BS-~NSP
...
11
Lockwasher M4 BS-~NSP
...
12
Shakeproof washer M4 BS-~NSP
...
13
Circuit breaker 25A BS-102984GS
...
14
Machine screw PPHd M5-0.8 x 12mm BS-~NSP
...
15
Shakeproof washer M5 BS-~NSP
...
16
Outlet panel BS-102974GS

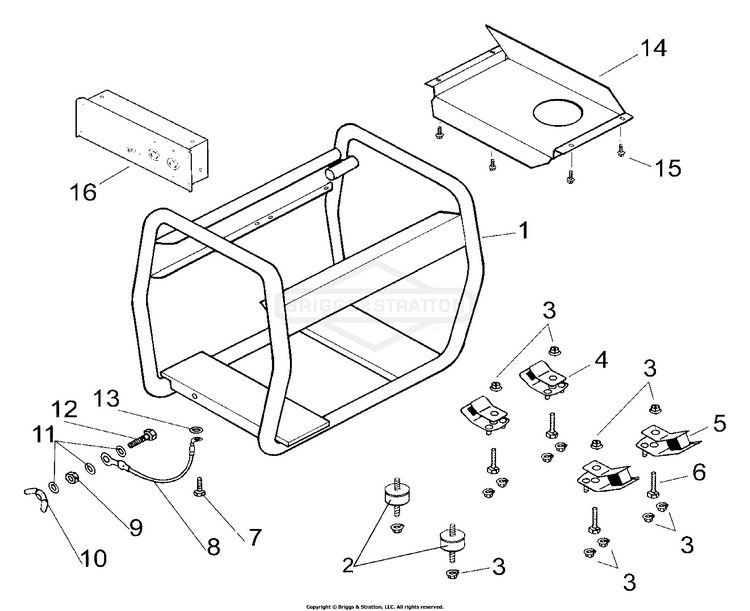

Cradle Assembly

...
...
1
Cradle Red BS-102297GS
...
2
Vibration Mount 32mm Diameter BS-102034GS
...
3
Nut Flange M8-1.25 BS-~NSP
...
4
Vibration Mount 45 Degree Hard BS-102031GS
...
5
Vibration Mount 45 Degree Soft BS-102033GS
...
6
SCREW SET M8-1.25*35MM BS-~NSP
...
7
Screw Set M8-1.25x12 Plated BS-~NSP
...
8
Lead Earth Assy 145mm BS-102050GS
...
9
Nut Full M6-1.0 BS-~NSP
...
10
Nut Wing M6-1.0 BS-102036GS
...
11
Washer Shakeproof 1/4" & M6 Int BS-~NSP
...
12
Screw Set M6-1.0x25mm Plated BS-~NSP
...
13
Washer Shakeproof M8 int BS-~NSP
...
14
Heat Shield Pro Max 7500 BS-102754GS
...
15
Screw Selftap 5.5*1.8*13mm BS-~NSP
...
16
Outlet panel assembly BS-102982GS
...
--
Decal Warning Read Manual (Not Illustrated) BS-102077GS
...
--
Decal Caution Hot (Not Illustrated) BS-102041GS
...
--
Decal GND (Not Illustrated) BS-102048GS
...
--
Decal Electrical Hazard (Not Illustrated) BS-102076GS
...
--
Decal Pro Max 7500 (Not Illustrated) BS-102755GS
...
--
Manual Owners BS2012 (Not Illustrated) BS-102065GS
...
--
Decal A triangle (Not Illustrated) BS-102815GS
...
--
Decal Outlet panel (Not Illustrated) BS-102976GS

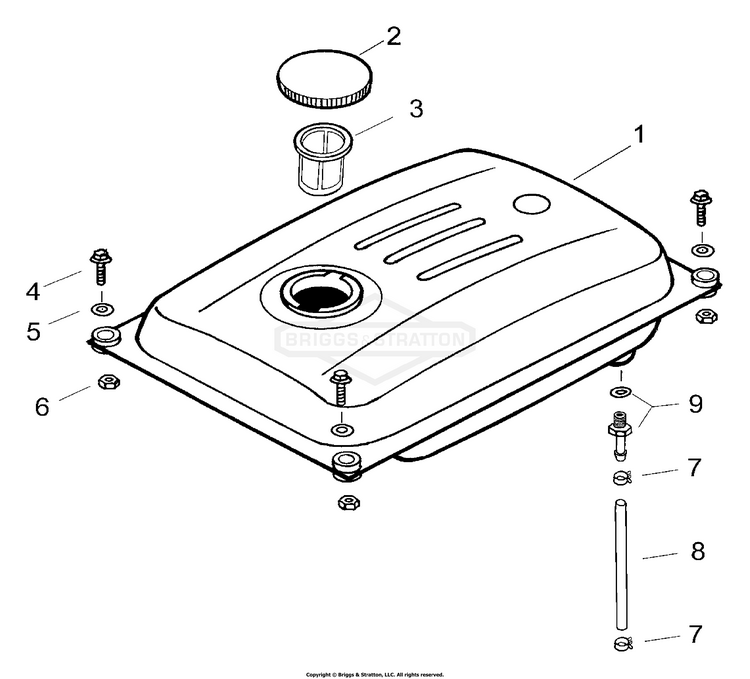

Fuel Tank Assembly

...
...
1
Tank Fuel Metal BS-102044GS
...
2
Fuel Cap BS-102090GS
...
3
Strainer basket BS-102968GS
...
4
Screw Set M6-1.0x25mm Plated BS-~NSP
...
5
Washer Repair 6x20 oxy Black BS-102042GS
...
6
Nut Locking Flange M6-1.0mm BS-~NSP
...
7
Clamp Hose 14mm OD BS-102549GS
...
8
Hose Fuel 5/16"ID SAE J30R7 BS-102550GS
...
9
Connector Fuel Tank BS-102699GS

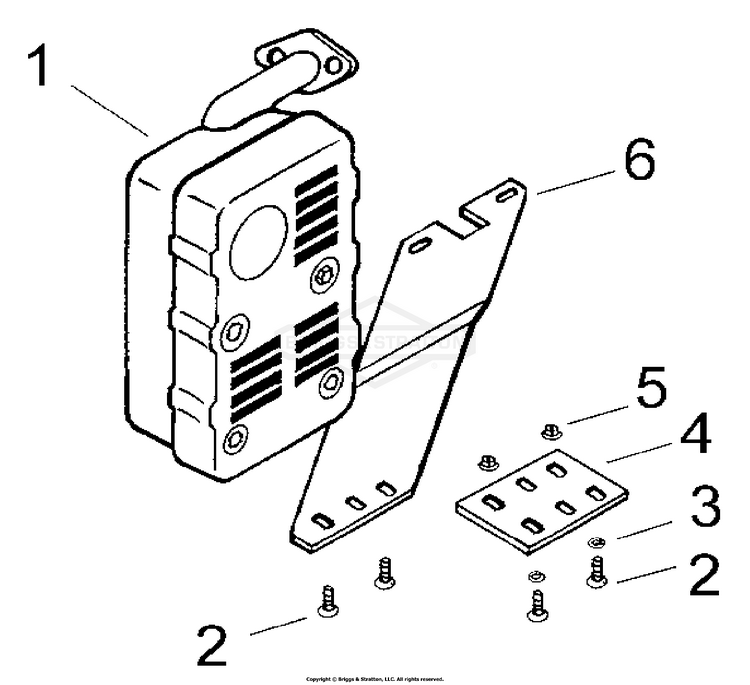

Muffler Assembly

...
...
1
Muffler BS-102502GS
...
2
Screw Hx Hd M6-1.0 x 12mm BS-~NSP
...
3
Lock washer M6 BS-~NSP
...
4
Bracket exhaust mounting BS-102983GS
...
5
Flange nut M6-1.0 BS-~NSP
...
6
Bracket exhaust mounting BS-102254GS
