product name

195432-1047-03 Briggs and Stratton Engine

Model: 195432-1047-03

Back To Assemblies

Save Part Not Listed?
product name

Crankcase Cvr, Cam

...
...
12
GASKET, Crankcase (.015) BS-692221
...
12
GASKET, Crankcase (.005) BS-27876
...
12
GASKET, Crankcase (.009) BS-27877
...
18
COVER, Crankcase BS-496981
...
19
KIT, Bushing/Seal (PTO Side) BS-295964
...
20
SEAL, Oil (Magneto Side) BS-391086S
...
21
CAP, Oil Fill BS-281658S
...
22
SCREW (Crankcase Cover) BS-691103
...
46
CAMSHAFT BS-691167
...
186
CONNECTOR, Hose BS-691609
...
219
GEAR, Governor BS-494845
...
220
WASHER (Governor Lever) BS-691724
...
244A
CONNECTOR-HOSE BS-691764
...
244
CONNECTOR, Hose BS-230998
...
411
CABLE, 15 FT, 1/0 BS-94802GS
...
524
SEAL, Dipstick Tube (Dipstick Tube) BS-281370S

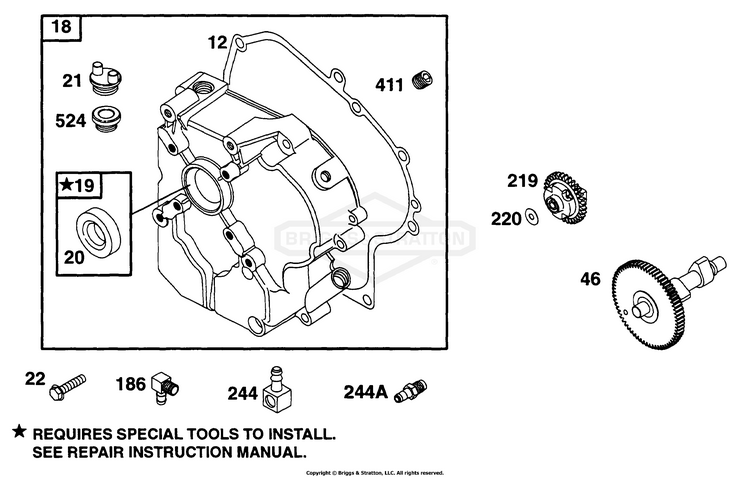

Schematic Image Zoomed
