1953-2 Briggs and Stratton Generator BSQ 4500

Model: 1953-2

Back To Assemblies

Save Part Not Listed?
product name

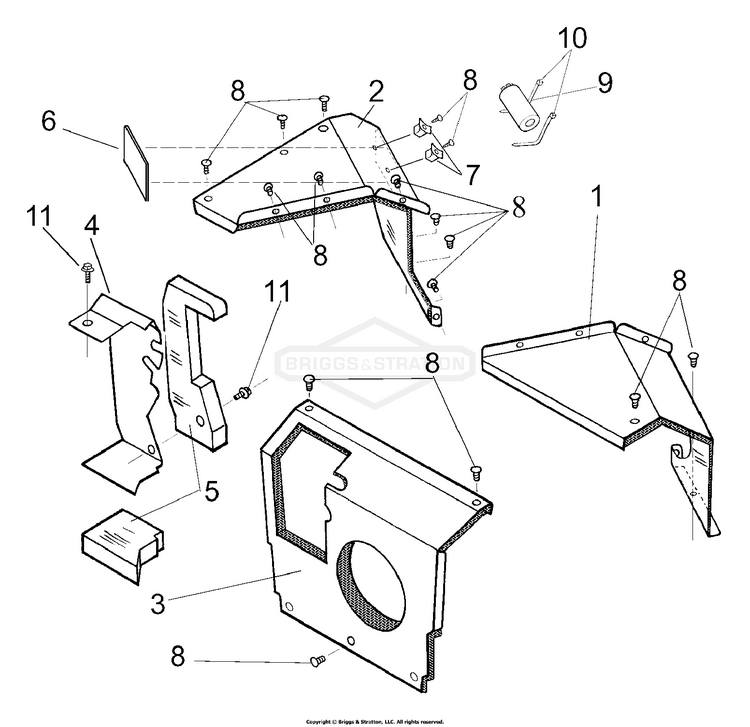

Air Ducting Assembly

...
...
1
DUCTING PANEL 1. ALTERNATOR END Ducting Panel 1, 2 and 3 supplied with acoustic foam BS-102152GS
...
2
DUCTING PANEL 2. ALTERNATOR END Ducting Panel 1, 2 and 3 supplied with acoustic foam BS-102153GS
...
3
DUCTING PANEL 3. ENGINE END Ducting Panel 1, 2 and 3 supplied with acoustic foam BS-102154GS
...
4
HEATSHIELD CARBURETTOR BS-102155GS
...
5
ACOUSTIC FOAM (PANEL AK27) BS-102189GS
...
6
INSULATION HIGH TEMPERATURE BS-103069GS
...
7
MOUNTING BASE - CAPACITOR BS-102121GS
...
8
SCREW TAPTITE PPHD 4.2*1.4*8MM BS-~NSP
...
9
CAPACITOR 31.5UF BS-102219GS
...
10
TY-WRAP 210MM*4MM BS-~NSP
...
11
SCREW BS-710234
Schematic Image Zoomed
