product name

1953-2 Briggs and Stratton Generator BSQ 4500

Model: 1953-2

Back To Assemblies

Save Part Not Listed?
product name

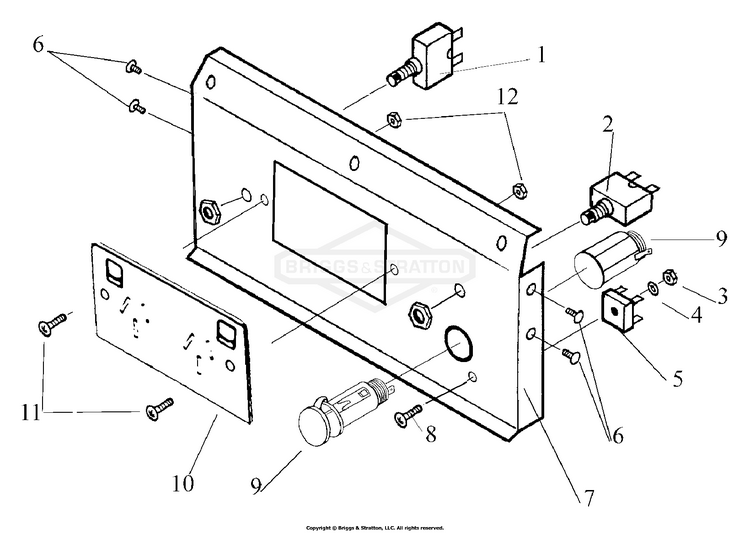

Alternator Outlet Panel

...
...
1
CIRCUIT BREAKER 15A BS-102133GS
...
2
CIRCUIT BREAKER 10A BS-102132GS
...
3
NUT FULL M5-0.8MM PLATED BS-~NSP
...
4
WASHER SHAKEPROOF M5 EXT BS-~NSP
...
5
BRIDGE RECTIFIER BS-102161GS
...
6
SCREW TAPTITE PPHD 4.2*1.4*8MM BS-~NSP
...
7
OUTLET PANEL BSQ4500 AUSTRALIA BS-102745GS
...
8
SCREW MACHINE PPHD M5-0.8*20MM BS-~NSP
...
9
OUTLET 12V DC BS-187873GS
...
10
OUTLET AUSTRALIAN 10A/240V BS-102481GS
...
11
SCREW MACHINE PPHD M3 *15 BS-~NSP
...
12
NUT FULL M3 BS-~NSP
