1953-0 Briggs and Stratton Generator BSQ 4500

Model: 1953-0

Back To Assemblies

Save Part Not Listed?
product name

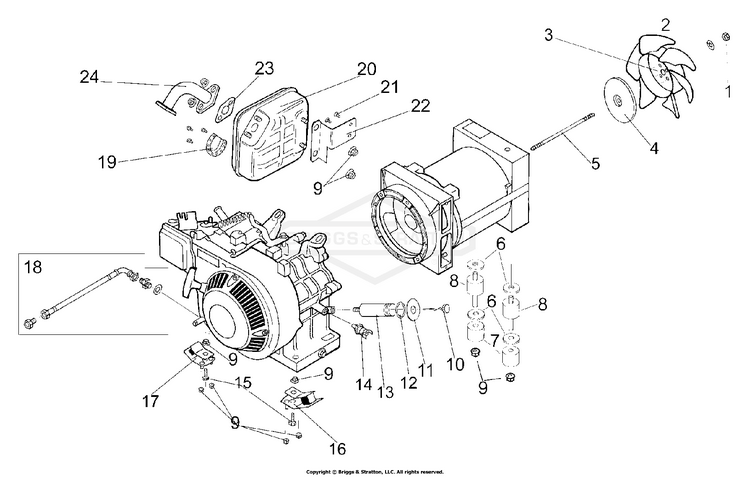

Engine, Exhaust & Fan Fittings

...
...
2
WSHR, M8 X 29 X 1.6 MM, BZP BS-102557GS
...
3
FAN PLASTIC 8"*6 BLADE (DRILL HOLE TO 8.5MM) BS-102142GS
...
4
FAN BOSS BS-102558GS
...
5
ROTOR BOLT SINCRO 270MM BS-102397GS
...
6
SPACER 4MM BS-102118GS
...
7
SPACER 24MM BS-102136GS
...
8
VIBRATION MOUNT 32MM DIAMETER BS-102111GS
...
10
DIPSTICK FOR USE WITH AJ14 BS-102145GS
...
11
WASHER RUBBER 80*34*1.5MM BS-102194GS
...
12
O RING BS-691870
...
13
OIL-FILL EXTENSION TUBE BS-102144GS
...
14
SWITCH TEMPERATURE BS-102146GS
...
16
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
17
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
18
OIL DRAIN HOSE BS-102151GS
...
19
EXHAUST DEFLECTOR BS-102662GS
...
20
MUFFLER BS-715602
...
22
BRACKET EXHAUST MOUNTING BS-102541GS
...
23
GASKET BS-710082
...
24
MANIFOLD BS-715603
Schematic Image Zoomed
