1953-0 Briggs and Stratton Generator BSQ 4500

Model: 1953-0

Back To Assemblies

Save Part Not Listed?

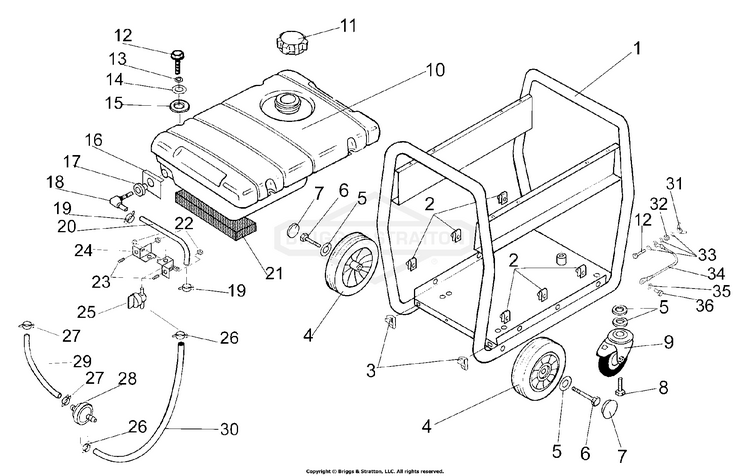

Frame And Fittings

CRADLE EG4500 BS-102167GS

LUGNUT M6-1.0 BS-102177GS

FASTENER RECEPTACLE 1/4 TURN BS-102178GS

WHEEL AND TYRE BS-102159GS

WASHER FLAT M12*40*1.5MM BS-102202GS

BOLT HXHD M12-1.75*90MM BS-102188GS

WHEEL CAP BS-102149GS

SCREW HXHD SET M12-1.5*35MM BS-102187GS

CASTOR WHEEL 100MM BS-102148GS

TANK FUEL 5 US GALLON BS-102130GS

CAP FUEL (TOP VENTING) BS-102546GS

WASHER REPAIR 6X20 OXY BLACK BS-102042GS

GROMMET TANK MOUNTING BS-102750GS

WASHER M10 FORM C OXY-BLACKENED BS-102547GS

BRACKET TANK CONNECTOR BS-102562GS

BUSHING TANK DEXTOR BS-102104GS

CONNECTOR HOSE REDUCING ELBOW BS-102548GS

CLAMP HOSE 14MM OD BS-102549GS

HOSE FUEL 5/16"ID SAE J30R7 BS-102550GS

FOAM ACOUSTIC BS-102551GS

BRACKET FUEL TAP MOUNTING BS-102748GS

VALVE FUEL IN-LINE BS-102553GS

CLAMP HOSE 1/4" ID BS-102047GS

CLAMP HOSE 12MMOD BS-102555GS

FUEL FILTER 150 MICRON BS-102554GS

HOSE FUEL 3/16" ID SAE J30R7 BS-102109GS

HOSE FUEL 1/4"ID SAE 30R7 BS-102025GS

NUT WING M6-1.0 BS-102036GS

LEAD EARTH (EARTH POST ASSY) BS-102135GS

DECAL BSQ4500 (Not Illustrated) BS-102158GS

DECAL GND (Not Illustrated) BS-102048GS

DECAL CAUTION HOT (Not Illustrated) BS-102041GS

DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS

DECAL, PANEL ENGINE CONTROL (Not Illustrated) BS-102157GS

DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS

WHEEL KIT INSTRUCTION SHEET (Not Illustrated) BS-102203GS

MANUAL OWNERS BS2012 (Not Illustrated) BS-102065GS
