1953-0 Briggs and Stratton Generator BSQ 4500

Model: 1953-0

Back To Assemblies

Save Part Not Listed?
product name

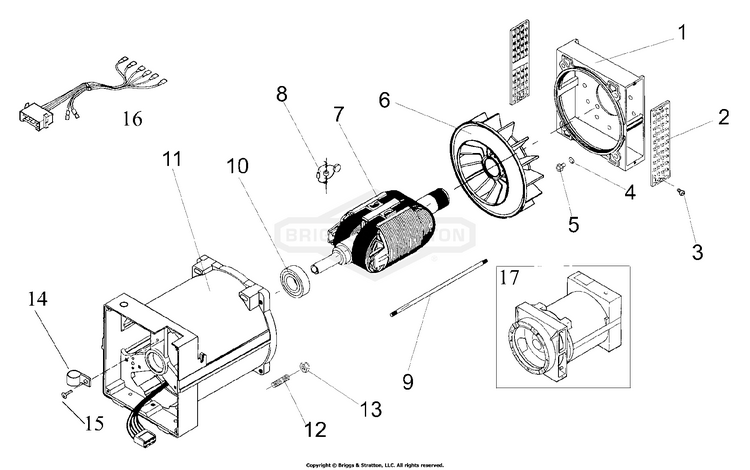

Alternator

...
...
1
FLANGE PLATE BS-102271GS
...
2
SIDE GRILL (PLASTIC) BS-102139GS
...
5
SCREW CAP 3/8 UNC * 1 1/4" BS-102279GS
...
6
ROTOR FAN SINCRO (30MM) BS-102073GS
...
7
ROTOR ER 4.2 BS-102205GS
...
8
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
9
ROTOR BOLT SINCRO 270MM BS-102397GS
...
10
ROTOR BEARING BS-102038GS
...
11
STATOR SINCRO ER4.2 BSQ AUSTRALIAN BS-102740GS
...
12
STUD M8*30MM BS-102131GS
...
14
CLAMP P CABLE/HOSE 3/8" / 10MM BS-102770GS
...
16
WIRING HARNESS ASSEMBLY BS-102746GS
...
17
ALTERNATOR SINCRO ER4.2 LONG SHAFT AU BS-102741GS
