194417-1120-02 Briggs and Stratton Engine

Model: 194417-1120-02

Back To Assemblies

Save Part Not Listed?
product name

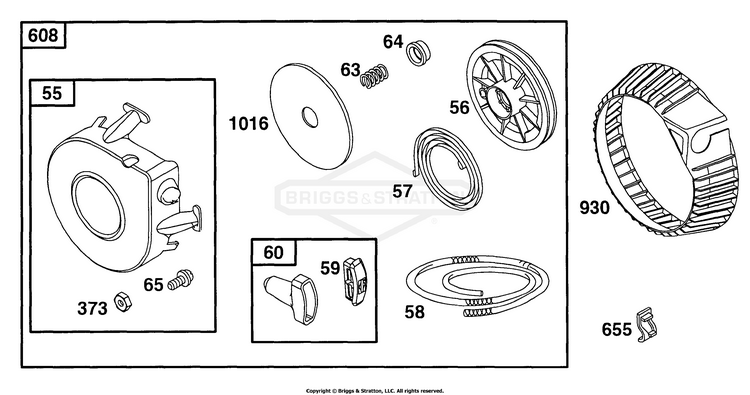

Rewind Assy

...
...
55
HOUSING, Rewind Starter BS-393576
...
56
PULLEY, Starter (63 Rope) Includes 63 Rope; if Longer Rope is Required, Order Part No. 66894 and Cut to Required Length BS-295871
...
57
SPRING-REWIND STR BS-490179
...
58
ROPE, Starter (Cut To Required Length) BS-692188
...
58
ROPE, Starter (Cut To Required Length) BS-695002
...
59
GRIP-STARTER ROPE BS-490652
...
60
GRIP-STARTER ROPE BS-490652
...
63
SPRING, Ratchet BS-690547
...
64
ADAPTER, Ratchet Spring BS-691920
...
65
SCREW BS-690837
...
373
NUT BS-690800
...
608
STARTER, Rewind BS-693900
...
655
ANCHOR-REWIND SPRING (Stamped Rewind Housing) BS-691734
...
930
GUARD, Rewind BS-691904
...
1016
SPACER-REWIND (Rewind) BS-490817
