194417-0120-02 Briggs and Stratton Engine

Model: 194417-0120-02

Save Part Not Listed?
product name

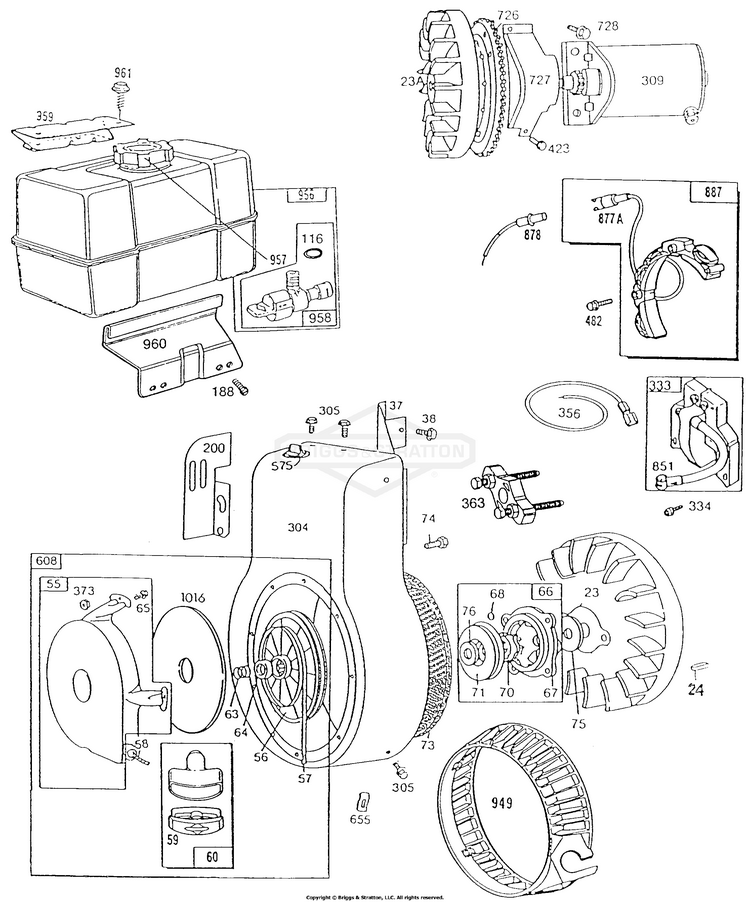

Blower Hsg,Rewind,Fuel Tank

...
...
23A
FLYWHEEL (Engines With Alternator) For Use on Engines WITH ALTERNATOR. (Includes Aluminum Ring Gear) BS-391983
...
23
FLYWHEEL BS-298260
...
24
KEY, Flywheel BS-222698S
...
37
GUARD, Flywheel BS-690411
...
38
SCREW BS-690364
...
55
HOUSING, Rewind Starter BS-393576
...
56
PULLEY, Starter (63 Rope) Includes 63 Rope; if Longer Rope is Required, Order Rope No. 66894 and Cut to Required Length. BS-295871
...
57
SPRING-REWIND STR BS-490179
...
58
ROPE, Starter (Cut To Required Length) For Use With Plastic Pulley; if Longer Rope is Needed, Order No. 66894 and Cut to Required Length. BS-692188
...
59
GRIP-STARTER ROPE BS-490652
...
60
GRIP-STARTER ROPE BS-490652
...
63
SPRING, Ratchet BS-690547
...
64
ADAPTER, Ratchet Spring BS-691920
...
65
SCREW BS-690837
...
66
CLUTCH-STARTER (Uses Rubber Coated Retainer Washer-Ref. 71) BS-399671
...
67
HOUSING, Clutch BS-394897
...
68
BALL, Clutch BS-691604
...
70
RATCHET-CLUTCH (engine W/Ring Gear on FW equipped for Elec Start) BS-691945
...
71
COVER, Ratchet (Rubber Coated) BS-691359
...
73
SCREEN-ROTATING BS-691754
...
74
SCREW (Rotating Screen) BS-690345
...
75
WASHER (5/8 Hole) BS-690582
...
76
COVER, Ratchet BS-691359
...
116
SEAL, O-Ring (Fuel Shut Off) BS-691898
...
188
SCREW (5/16-18 X 3/4) BS-691058
...
200
GUIDE, Air BS-691170
...
304
HOUSING, Blower BS-491596
...
305
SCREW (1/4-20 X 5/8) BS-692198
...
309
MOTOR, Starter (3 1/16 Housing) BS-497595
...
333
ARMATURE, Magneto (Magnetron Ignition) BS-398811
...
334
SCREW BS-691061
...
356
WIRE, Stop BS-491391
...
363
PULLER, Flywheel BS-19165
...
373
NUT BS-690800
...
423
SCREW BS-691002
...
482
SCREW (Tapping) BS-691183
...
575
SWITCH, Rotary (Mechanical Governor) BS-692309
...
608
STARTER, Rewind For Starter Assy. With Longer Than Standard Rope-Order No. 299640 BS-693900
...
655
ANCHOR-REWIND SPRING (Stamped Rewind Housing) BS-691734
...
726
GEAR, Ring BS-696537
...
727
COVER, Starter Drive BS-395405
...
728
SCREW (5/16-18 X 3/4) BS-691058
...
851
TERMINAL, Spark Plug BS-493880S
...
878
WIRE ASSEMBLY (Dc Only) BS-692306
...
887
ALTERNATOR (DC Only) BS-592828
...
949
GUARD, Rewind BS-691904
...
956
TANK, Fuel (4 Quart) (Plastic) BS-691993
...
957
CAP, Fuel Tank (Plastic) (2 1/4 I.D.) BS-799719
...
958
VALVE, Fuel Shut Off (Plastic) BS-698182
...
960
BRACKET-FUEL TANK (Lower) BS-694592
...
961
SCREW (Tapping) BS-690708
...
1016
SPACER-REWIND (Rewind) BS-490817

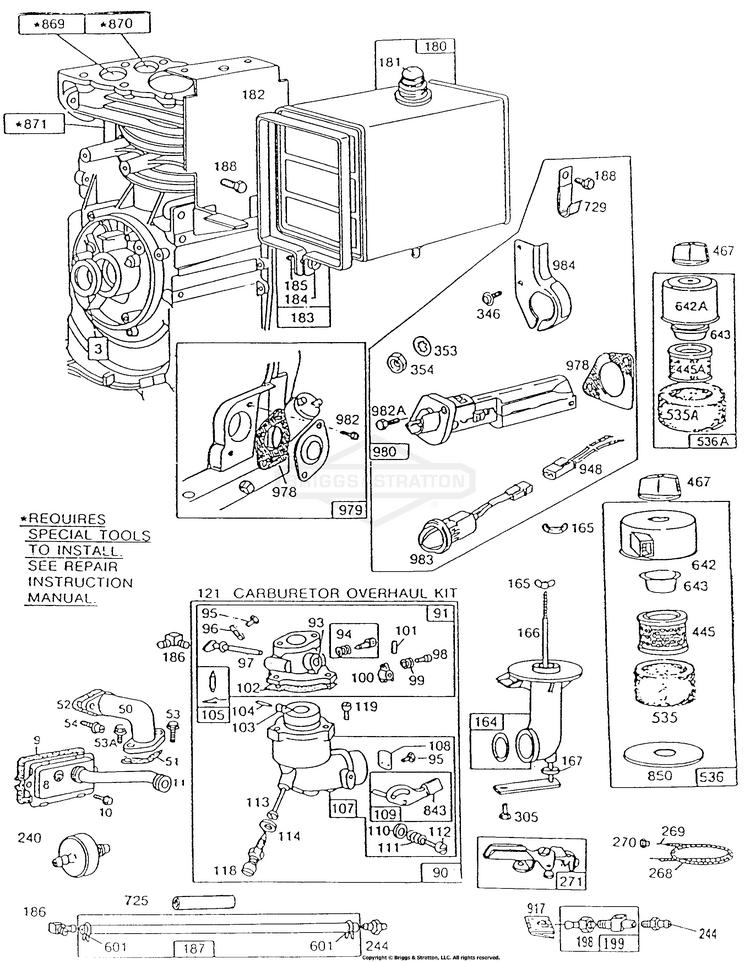

Carb,Primer,Fuel Tank,A/C

...
...
3
SEAL, Oil Included in Gasket Set-Part No. 299577 BS-294606S
...
8
BREATHER ASSEMBLY BS-495724
...
9
GASKET, Breather Included in Gasket Set-Part No. 299577 BS-27803S
...
10
SCREW (Breather Assembly) BS-691666
...
11
TUBE, Breather (Used with Nylon Air Cleaner Pipe) BS-280267
...
50
MANIFOLD, Intake BS-212488
...
51
GASKET, Intake Included in Gasket Set-Part No. 299577 BS-270684
...
52
GASKET-INTAKE Included in Gasket Set-Part No. 299577 BS-27828S
...
53A
SCREW BS-690953
...
53
SCREW BS-94839
...
54
SCREW (Intake Manifold) BS-93208
...
90
CARBURETOR (Manual Choke) BS-390323
...
91
BODY, Upper Carburetor BS-399443
...
93
BUSHING, Throttle Shaft BS-691769
...
94
VALVE, Idle Mixture Included in Carburetor Overhaul Kit-Part No. 398235 BS-292681
...
95
SCREW (Throttle Valve) BS-691437
...
96
VALVE, Throttle BS-223370
...
97
SHAFT, Throttle BS-298826
...
98
SCREW (8-32 X 5/8) BS-691615
...
99
KIT, Idle Speed BS-693942
...
100
STOP, Throttle BS-691708
...
101
PIN, Shaft BS-691616
...
102
GASKET, Carburetor Body Included in Carburetor Overhaul Kit-Part No. 398235 BS-27918
...
103
FLOAT, Carburetor BS-99333
...
104
PIN, Float Hinge Included in Carburetor Overhaul Kit-Part No. 398235 BS-691775
...
105
KIT, Needle/Seat (Gravity Feed) Included in Carburetor Overhaul Kit-Part No. 398235 BS-394681
...
105
KIT, Needle/Seat (Gravity Feed) BS-394682
...
107
BODY, Lower Carburetor BS-399442
...
108
VALVE, Choke BS-62872
...
109
SHAFT, Choke (Manual) BS-391987
...
110
WASHER BS-222712
...
111
SPRING, Friction BS-691590
...
112
SCREW BS-691587
...
113
NOZZLE, Carburetor Included in Carburetor Overhaul Kit-Part No. 398235 BS-398202
...
114
GASKET, Nozzle (Viton Seat) Included in Carburetor Overhaul Kit-Part No. 398235 BS-691610
...
118
VALVE, High Speed Includes: 22235 Washer-Brass 26336 Spring 65978 O-Ring 394033 Valve-Needle. Included in Carburetor Overhaul Kit-Part No. 398235 BS-99525S
...
119
SCREW (Upper To Lower Carburetor Body) BS-691090
...
121
KIT, Carburetor Overhaul BS-394693
...
164
ELBOW, Intake Uses: 271265 O-Ring Seal BS-398592
...
165
NUT BS-691331
...
166
STRAP/STUD, Air Cleaner Mounting (9 9/16) BS-392105
...
167
SEAL-O RING (Needle Valve) BS-691606
...
180
TANK, Fuel (4 Quart) BS-290816
...
181
CAP, Fuel Tank (Metal) BS-791545
...
182
BRACKET, Fuel Tank BS-222758
...
183
STRAP, Fuel Tank (4 Quart) BS-291367
...
184
SCREW (1/4-20 X 1-1/2) BS-690280
...
185
NUT (1/4-20) BS-690279
...
186
CONNECTOR, Hose BS-691609
...
187
LINE, Fuel (Cut To Required Length) BS-791745
...
188
SCREW (5/16-18 X 3/4) BS-691058
...
198
VALVE-FUEL SHUT OFF(M BS-592840
...
199
VALVE-FUEL SHUT OFF(M BS-592840
...
240
FILTER, Fuel BS-298090S
...
244
CONNECTOR-HOSE BS-691764
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) If Longer Wire is Required, Specify Length in Inches; if Shorter Wire is Needed, Order No. 26633 and Cut to Required Length. BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
305
SCREW (1/4-20 X 5/8) BS-692198
...
346
SCREW (8-32 X 3/8) BS-690661
...
353
WASHER BS-691077
...
354
NUT (Ground Terminal) BS-691612
...
445
FILTER, A/C Cartridge BS-393957S
...
467
KNOB, Air Cleaner Cover BS-691668
...
535A
FILTER, Pre Cleaner BS-271794S
...
535
FILTER, Pre Cleaner BS-271794S
...
536A
CLEANER-AIR BS-593702
...
536
CLEANER, Air BS-399810
...
601
CLAMP, Hose (Green) BS-791850
...
642A
COVER, Air Cleaner BS-593373
...
642
COVER, Air Cleaner BS-496093
...
643
RETAINER, Air Filter BS-691730
...
725
SHIELD, Heat BS-690403
...
729
CLIP, Wire (Retainer) BS-690430
...
843
SLEEVE, Lever BS-691895
...
850
GASKET, Air Cleaner BS-271793
...
869
SEAT-VALVE (Exhaust) BS-691844
...
870
SEAT-VALVE (Exhaust) BS-691844
...
871
BUSHING, Valve Guide (Intake) BS-231218
...
871
BUSHING, Valve Guide (Exhaust) BS-261961
...
917
VALVE, Handle Shutoff BS-691737
...
948
HARNESS, Wiring BS-398661
...
978
GASKET, Oil Gard Included in Gasket Set-Part No. 299577 BS-273326S
...
979
COVER, Oil Guard BS-691382
...
980
KIT, Oil Gard BS-398182
...
982A
SCREW (Oil Guard) BS-690350
...
982
SCREW (Oil Guard) BS-690351
...
983
LIGHT, Indicator (Mounting With Light Bracket) BS-398660
...
984
BRACKET, Oil Guard Light BS-692340

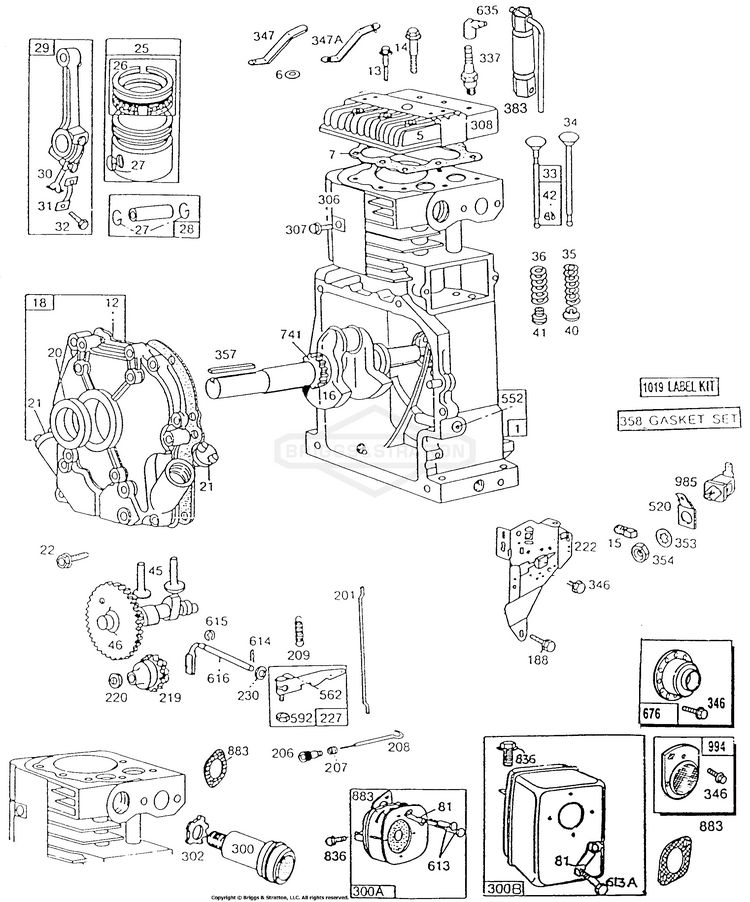

Cylinder,Crankcase,Mufflers

...
...
1
CYLINDER ASSEMBLY BS-494020
...
5
HEAD, Cylinder BS-691715
...
6
WASHER BS-691261
...
7
GASKET, Cylinder Head Included in Gasket Set-Part No. 299577 BS-272163S
...
12
GASKET, Crankcase (.015) Included in Gasket Set-Part No. 299577 BS-692221
...
12
GASKET, Crankcase (.005) Included in Gasket Set-Part No. 299577 BS-27876
...
12
GASKET, Crankcase (.009) Included in Gasket Set-Part No. 299577 BS-27877
...
13
SCREW (Cylinder Head) (3 9/16 ) BS-592244
...
14
SCREW (3) BS-690904
...
15
PLUG, Oil Drain (3/8) BS-690946
...
15
PLUG, Oil Drain BS-690289
...
16
CRANKSHAFT Order 94388 For Loose Timing Gear Retaining Device. BS-492454
...
16
CRANKSHAFT BS-493453
...
18
COVER, Crankcase (Pilot) BS-496984
...
20
SEAL, Oil Included in Gasket Set-Part No. 299577 BS-391086S
...
21
CAP, Oil Fill BS-281658S
...
22
SCREW (Crankcase Cover) BS-691103
...
25
PISTON ASSEMBLY (Standard) BS-499960
...
25
PISTON ASSEMBLY (.010 Oversize) BS-499961
...
25
PISTON ASSEMBLY (.020 Oversize) BS-499962
...
25
PISTON ASSEMBLY (.030 Oversize) BS-499963
...
26
SET, Ring (.030 Oversize Chrome) BS-690014
...
26
SET, Ring (Standard) BS-690014
...
26
SET, Ring (.010 Oversize) BS-393882
...
26
SET, Ring (.020 Oversize) BS-690016
...
26
SET, Ring (.030 Oversize) BS-690017
...
27
LOCK, Piston Pin BS-691073
...
28
PIN, Piston (Standard) BS-499302
...
28
PIN, Piston (.005 Oversize) BS-295841
...
29
ROD, Connecting For Connecting Rod With .020 Undersize Crankpin Bore-Order No. 390773 BS-390402
...
30
DIPPER, Connecting Rod BS-691728
...
31
LOCK, Rod Screw BS-222114
...
32
SCREW (Connecting Rod) BS-690352
...
33
VALVE, Exhaust (Includes Retainer(s)) BS-691794
...
34
VALVE, Intake BS-261055S
...
35
SPRING, Valve (Intake) BS-691605
...
36
SPRING, Valve (Exhaust) BS-691597
...
40
RETAINER, Valve (Valves With Groove In Stem) BS-690656
...
41
RETAINER, Valve (Exhaust Valve) (Exhaust) BS-691939
...
42
KEEPER, Valve (2) BS-494553
...
45
TAPPET, Valve BS-691793
...
46
CAMSHAFT BS-691167
...
81
LOCK, Muffler Screw (3/8 Diameter Bolt Holes) BS-691729
...
188
SCREW (5/16-18 X 3/4) BS-691058
...
201
SPRING/LINK, Governor BS-690545
...
206
NUT, Governor Adjusting (6-32) BS-691771
...
207
SPRING, Friction BS-692522
...
208
ROD, Governor Control BS-261959
...
209
SPRING, Governor BS-796260
...
219
GEAR, Governor Used Before Code Date 91061000 BS-391737
...
219
GEAR, Governor Used After Code Date 91060900 BS-494845
...
220
WASHER (Governor Lever) BS-691724
...
222
BRACKET, Control (Manual Choke) BS-399151
...
227
LEVER-GOV CONTROL (1/4 Diameter) BS-692356
...
230
WASHER BS-691691
...
300B
MUFFLER BS-494221
...
300A
MUFFLER BS-692304
...
300
MUFFLER (Round Lo Tone) BS-393010S
...
302
LOCKNUT (Muffler and Elbow) BS-690453
...
306
SHIELD-CYLINDER BS-496797
...
307
SCREW BS-691003
...
308
COVER, Cylinder Head BS-691201
...
337
PLUG, Spark BS-796112S
...
337
PLUG, Spark BS-796112S
...
337
PLUG, Spark BS-796112S
...
337
PLUG, Spark (Resistor) BS-796112S
...
346
SCREW (8-32 X 3/8) BS-690661
...
347A
SWITCH, Spark Plug Stop BS-293739
...
347A
SWITCH, Spark Plug Stop BS-298926
...
347
SWITCH, Spark Plug Stop (1-1/2 High, 38 Mm. Spark Plugs) BS-690578
...
353
WASHER BS-691077
...
354
NUT (Ground Terminal) BS-691612
...
357
KEY, Drive Pulley (1/4) BS-691483
...
358
GASKET SET, Engine BS-299577
...
383
WRENCH, Spark Plug BS-89838S
...
520
TERMINAL, Ground BS-691084
...
552
BUSHING, Governor Crank (Includes Seal, Ref. 87) BS-491893
...
562
BOLT (Governor Lever) BS-92613
...
592
NUT (Governor Control) BS-691251
...
613A
SCREW (Muffler) BS-691351
...
613
SCREW (Muffler) BS-691632
...
614
PIN, Cotter BS-691620
...
615
RETAINER, Governor Shaft BS-93307
...
616
CRANK-GOVERNOR (1/4 Diameter) BS-692015
...
635
BOOT, Spark PLug BS-66538S
...
676
DEFLECTOR, Muffler (Direct Outlet) BS-395700
...
741
GEAR, Timing (Key) BS-691288
...
836
SCREW (Tank) (Fuel Tank) BS-690810
...
883
GASKET-EXHAUST Included in Gasket Set-Part No. 299577 BS-692237
...
985
INSULATOR BS-691972
...
994
ARRESTOR, Spark BS-399541
...
1019
KIT, Label BS-491193

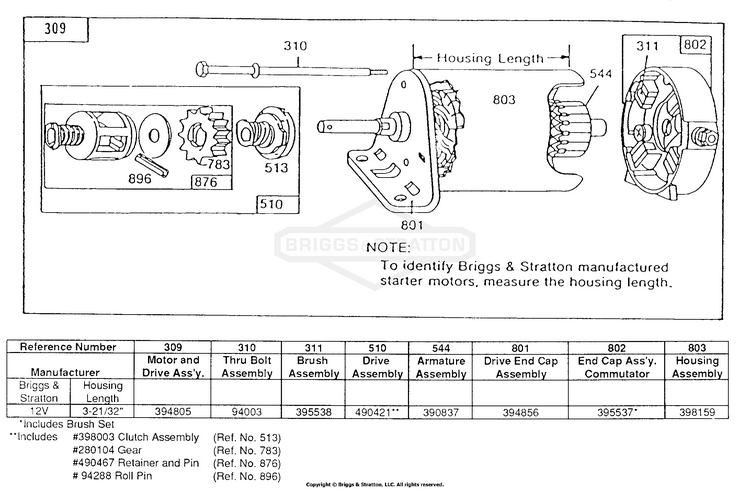

Electric Starter and Chart

...
...
309
MOTOR, Starter (3 1/16 Housing) BS-497595
...
310
SCREW (3 5/8 Housing) BS-690323
...
311
SET, Brush (3-5/8 or 4 3/8 Housing) BS-395538
...
510
DRIVE, Starter Includes #398003 Clutch Assembly (Ref. No. 513) #280104 Gear (Ref. No. 783) #490467 Retainer and Pin (Ref. No. 876) #94288 Roll Pin (Ref. No. 896) (3-21/32 or 4 9/16 Housing) BS-696540
...
544
ARMATURE, Starter (3 5/8 Housing) BS-390837
...
801
CAP, Drive BS-691283
...
802
CAP, End (3 5/8 Housing) Includes Brush Set BS-395537
...
803
HOUSING, Starter (3 5/8 Housing) BS-398159

Replacement Engine - US & Canada

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
