1934-2 Briggs and Stratton Portable Generator 8,000 Watt PRO CSA

Model: 1934-2

Save Part Not Listed?
product name

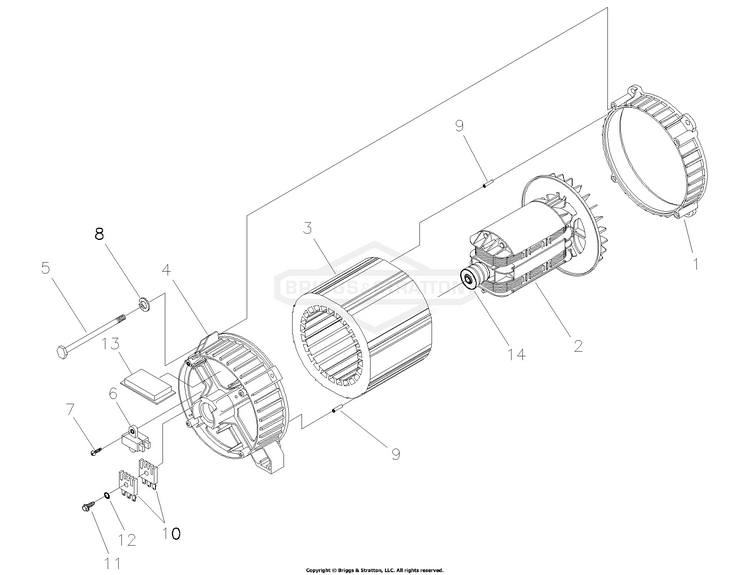

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-192938GS
...
3
STATOR BS-192937AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
BOLT BS-66449LGS
...
6
ASSY, Holder, Rectifier/Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
RECTIFIER, Battery Charge BS-65795GS
...
11
TAPTITE, M5 - 0.8 x 30 BS-66849CGS
...
13
BOARD, Circuit, System Control BS-205858GS
...
14
BEARING BS-65791GS

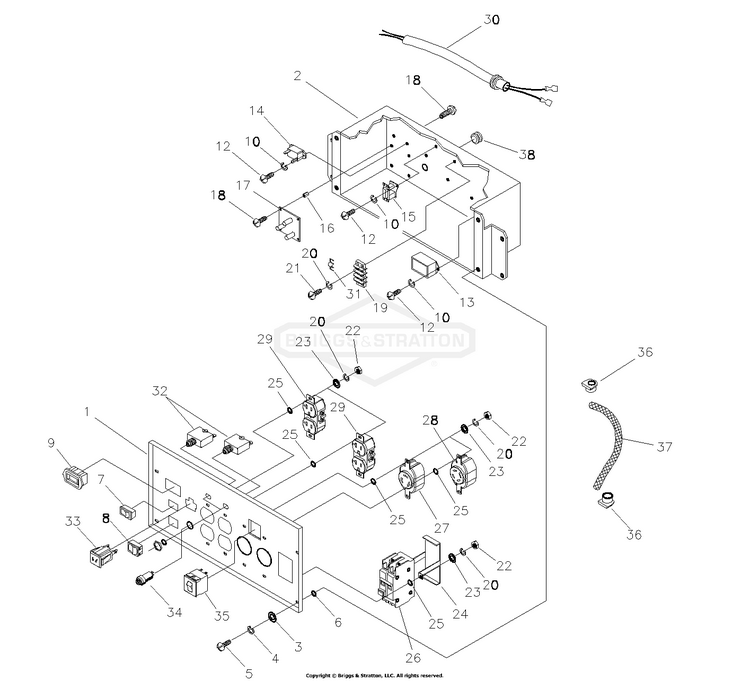

Control Panel

...
...
1
PANEL, Control BS-B195397GS
...
2
BOX, Control Panel BS-B192837GS
...
7
SWITCH, Rocker BS-82538GS
...
8
SWITCH, Rocker BS-192855GS
...
9
METER-HOUR BS-202602GS
...
13
THERMAL, Relay BS-77314GS
...
14
BREAKER, Circuit, 10A, 12V BS-87962GS
...
15
TRANSFORMER, Idle Cnt BS-84028GS
...
16
STANDOFF, Hex, 3/4" BS-64525GS
...
17
PCB, Idle Control, 10KW BS-195406GS
...
19
TERMINAL, Block BS-92953GS
...
24
BRACKET, GFCI Breaker BS-192931GS
...
26
BREAKER, Circuit, GFCI, 40A BS-192828EGS
...
27
OUTLET-120V TL30A BS-705932
...
28
OUTLET, 120/240V, 30A BS-43437GS
...
29
OUTLET, 120V, 20A, Duplex BS-68759GS
...
30
HARNESS, Wire BS-194953GS
...
31
JUMPER, Terminal Block BS-193597GS
...
32
BREAKER, Circuit, 20A with Hardware BS-202394GS
...
33
OUTLET, 12VDC, Snap BS-90418GS
...
34
JACK-COAXIAL BS-312004GS
...
35
BREAKER, Circuit, 30A, 2P BS-202033GS
...
36
BOOT, Rubber Wire Outlet BS-188632GS
...
37
CONDUIT, Flex, .50 I.D. x 9.5 BS-77043BGS
...
38
GROMMET BS-62265GS

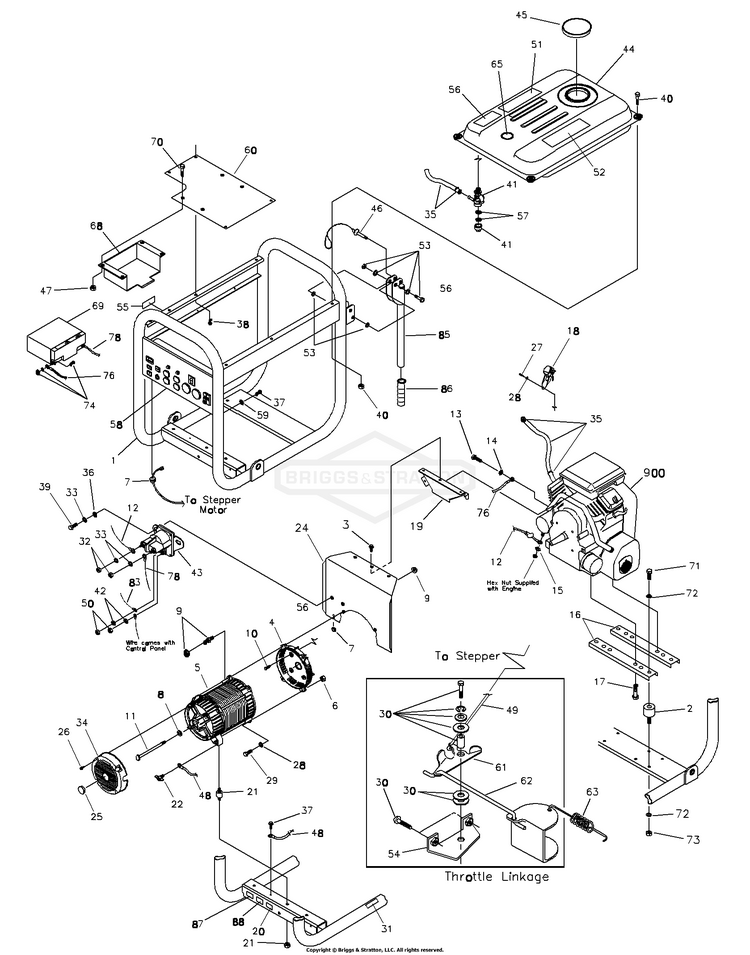

Main Unit

...
...
1
KIT, Cradle, Gen (Includes Items 20, 31, 55, 87 & 88) BS-B193230GS
...
2
MOUNT, Vibration BS-38353GS
...
3
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
4
ADAPTER, Engine BS-190220GS
...
5
ASSY., Alternator (see page 4) BS-~NSP
...
7
GROMMET BS-62265GS
...
8
WASHER, 8.4 x 22.2 x 3 BS-96796GS
...
9
KIT, Alt to Heat Shield Hardware BS-194208GS
...
10
SBHCS, 3/8-16 x 1" BS-190274BGS
...
11
HHCS 5/16-24 x 9-7/8 BS-25254GS
...
12
WIRE, #16, Red BS-189302BGS
...
16
SUPPORT, Engine BS-B77304GS
...
17
SCREW-HEX WSHR HD TAP BS-2828635SM
...
18
ASSY, Stepper Motor BS-195404GS
...
19
SUPPORT, Heat shield BS-J93074GS
...
20
DECAL, Ground BS-B4986GS
...
21
KIT, Vibration Mount BS-194155GS
...
22
SCREW, Wing M6 - 1.0 x 16 BS-86494GS
...
24
ASSY., Heatshield BS-194950GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5 - 0.8 x 10 BS-74908GS
...
30
KIT, Throttle Linkage Hardware BS-194543GS
...
31
DECAL, Warning Exhaust BS-200310GS
...
34
COVER, RBC Plastic w/ Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
SCREW, Self Driller, 12-14 x 7/8 BS-B2153GS
...
38
SCREW, 12 - 24 x 1/2 Thread Forming BS-192376GS
...
39
SCREW, HEX, 1/4-20X.5 BS-704130
...
40
SCREW, M8 - 1.25 x 20, Taptite BS-197955GS
...
41
VALVE, Fuel BS-310574GS
...
43
CONTACTOR, Starter BS-B4769GS
...
44
ASSY., Tank Fuel (Includes Items 41, 51, 52, 56 & 65) BS-196035GS
...
45
CAP, Tank Fuel BS-189135GS
...
46
PIN, Handle Release BS-B4135GS
...
47
LOCKNUT, M6 BS-77395GS
...
48
WIRE, Ground BS-195373GS
...
49
LINKAGE, Stepper Motor to Bell Crank BS-95920GS
...
51
DECAL, Operating Instructions BS-94480GS
...
52
DECAL, Warning BS-194984GS
...
53
KIT, Fold-down Handle Hardware BS-194034GS
...
54
PLATE, Adjust BS-95349GS
...
55
DECAL, Fuel Shutoff BS-197797GS
...
56
DECAL, Warning, CO BS-202997GS
...
57
VALVE, Fuel BS-310574GS
...
58
ASSY. Control Panel BS-202526GS
...
60
SUPPORT, Tray Battery BS-J193512GS
...
61
BRACKET, Bell Crank BS-95348GS
...
62
LINKAGE, Bell Crank to Throttle BS-95921GS
...
63
SPRING BS-96717GS
...
65
GAUGE, Gas BS-192724GS
...
68
TRAY, Battery BS-J195680GS
...
69
BATTERY BS-193043GS
...
74
KIT, Hardware Battery BS-193347GS
...
76
WIRE, #55 Black BS-185939GGS
...
78
WIRE, #13 Red BS-189302EGS
...
83
WIRE, 18 AWG, Red, 3.5" BS-192403YGS
...
85
ASSY, Fold Down Handle BS-B193200GS
...
86
GRIP, Handle BS-198669GS
...
87
DECAL, Neutral Ground BS-195459GS
...
88
DECAL, Ground, French BS-195940GS
...
xx
MANUAL, Operator’s Parts Not Illustrated BS-195511GS
...
xx
BOTTLE, Oil Parts Not Illustrated BS-BB3061GS
...
xx
CHARGER, Battery Parts Not Illustrated BS-84002790
...
xx
DECAL, Family, CA EVP Parts Not Illustrated BS-202179GS
...
xx
KIT, Decal Service Parts Not Illustrated BS-193662GS
...
xx
PLUG, 120/240V, 30A 4P Parts Not Illustrated BS-43438GS
...
xx
PLUG, 125V 30A 3P Parts Not Illustrated BS-100523GS
...
xx
CABLES, Battery Charge Parts Not Illustrated BS-65787GS
...
xx
SCREW Parts Not Illustrated BS-690661
...
xx
ARRESTOR, Spark Parts Not Illustrated BS-794945
...
xx
ASSY., Muffler Parts Not Illustrated BS-692099
...
xx
BRACKET, Muffler Parts Not Illustrated BS-691513
...
xx
SCREW Parts Not Illustrated BS-692056
...
xx
CLAMP, Muffler Parts Not Illustrated BS-690898
...
xx
SCREW Parts Not Illustrated BS-841233

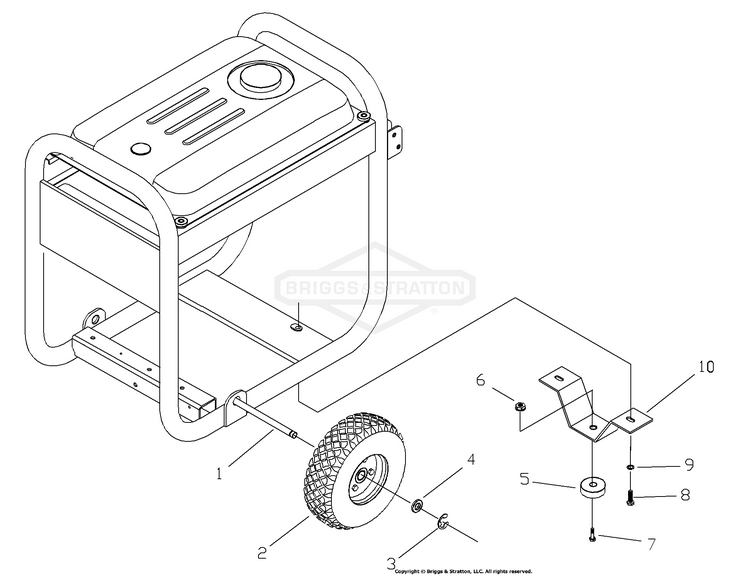

Wheel Kit

...
...
1
AXLE, 5/8" x 25.59" BS-191267JGS
...
2
WHEEL BS-209636GS
...
3
E-RING BS-703977
...
5
VIBE MOUNT, with Washer BS-191413GS
...
6
NUT, 1/4-20, GR5 BS-703233
...
10
LEG, Support BS-B189085GS
...
xx
SUBKIT, Hardware Items Not Illustrated BS-187319GS

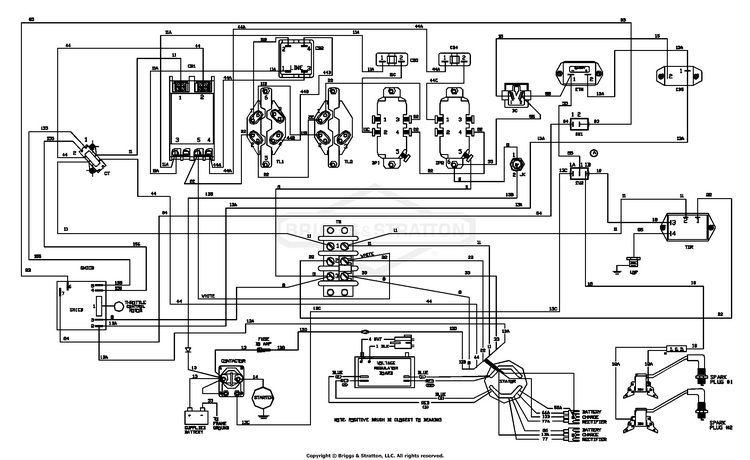

Wiring Diagram

...

No Parts Available for this Schematic

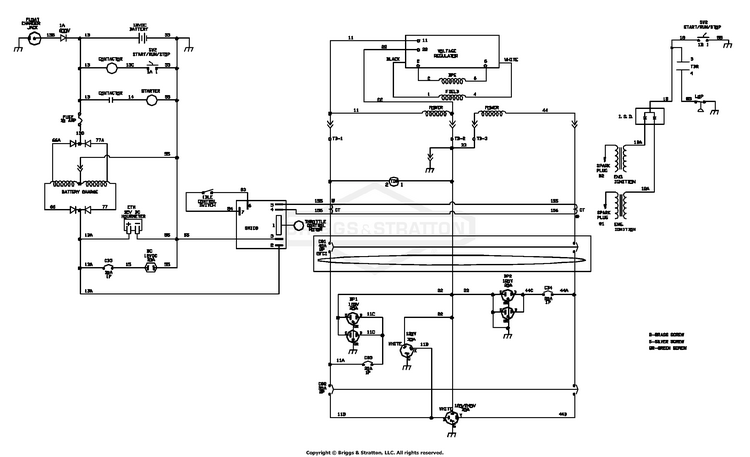

Wiring Schematic

...

No Parts Available for this Schematic
