1932-1 Briggs and Stratton Portable Generator 4,000 Watt PRO CSA

Model: 1932-1

Save Part Not Listed?
product name

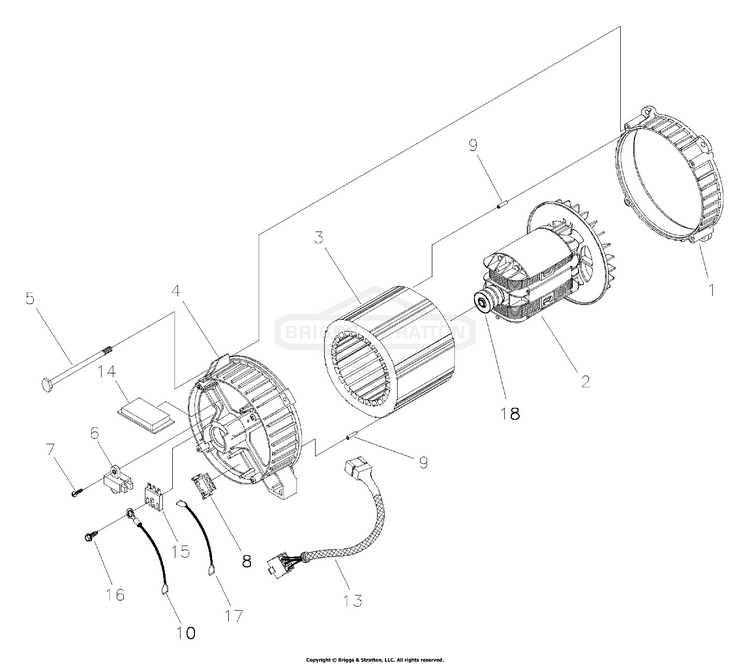

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR (Includes Item #18) BS-193034GS
...
3
STATOR BS-193035AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll, 4mm x 10 BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
13
HARNESS,Wire, Power BS-193157GS
...
14
BOARD, Circuit, System Control BS-205858GS
...
15
RECTIFIER BS-65795GS
...
16
TAPTITE, M5 - 0.8 x 20 BS-66849AGS
...
17
WIRE, Ground BS-192403XGS
...
18
BEARING BS-65791GS

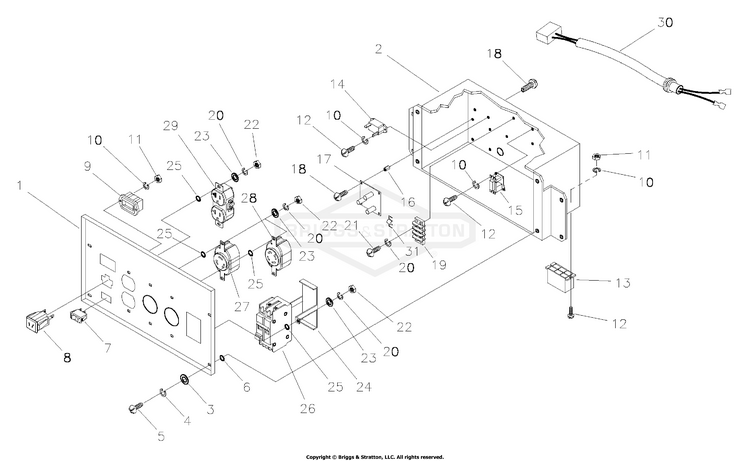

Control Panel

...
...
1
PANEL, Control BS-~NSP
...
2
BOX, Control Panel BS-B192835GS
...
7
SWITCH, Rocker BS-82538GS
...
8
OUTLET,12VDC, Snap BS-90418GS
...
9
METER, Hour BS-77604GS
...
13
HOUSING, Receptacle BS-22694GS
...
14
BREAKER, Circuit, 12V, 10A BS-87962GS
...
15
TRANSFORMER, Idle Cnt BS-84028GS
...
16
STANDOFF, Hex BS-64525GS
...
17
PCB, Idle Control BS-193362GS
...
19
STRIP,Terminal BS-B5052GS
...
24
BRACKET, GFCI Breaker BS-192931GS
...
26
BREAKER, Circuit, GFCI, 20A BS-192828BGS
...
27
OUTLET-120V TL30A BS-705932
...
28
OUTLET, 120/240V, 20A BS-68867GS
...
29
OUTLET, 120V, 20A, Duplex BS-68759GS
...
30
HARNESS,Wire BS-193036GS
...
31
JUMPER,Terminal Block BS-46669GS

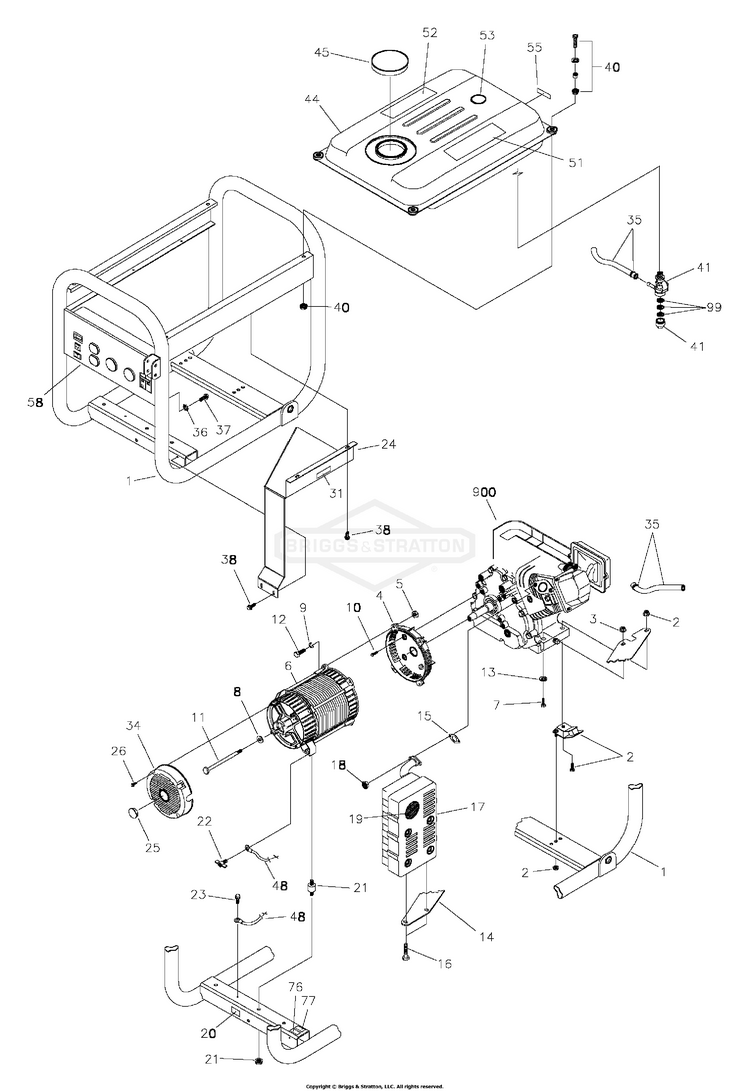

Main Unit

...
...
1
CRADLE BS-B192658GS
...
2
KIT, Mount,Vibration, 45° BS-194150GS
...
3
NUT, M8 Flange Serrated BS-67989GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
6
ASSY, Alternator (see "Alternator") BS-~NSP
...
8
WASHER, M8 Flat BS-96796GS
...
10
SCREW, 3/8-16 x 7/8 BS-190274DGS
...
11
HHCS, 5/16-24 x 6-1/2 BS-53122GS
...
14
BRACKET, Muffler BS-193021GS
...
15
GASKET, Exhaust BS-710082
...
17
MUFFLER BS-192898GS
...
18
NUT BS-710090
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
DECAL, Ground BS-B4986GS
...
21
MOUNT-VIBRATION BS-194153GS
...
22
SCREW, Wing M6 1.0 x 16 BS-86494GS
...
23
SCREW BS-313085GS
...
24
SHIELD, Heat BS-J193053GS
...
25
CAP BS-191190GS
...
26
TAPTITE, M5-0.8 x 10 BS-74908GS
...
31
DECAL, Caution Hot Muffler BS-191436GS
...
34
COVER, RBC, Platic with Cap BS-195422GS
...
35
LINE, Fuel BS-791745
...
37
SCREW, #10 Self Drilling BS-B2153GS
...
38
SCREW, 12-24 x 1/2 THD Forming BS-192376GS
...
40
KIT, Fuel Tank Hardware BS-194212GS
...
41
VALVE, Fuel BS-310574GS
...
44
ASSY, Tank, Fuel (Includes Items 41, 51, 52 & 53) BS-195988GS
...
45
CAP, Fuel,Vented BS-189135GS
...
48
WIRE, Ground BS-195373GS
...
51
DECAL, Danger BS-194984GS
...
52
DECAL, Start Instructions BS-94480GS
...
53
GAUGE, Fuel BS-189136GS
...
55
DECAL, Fuel Shutoff BS-197797GS
...
58
ASSY, Control Panel (see "Control Panel") BS-195512GS
...
76
DECAL, Neutral Ground BS-195459GS
...
77
DECAL, Ground French BS-195940GS
...
99
VALVE, Fuel BS-310574GS
...
PLUG-120/240V TL20A Not Illustrated BS-100522GS
...
PLUG, 125V 30A, 3 Prong Not Illustrated BS-100523GS
...
CABLE, Battery Charge Not Illustrated BS-65787GS
...
OIL BOTTLE Not Illustrated BS-BB3061GS
...
MANUAL, Operator's Not Illustrated BS-279775WST
...
MANUAL, Operator's Not Illustrated BS-195541GS
...
DECAL, Family CA, EVP Not Illustrated BS-199383GS
...
KIT, Decals Service Not Illustrated BS-193642GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories BS-100126

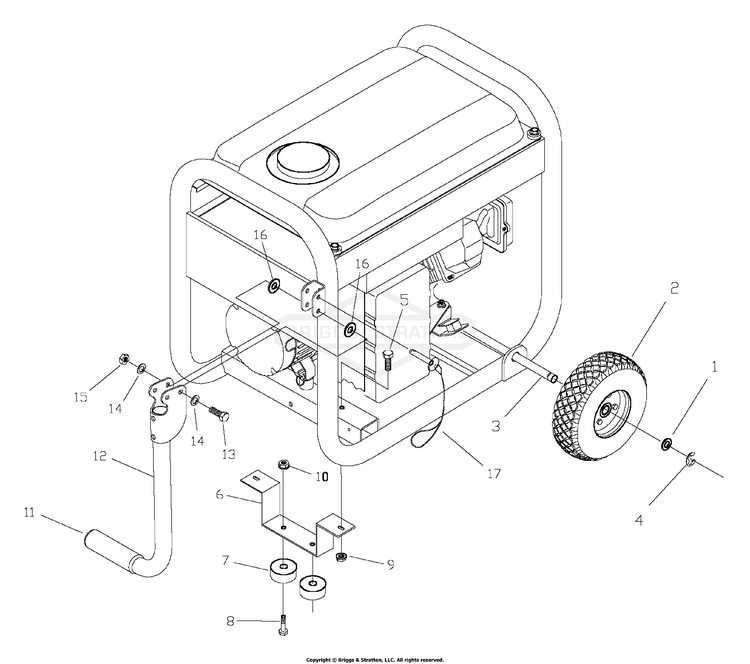

Wheel Kit

...
...
2
WHEEL BS-209636GS
...
3
AXLE, 5/8" x 22.20" BS-191267PGS
...
4
E-RING BS-703977
...
6
ASSY, Support w/ Vibe Mounts BS-200543GS
...
7
VIBE MOUNT BS-87841GS
...
9
NUT, M8 Flange Serrated BS-67989GS
...
10
NUT, 1/4 - 20 Flange Nylok BS-194005GS
...
11
GRIP BS-192477GS
...
12
ASSY, Handle (Includes Item 11) BS-B193166GS
...
17
PIN, Handle Release BS-B4135GS

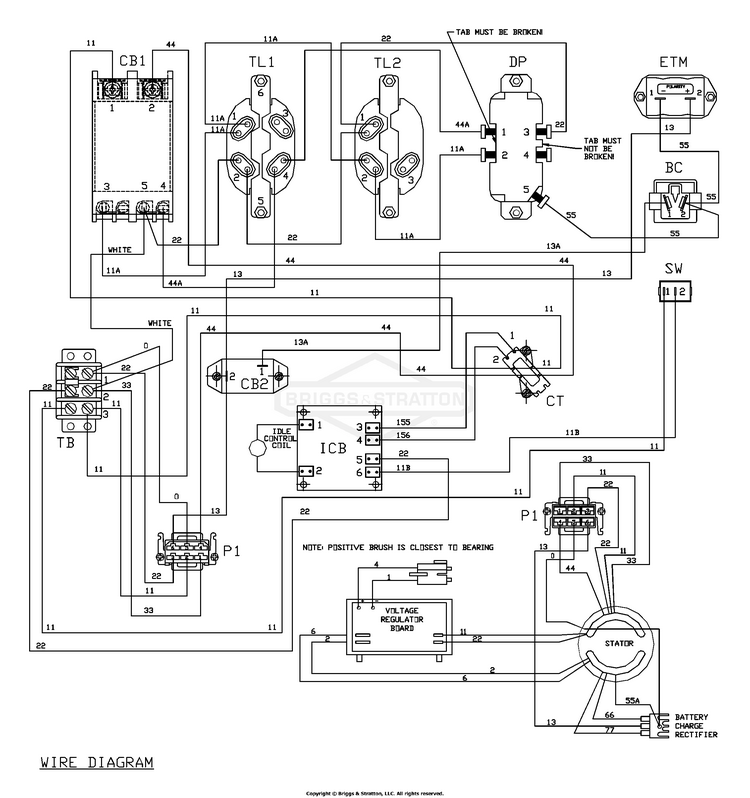

Wiring Diagram

...

No Parts Available for this Schematic

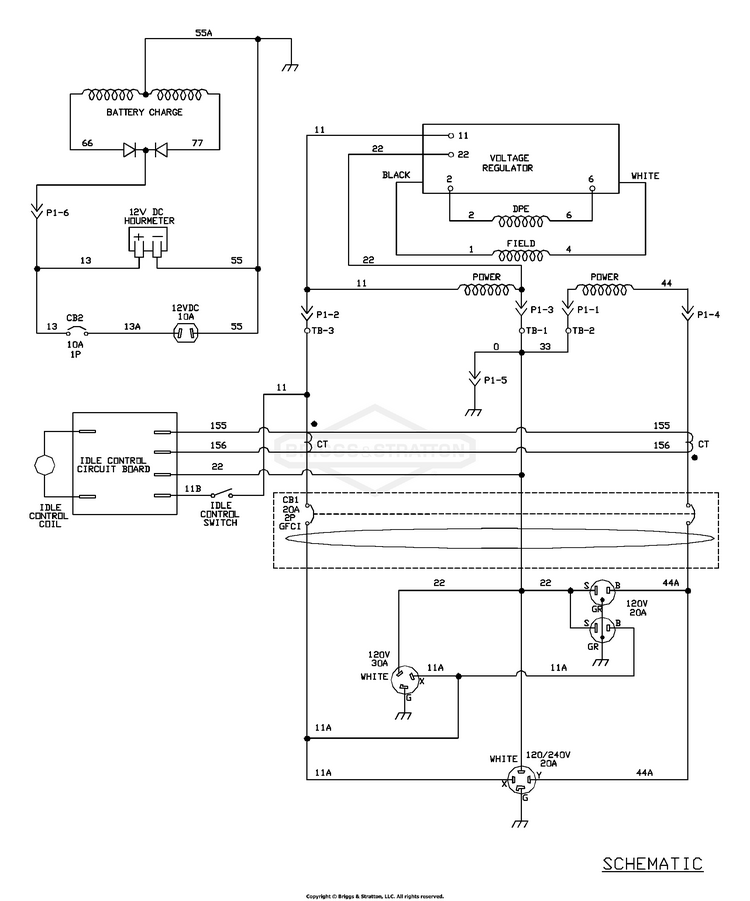

Wiring Schematic

...

No Parts Available for this Schematic
