190432-6002-99 Briggs and Stratton Engine

Model: 190432-6002-99

Back To Assemblies

Save Part Not Listed?
product name

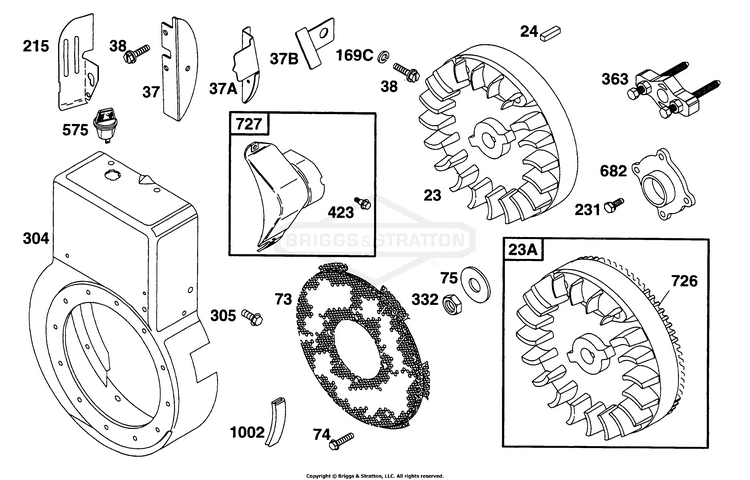

Blower Hsg,Flywheels,Screen

...
...
23A
FLYWHEEL (Engines With Alternator) BS-391983
...
23
FLYWHEEL BS-298260
...
24
KEY, Flywheel BS-222698S
...
37B
GUARD, Flywheel BS-690488
...
37A
GUARD-FLYWHEEL (Engines with Rope or Recoil Starter) BS-690490
...
37
GUARD, Flywheel BS-690411
...
38
SCREW BS-690364
...
73
SCREEN-ROTATING BS-691754
...
74
SCREW (Rotating Screen) BS-690345
...
75
WASHER (Flywheel) BS-690582
...
169C
WASHER, 5/16" LOCK BS-5025170SM
...
215
GUIDE, Air BS-691170
...
231
SCREW BS-94807
...
304
HOUSING, Blower BS-491592
...
305
SCREW (1/2) BS-692198
...
332
NUT (Flywheel) BS-690662
...
363
PULLER, Flywheel BS-19203
...
423
SCREW BS-691097
...
575
SWITCH, Rotary (Mechanical Governor) BS-692309
...
682
SHIELD, Starter BS-211516
...
726
GEAR, Ring (Aluminum) BS-696537
...
727
COVER, Starter Drive BS-395405
...
1002
SHIELD, Blower Housing BS-280738
