190432-6002-99 Briggs and Stratton Engine

Model: 190432-6002-99

Back To Assemblies

Save Part Not Listed?
product name

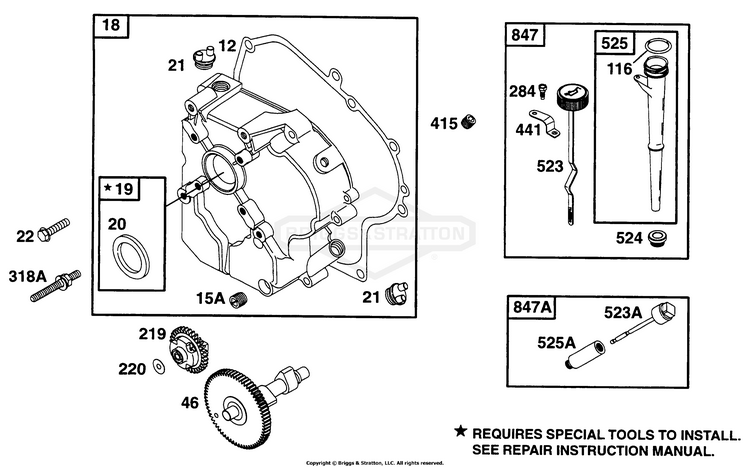

Crankcase Cov, Cam, Oil Fill

...
...
12
GASKET, Crankcase (.015) Included in Gasket Set-Part No. 299577 BS-692221
...
12
GASKET, Crankcase (.005) Included in Gasket Set-Part No. 299577 BS-27876
...
12
GASKET, Crankcase (.009) Included in Gasket Set-Part No. 299577 BS-27877
...
15A
PLUG, Oil Drain (Flush) BS-691680
...
18
COVER, Crankcase BS-496980
...
19
KIT, Bushing/Seal (PTO Side) BS-295964
...
20
SEAL, Oil Included in Gasket Set-Part No. 299577 BS-391086S
...
21
CAP, Oil Fill BS-281658S
...
22
SCREW (Crankcase Cover) BS-691103
...
46
CAMSHAFT BS-214786
...
116
SEAL, O-Ring (Oil Fill) Included in Gasket Set-Part No. 299577 BS-691870
...
219
GEAR, Governor BS-494845
...
220
WASHER (Governor Lever) BS-691724
...
284
SCREW BS-691130
...
318A
STUD (2 1/2) BS-691695
...
415
PLUG, Oil Drain (1/8-27 NPTF Hex. Socket) (Impulse Pump Hole) BS-690343
...
441
BRACKET, Oil Fill BS-690501
...
523A
DIPSTICK/CAP ASSEMBLY BS-297357
...
523
DIPSTICK BS-691386
...
524
SEAL, Dipstick Tube Included in Gasket Set-Part No. 299577 BS-281370S
...
525A
TUBE, Dipstick BS-691257
...
525
TUBE, Dipstick BS-691389
...
847A
DIPSTICK/TUBE ASSEMBLY BS-493955
...
847
DIPSTICK/TUBE ASSEMBLY BS-399901
