190432-6002-99 Briggs and Stratton Engine

Model: 190432-6002-99

Back To Assemblies

Save Part Not Listed?
product name

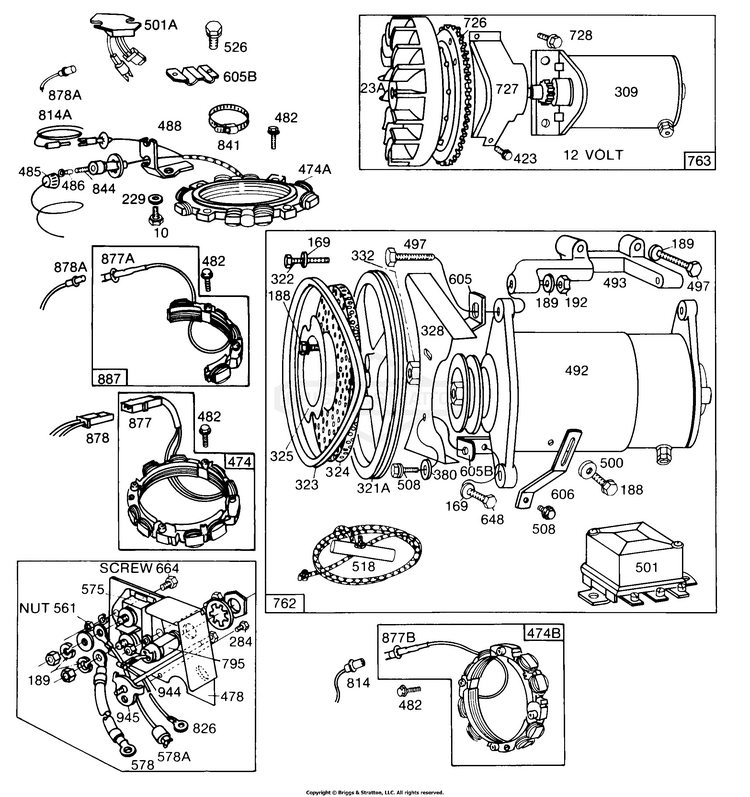

Electric Starters

...
...
10
SCREW BS-691666
...
23A
FLYWHEEL (Aluminum Ring Gear) For use only on electric starter engines WITHOUT ALTERNATOR (Includes aluminum ring gear). For use only with starter motors with Plastic Drive Gear. BS-392034
...
23A
FLYWHEEL (Engines With Alternator) For use on engines WITH ALTERNATOR (Includes aluminum ring gear). For use only with starter motors with Plastic Drive Gear. BS-391983
...
169
WASHER (Blower Housing) BS-22097GS
...
188
SCREW (5/16-18 X 3/4) BS-691058
...
189
WASHER, 5/16" LOCK BS-5025170SM
...
192
LOCKNUT (5/16-18) BS-691105
...
229
WASHER BS-690390
...
284
SCREW (10-32 X 3/8) BS-690664
...
309
MOTOR, Starter (3 1/16 Housing) Old Style: Brush End Head is 13/16 Wide. BS-497595
...
309
MOTOR, Starter (3 1/2 Housing) (Briggs & Stratton 110V) BS-396505
...
309
MOTOR, Starter (3 1/16 Housing) BS-497595
...
321A
PULLEY, Starter BS-210899
...
322
SCREW BS-90931
...
323
BELT, Vee BS-67708
...
324
SCREEN, Rotating BS-221067
...
325
PULLEY, Rope Starter (With Screen) BS-299307
...
328
GUARD, Belt BS-221447
...
332
NUT (Flywheel) BS-690662
...
380
WASHER BS-91324
...
423
SCREW BS-93410
...
423
SCREW BS-691002
...
474B
ALTERNATOR (Tri Circuit) (9 Amp Regulated) BS-84012661
...
474A
ALTERNATOR (Dual Circuit With Fuse) BS-84012663
...
474
ALTERNATOR (Dual Circuit) BS-84012663
...
478
KIT, Panel (Starter) Used Before Code Date 81102100 BS-395408
...
478
KIT, Panel BS-395408
...
482
SCREW (Tapping) BS-691183
...
485
CAP, Wire/Fuse BS-390888
...
486
RECTIFIER BS-391507
...
488
BRACKET, Mounting BS-222211
...
492
MOTOR, Starter (12v Delco-Remy #1101695 & Pulley #1949358) BS-296028
...
493
BRACKET, Starter Motor BS-211594
...
497
BOLT, 5/16-18 X 1-3/4 (5/16-18 X 1-3/4) BS-5025011X14SM
...
500
WASHER BS-690282
...
501A
REGULATOR (Flat Mount, Delco-remy) BS-295924
...
501
REGULATOR (10 Amp) BS-845907
...
508
SCREW (5/8) BS-692198
...
518
KIT, Handle/Rope BS-69932S
...
526
SCREW (Control Panel) BS-690297
...
561
NUT (Starting Switch) BS-691029
...
575
SWITCH-STARTING BS-692303
...
578A
WIRE ASSEMBLY (Starter Switch To Alternator) BS-393109
...
578
CABLE, Starter BS-690630
...
605B
BRACKET, Support (Lower) BS-297171
...
605
BRACKET, Mounting BS-691177
...
606
STRAP, Adjusting BS-221443
...
648
SCREW BS-91439
...
664
SCREW (1/4-20 X 3/4) BS-691681
...
726
GEAR, Ring BS-696537
...
727
GUARD-FLYWHEEL Uses: 93623 Screw (2) BS-690490
...
727
COVER, Starter Drive (Motor 392749) BS-395405
...
727
COVER, Starter Drive BS-395405
...
728
SCREW (5/16-18 X 11/16) BS-691058
...
762
KIT, Electric Starter (12 Volt) (Low Position) BS-297335
...
763
KIT, Electric Starter (12 Volt Gear Drive) BS-394952
...
795
SWITCH, Toggle (Toggle Switch) Uses: 93888 Nut-Hex. BS-496590
...
795
SWITCH, Key BS-392833
...
814A
HARNESS, Alternator (Ac Only) BS-390867
...
814
HARNESS, Alternator (Tri Circuit) BS-691955
...
826
WIRE ASSEMBLY (Starter Switch to Ground Wire Terminal) BS-690647
...
841
CLAMP BS-690635
...
844
SPRING, Diode BS-261269
...
877B
WIRE/CONNECTOR, Alternator (Tri Circuit) (9 Amp) BS-393537
...
877A
WIRE/CONNECTOR, Alternator (10 Amp Regulated) BS-393814
...
877
WIRE/CONNECTOR, Alternator BS-393456
...
878A
WIRE ASSEMBLY (Dc Only) BS-692306
...
878
HARNESS, Wiring (Dual Circuit) BS-398661
...
887
ALTERNATOR (DC Only) BS-592828
...
944
SCREW (3 5/8 Housing) BS-690323
...
945
BRACKET, Starter Motor BS-692132
