product name

1894-0 Briggs and Stratton Portable Generator 7,000 Watt

Model: 1894-0

Save Part Not Listed?
product name

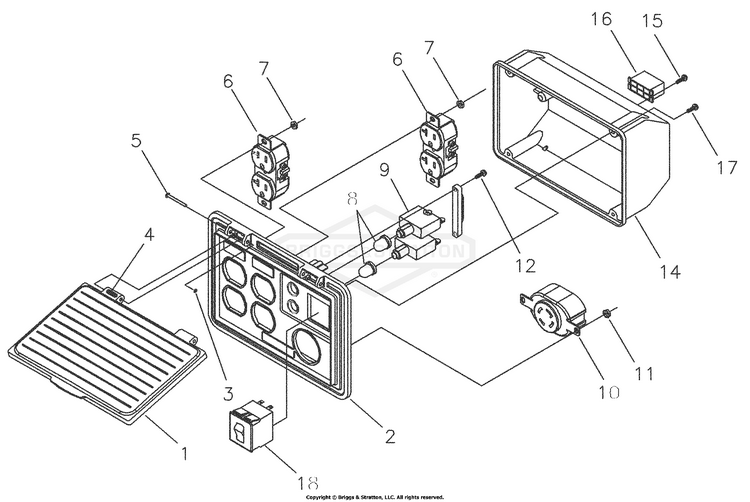

AC Control Panel

...
...
1
COVER, Lid, Control Panel BS-188914GS
...
2
CONTROL PANEL, Compact BS-192273BGS
...
3
CLIP, Hinge Pin Retainer BS-189167GS
...
4
SPRING, Hinge, Pin BS-189182GS
...
5
PIN, Hinge, Cover, Compact BS-189166GS
...
6
OUTLET, 120V, 20A, Duplex BS-68759GS
...
7
NUT BS-189165GS
...
8
CAP, Breaker, Circuit BS-84198GS
...
9
BREAKER-CIRCUIT 20A BS-209872GS
...
10
OUTLET, 120/240V Locking, 30A BS-43437GS
...
11
NUT BS-189164GS
...
12
SCREW BS-84543CGS
...
13
BAR, Retaining BS-93857GS
...
14
BOX, Rear Cover BS-192274GS
...
15
SCREW BS-82308GS
...
16
HOUSING, Receptacle BS-22694GS
...
17
SCREW BS-192241GS
...
18
BREAKER, Circuit, 30A BS-192785GS

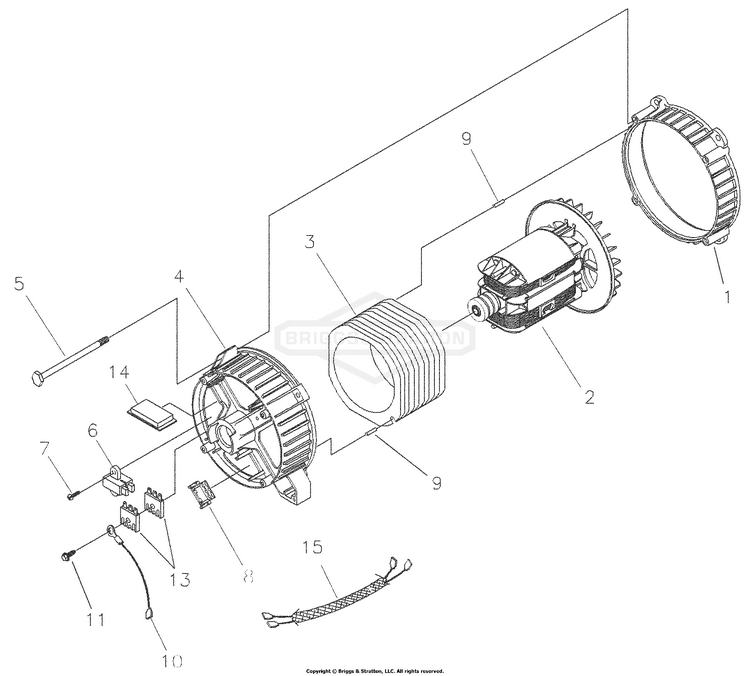

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-192171GS
...
3
STATOR BS-192186AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
SCREW BS-86308KGS
...
6
ASSY, Holder, Brush BS-66386GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
11
SCREW BS-66849CGS
...
13
RECTIFIER BS-65795GS
...
14
BOARD, Circuit, System Control BS-205858GS
...
15
HARNESS,Wire DC Charge BS-193074GS

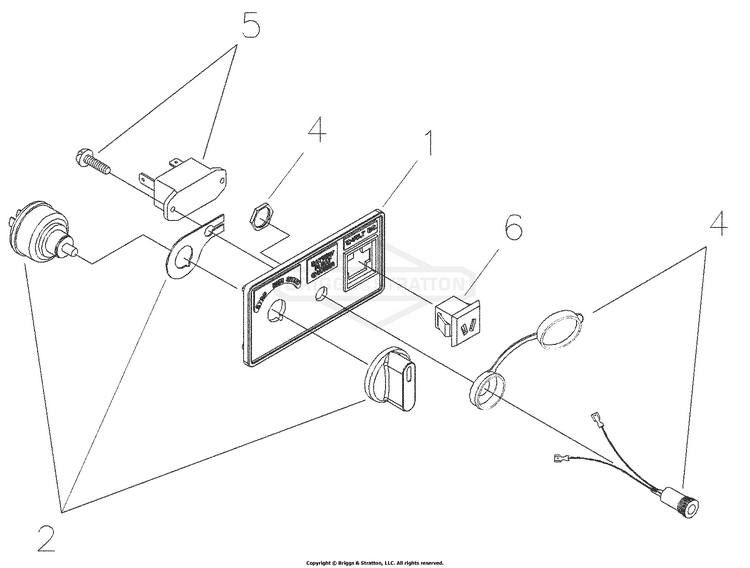

DC Control Panel

...
...
1
PANEL, DC Control BS-192367GS
...
2
KIT, SRS, Switch with Knob BS-194838GS
...
4
JACK, Coaxial BS-209393GS
...
5
KIT, Circuit Breaker BS-194839GS
...
6
OUTLET, 12VDC, Snap BS-90418GS

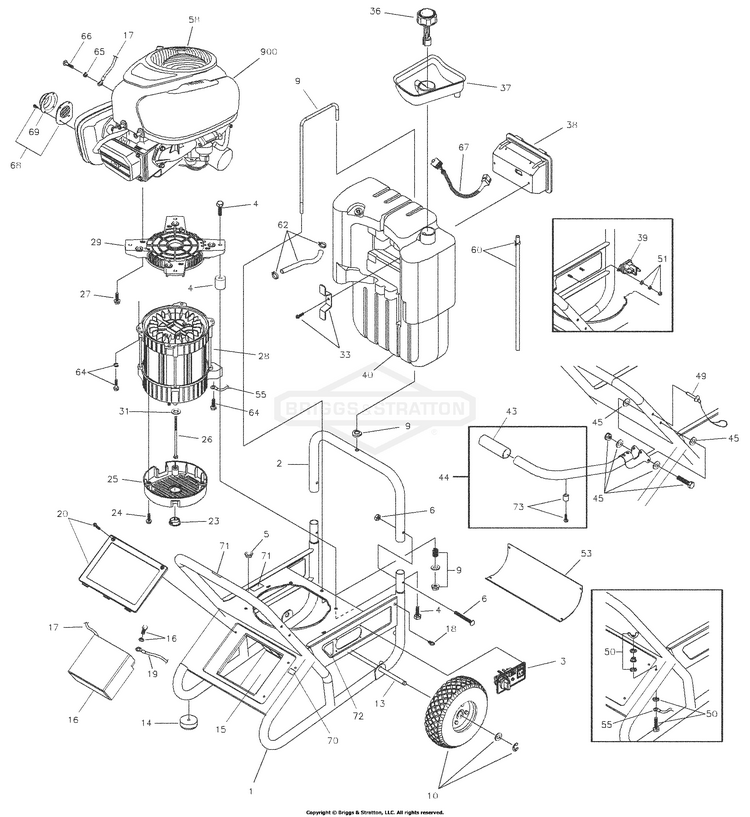

Main Unit

...
...
1
CRADLE BS-M191821GS
...
2
CRADLE,Top BS-M193086GS
...
3
ASSY, DC Control Panel (see "Control Panel") BS-~NSP
...
4
KIT,Vibration Mount, Eng/Alt BS-194727GS
...
5
BUSHING, Snap BS-186173GS
...
6
KIT, Cradle Top Hardware BS-194720GS
...
9
KIT, Rod Mounting Tank w/Hrdwr BS-194726GS
...
10
KIT,Wheel BS-194509GS
...
13
AXLE BS-191267GGS
...
14
KIT,Vibration Mount Hardware (2 sets) BS-192553GS
...
15
STRIP, Foam BS-193320GS
...
16
BATTERY, 12V w/Hardware BS-193463GS
...
17
CABLE, Blk, Battery to Engine BS-185939LGS
...
18
CLIP, Retainer, Fuel Hose BS-192940GS
...
19
CABLE, Red, Battery to Solenoid BS-189302EGS
...
20
KIT, Battery Cover w/Hrdwr BS-194722GS
...
23
CAP, Bolt, Rotor BS-191190GS
...
24
SCREW BS-74908GS
...
25
COVER, RBC, Plastic BS-191029GS
...
26
SCREW BS-187365HGS
...
27
SCREW-HEX WSHR HD TAP BS-2828635SM
...
28
ASSY,Alternator (see "Alternator") BS-~NSP
...
29
ADAPTER, Engine BS-191793GS
...
31
WASHER BS-96796GS
...
33
KIT, Retaining Brckt Panel BS-194721GS
...
36
CAP, Fuel Gauge BS-191826GS
...
37
SHIELD, Fuel Fill BS-192921GS
...
38
ASSY, Control Panel (see "Control Panel") BS-192277GS
...
39
SOLENOID, Starter BS-691656
...
40
ASSY,Tank, 7-Gallon, with Labels BS-193345GS
...
43
GRIP, Handle BS-192477GS
...
44
ASSY, Handle (Includes Items 43 & 73) BS-M193316GS
...
45
KIT, Fold down Handle Hardware BS-194724GS
...
49
PIN, Handle Release BS-B4135GS
...
50
KIT, Grounding Hardware BS-194533GS
...
51
KIT, Solenoid Hardware BS-194723GS
...
53
KIT, PLT, Skid, SRV BS-193344GS
...
55
HARNESS, Ground BS-192810GS
...
58
GUARD, Recoil BS-192251GS
...
60
KIT, Hose, Fuel Overflow w/ Clamp BS-194730GS
...
62
LINE, Fuel BS-791745
...
64
KIT, Mounting Hrdwr Adpter Alt BS-194728GS
...
65
WASHER, Lock BS-22129GS
...
66
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
67
HARNESS,AC BS-192809GS
...
68
ARRESTOR, Spark BS-794945
...
69
DEFLECTOR, Muffler BS-396903
...
70
DECAL, Ground BS-B4986GS
...
71
DECAL, Caution Hot Muffler BS-191436GS
...
72
DECAL, Battery Instructions BS-193504GS
...
73
KIT, Bumper, Recess w/Hrdwr BS-194725GS
...
900
ENGINE BS-~NSP
...
HARNESS, DC Not Illustrated BS-192508GS
...
TRAY, Oil Drain Not Illustrated BS-191824GS
...
MANUAL, Owners Not Illustrated BS-192670GS
...
MANUAL, Engine Not Illustrated BS-MS5936
...
OIL, Bottle Not Illustrated BS-BB3061GS
...
CABLE, Red, Solenoid to Starter Not Illustrated BS-189302FGS
...
ASSY, Holder Fuse Not Illustrated BS-A3746GS
...
KIT, Hardware, Battery Term. Not Illustrated BS-193347GS
...
KIT, Decal, 01894 Not Illustrated BS-193410GS
...
CABLE, Battery Charge Not Illustrated BS-65787GS
...
CHARGER, Battery Not Illustrated BS-84002790

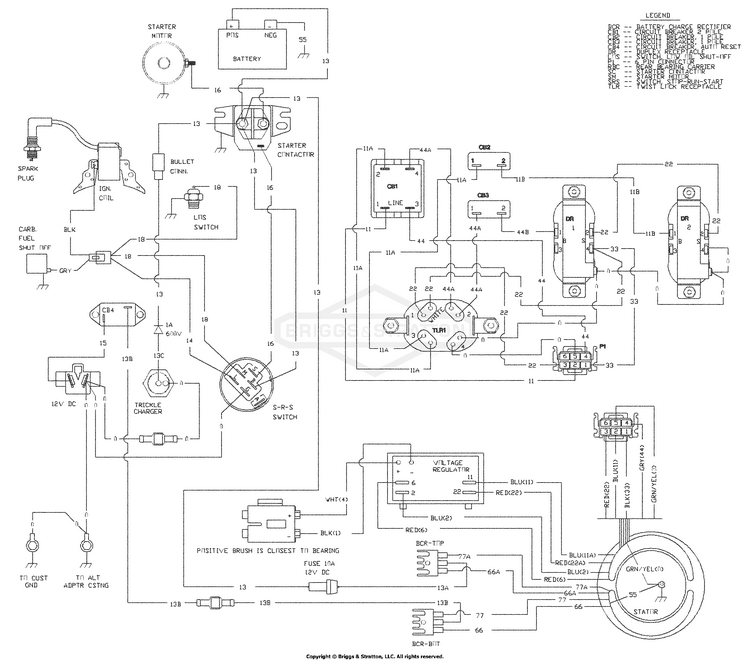

Wiring Diagram

...

No Parts Available for this Schematic

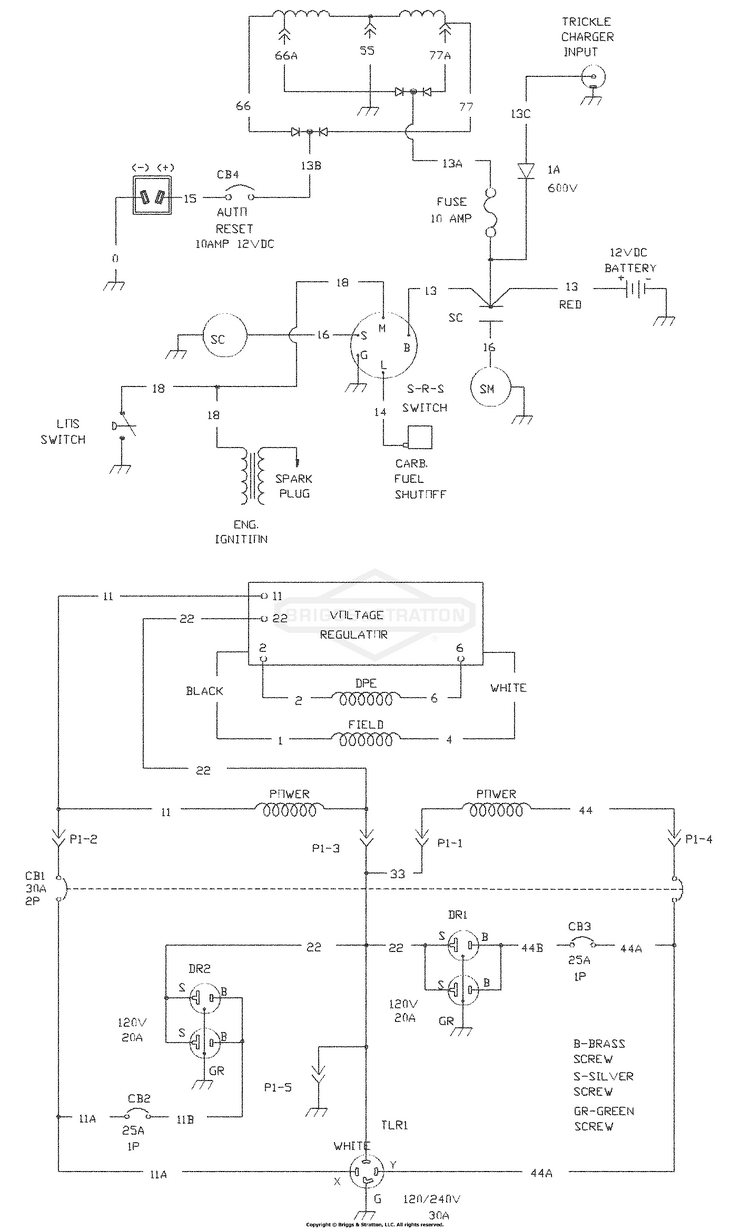

Wiring Schematic

...

No Parts Available for this Schematic
