product name

1892-0 Briggs and Stratton Portable Generator 5,000 Watt

Model: 1892-0

Save Part Not Listed?
product name

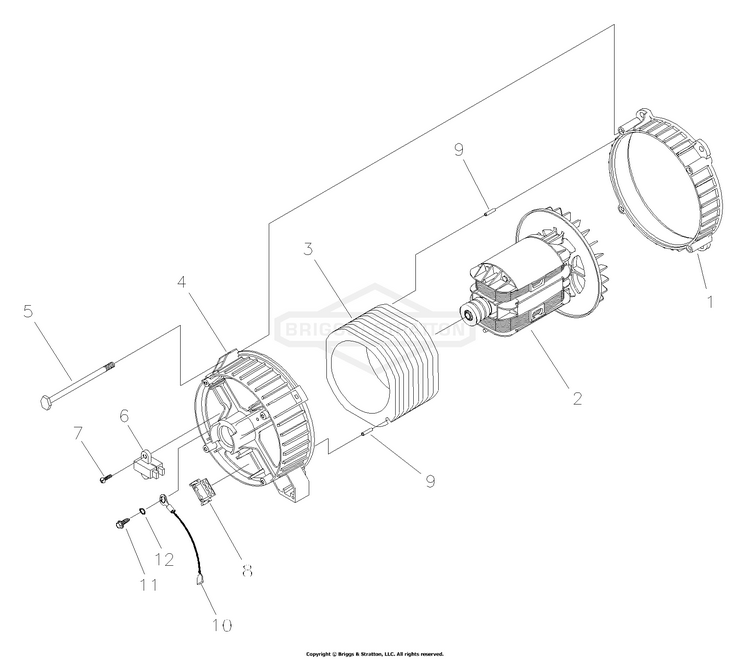

Alternator

...
...
1
ADAPTER, Alternator BS-209599GS
...
2
ROTOR BS-191043GS
...
3
STATOR BS-191042AGS
...
4
RBC, (with O-Ring p/n 189197GS) BS-193336GS
...
5
SCREW BS-86308CGS
...
6
ASSY, Holder, Rectifier/Brush BS-91825GS
...
7
HHCS, M5-0.8 X 16 BS-49815GS
...
8
RECEPTACLE, 6 pin BS-22694GS
...
9
PIN, Roll BS-81917GS
...
10
ASSY,Wire, Ground BS-193428AGS
...
11
SCREW BS-74908GS
...
12
WASHER BS-23762GS

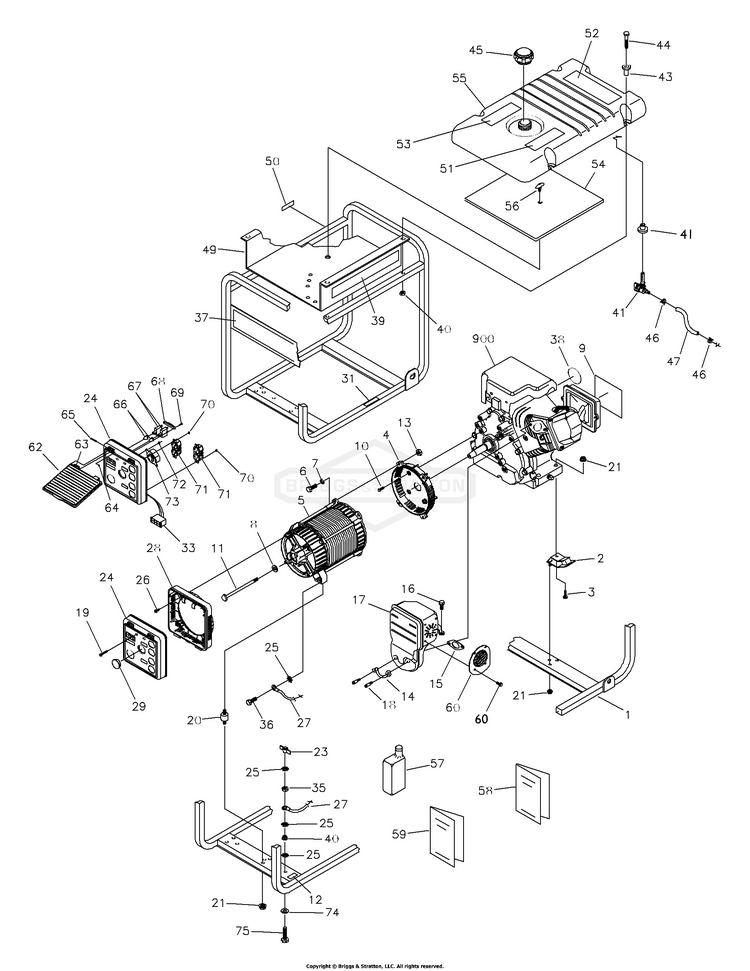

Main Unit

...
...
1
CRADLE BS-M191955GS
...
2
MOUNT,Vibration BS-70642GS
...
3
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
4
HOUSING, Engine Adapter BS-190220GS
...
5
ASSY, Alternator (See "Alternator") BS-~NSP
...
6
BOLT, M8-1.25 X 25MM BS-5025237X25YP
...
7
WASHER, Lock BS-22129GS
...
8
WASHER BS-96796GS
...
9
DECAL, Cover, Air Cleaner BS-192146GS
...
10
SCREW BS-190274BGS
...
11
SCREW BS-47480GS
...
12
DECAL, Ground, Green BS-B4986GS
...
13
NUT BS-45771GS
...
14
TAB, Locking BS-695400
...
15
GASKET, Muffler BS-794818
...
16
SCREW BS-695312
...
17
MUFFLER (Includes Items 14, 15, 16 & 18) BS-794949
...
18
SCREW BS-695399
...
19
SCREW BS-191521GS
...
20
MOUNT-VIBRATION BS-194153GS
...
21
NUT BS-67989GS
...
23
NUT,Wing BS-87680GS
...
24
PANEL, Control BS-191332AGS
...
25
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
26
SCREW BS-74908GS
...
27
WIRE, Ground BS-186790EGS
...
28
ADAPTER PANEL BS-191427GS
...
29
CAP BS-191190GS
...
31
DECAL, Hot Muffler BS-77816GS
...
33
HOUSING, Receptacle BS-22695GS
...
35
NUT BS-49813GS
...
36
SCREW BS-43146GS
...
37
DECAL, Billboard BS-192601GS
...
38
DECAL, Recoil BS-192484GS
...
39
DECAL, Heat Shield BS-192148GS
...
40
NUT, Lock BS-77395GS
...
41
KIT,VLV, FUEL, SRV BS-192980GS
...
43
GROMMET,Tank BS-83465GS
...
44
SCREW BS-78831BGS
...
45
CAP, Fuel BS-90878GS
...
46
CLAMP, Hose BS-691038
...
47
HOSE, Fuel BS-30340GS
...
49
HEATSHIELD BS-208564GS
...
50
DECAL, Fuel Shut-off BS-73054GS
...
51
DECAL, Danger BS-194799GS
...
52
DECAL, Start Instructions BS-189235GS
...
53
DECAL, Gas Fill BS-188333GS
...
54
INSULATION BS-92665GS
...
55
ASSY,Tank, Fuel (Includes Item 41) BS-193500GS
...
56
CLIP, Insulation BS-85000GS
...
57
BOTTLE, Oil BS-BB3061GS
...
58
MANUAL, Owners BS-191958GS
...
59
MANUAL, Engine BS-275092
...
60
ARRESTOR, Spark BS-794945
...
62
COVER, Control Panel BS-191426GS
...
63
SPRING, Hinge Pin BS-189182GS
...
64
CLIP, Hinge Pin Retainer BS-189167GS
...
65
PIN, Hinge Cover BS-189166GS
...
66
CAP, Circuit Breaker BS-84198GS
...
67
BREAKER-CIRCUIT 20A BS-209872GS
...
68
BAR, Retaining BS-93857GS
...
69
SCREW BS-84543CGS
...
70
NUT, Pal BS-189165GS
...
71
OUTLET, 120V, 20A BS-68759GS
...
72
NUT, Pal BS-189164GS
...
73
OUTLET, 120/240V, 30A BS-43437GS
...
74
WASHER BS-703332
...
75
SCREW BS-45757GS
...
900
ENGINE BS-~NSP

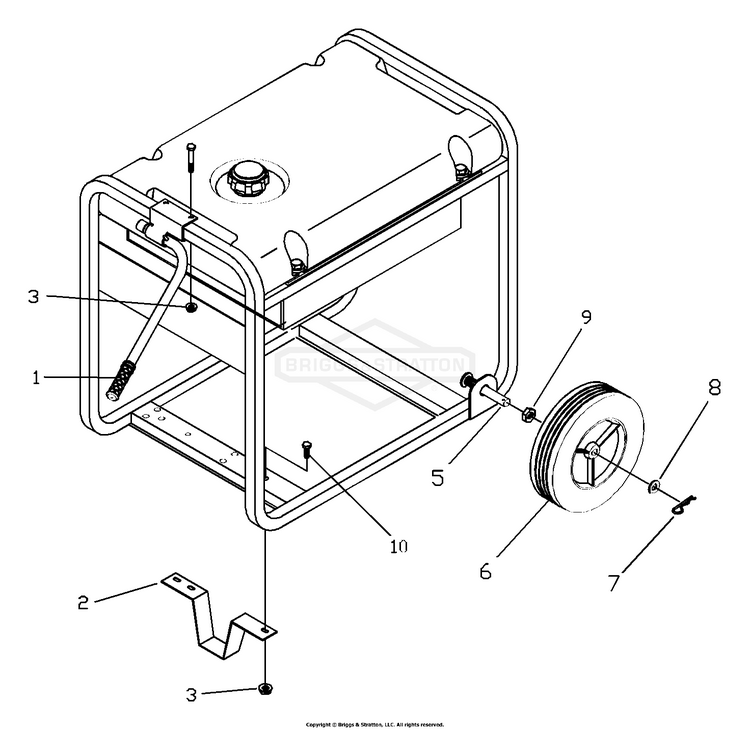

Wheel Kit

...
...
1
ASSY, Handle BS-189715GS
...
2
LEG, Mounting BS-94034GS
...
3
NUT, Lock BS-52858GS
...
4
SCREW BS-39287GS
...
5
AXLE BS-93728GS
...
6
WHEEL BS-197061GS
...
7
PIN, 3/32 X 1.6 BS-703300
...
8
WASHER BS-49808GS
...
9
NUT BS-94222QGS
...
10
CAPSCREW M8-1.25X16 BS-703988

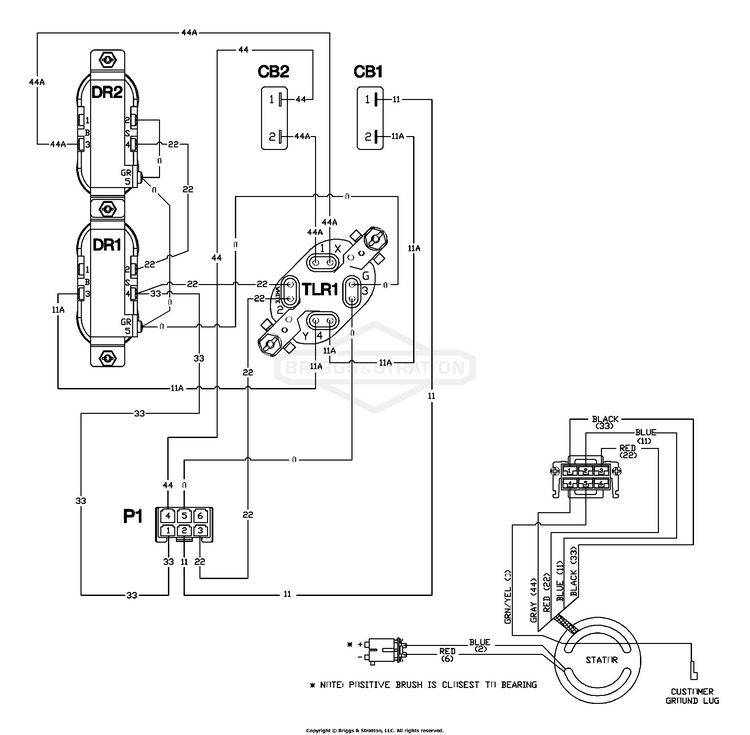

Wiring Diagram

...

No Parts Available for this Schematic

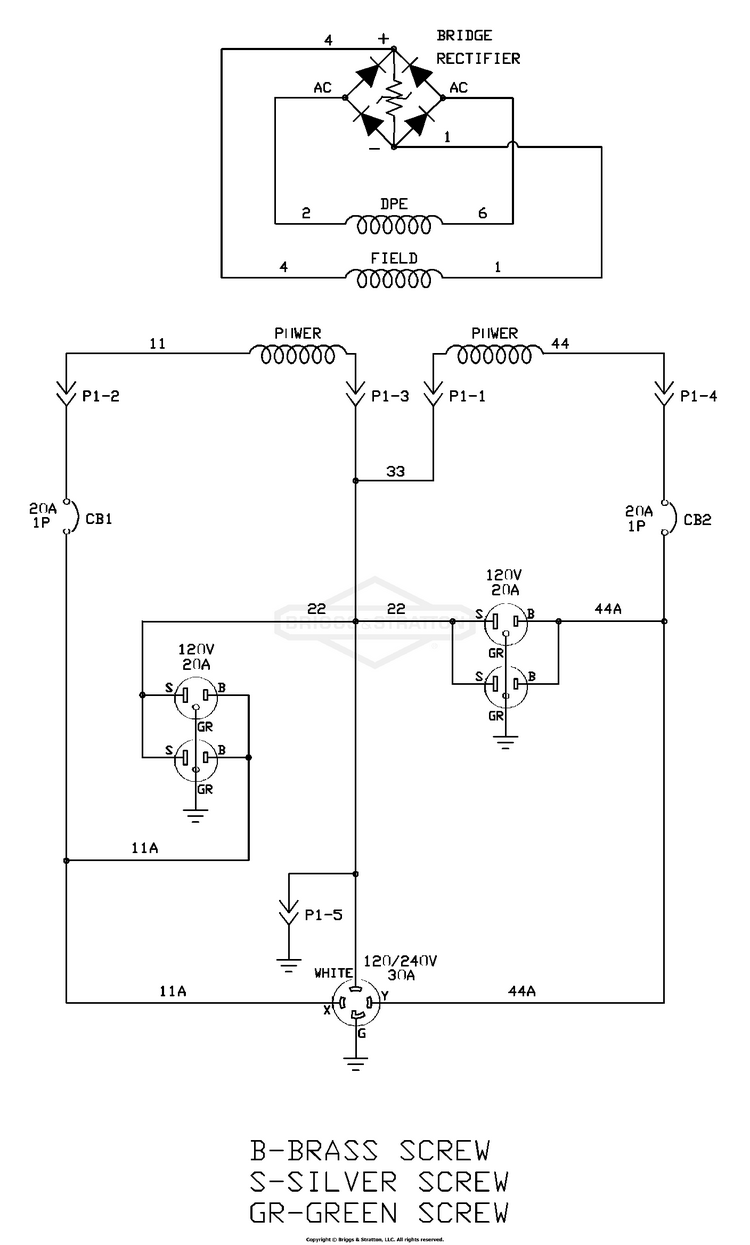

Wiring Schematic

...

No Parts Available for this Schematic
