185432-0302-E9 Briggs and Stratton Engine

Model: 185432-0302-E9

Back To Assemblies

Save Part Not Listed?
product name

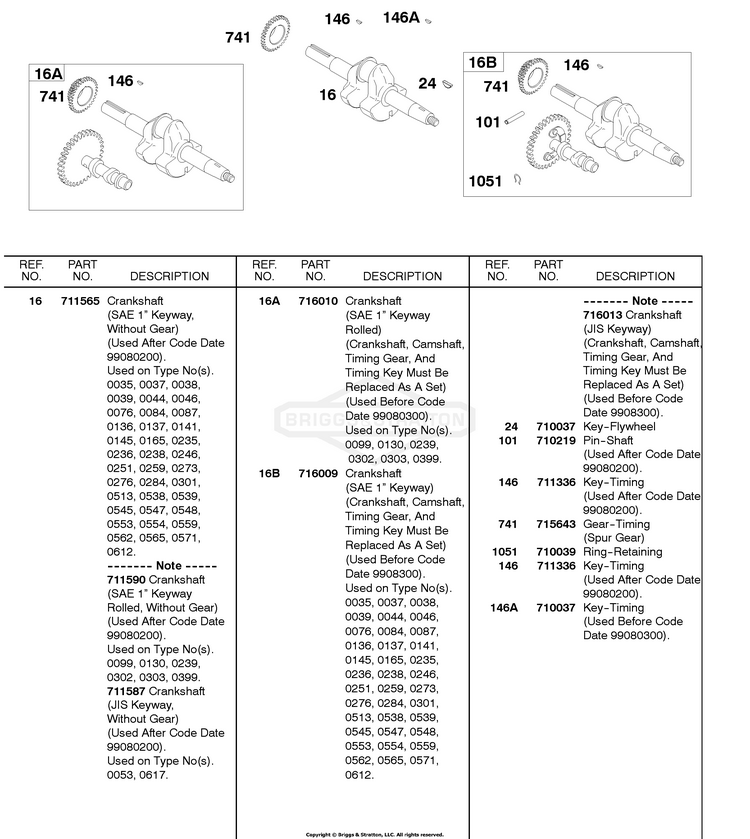

Crankshaft

...
...
16
CRANKSHAFT (SAE 1 Keyway Rolled, Without Gear) Used After Code Date 99080200 BS-716010
...
16A
CRANKSHAFT (SAE 1 Keyway Rolled)(Crankshaft, Camshaft, Timing Gear, And Timing KeyMust Be Replaced As A Set) Used Before Code Date 99080300 BS-716010
...
24
KEY, Flywheel BS-710037
...
101
PIN, Shaft BS-710219
...
146
KEY, Woodruff Used After Code Date 99080200 BS-711336
...
146A
KEY, Flywheel Used Before Code Date 99080300 BS-710037
...
741
GEAR, Timing (Spur Gear) BS-715643
...
1051
RING, Retaining BS-710039
