185432-0242-E1 Briggs and Stratton Engine

Model: 185432-0242-E1

Back To Assemblies

Save Part Not Listed?
product name

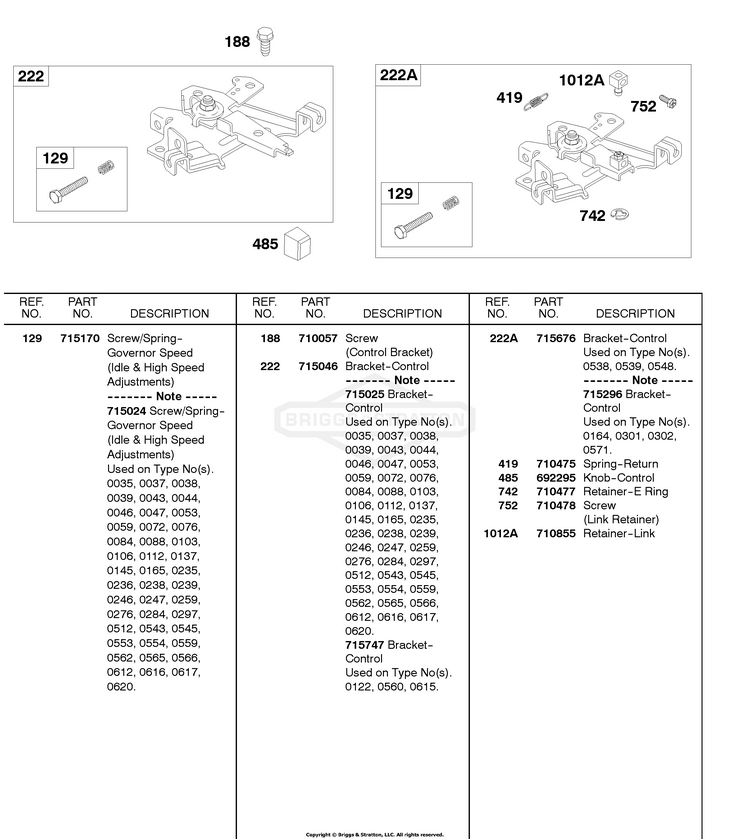

Control Brackets

...
...
129
SCREW (Governor) (Idle And High Speed Adjustment) BS-715170
...
188
SCREW (Control Bracket) BS-710057
...
222
BRACKET, Control BS-715046
...
419
SPRING, Governor (Return) BS-710475
...
485
KNOB, Air Cleaner Cover BS-692295
...
742
RETAINER, E Ring BS-710477
...
752
SCREW (Link Retainer) BS-710478
...
1012A
RETAINER, Link BS-710855
