1820-0 Briggs and Stratton Portable Generator G-Force 2500

Model: 1820-0

Back To Assemblies

product name

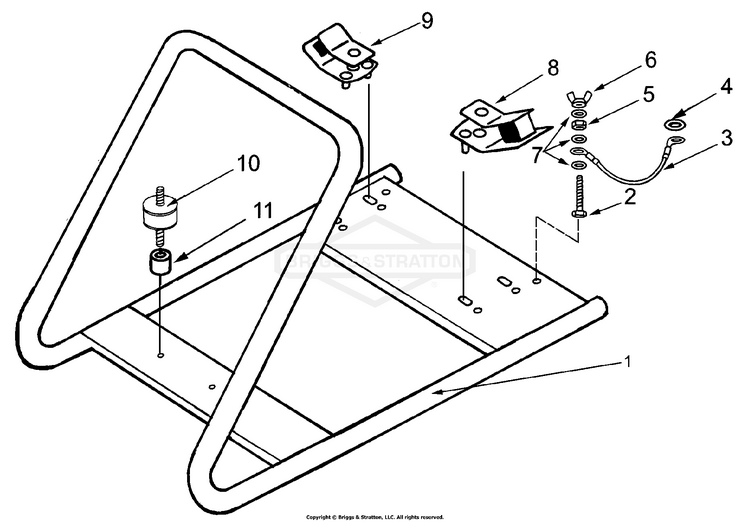

Frame And Fittings

...
...
1
CARRY HANDLE FRAME YELLOW BS-102609GS

...
2
SCREW SET M6-1.0X25MM PLATED BS-~NSP

...
3
LEAD EARTH ASSY 125MM BS-102378GS

...
4
WASHER SHAKEPROOF M8 INT BS-~NSP

...
5
NUT FULL M6-1.0 BS-~NSP

...
6
NUT WING M6-1.0 BS-102036GS

...
7
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP

...
8
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS

...
9
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS

...
10
VIBRATION MOUNT 32MM DIAMETER BS-102034GS

...
11
SPACER 4MM BS-102118GS

...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS

...
--
DECAL GND (Not Illustrated) BS-102048GS

...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS

...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS

...
--
DECAL G-FORCE 2500 (Not Illustrated) BS-102606GS

...
--
MANUAL GENERIC-G-FORCE (Not Illustrated) BS-102590GS
