1786-0 Briggs and Stratton Portable Generator 5,500 Watt 5500GCX

Model: 1786-0

Save Part Not Listed?
product name

Control Panel

...
...
1
PANEL, Control BS-F92570GS
...
2
WASHER, Rivet, 3/16 BS-1910531SM
...
3
WASHER, Lock BS-49226GS
...
4
SCREW BS-91526GS
...
5
SWITCH, Idle Control BS-82538GS
...
6
WASHER, Lock BS-82881GS
...
7
SCREW BS-43181GS
...
8
WASHER, Lock BS-43182GS
...
9
OUTLET, 12V BS-90418GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER-CIRCUIT 20A BS-209872GS
...
BREAKER, Circuit, 15 A Used on model 01787-0 BS-75207DGS
...
12
WASHER, Shakeproof BS-23365GS
...
13
OUTLET-120V TL30A BS-705932
...
14
OUTLET, 120V/240V, 30A Lock BS-43437GS
...
15
RECEP, GFCI 20 A Duplex BS-80409GS
...
RECEP, GFCI 15 A Duplex Used on model 01787-0 BS-94373GS
...
16
WASHER BS-43180GS
...
17
WASHER BS-847333
...
18
NUT BS-51715GS
...
19
SCREW BS-64526GS
...
20
BOARD, System Control BS-83970GS
...
21
STAND - OFF BS-64525GS
...
22
BREAKER, Circuit, 12V, 10A BS-87962GS
...
23
ASSY,Wire BS-84335GS
...
24
CONNECTION, Rbbr Grommet BS-84134GS
...
25
BOX, Control Panel BS-B92069GS
...
26
TRANSFORMER, Idle Control BS-84028GS
...
28
METER, Hour BS-77604GS
...
29
NUT BS-51714GS

Main Unit

...
...
1
CRADLE BS-G92432GS
...
2
SUPPORT, Engine BS-G92531GS
...
3
SUPPORT, Eng/Muffler BS-N92731GS
...
4
HOUSING, Engine Adapter BS-92247GS
...
5
ASSY, Rotor BS-92678GGS
...
6
ASSY, Stator BS-94980AGS
...
7
WASHER, Shakeproof BS-23762GS
...
8
WASHER BS-96796GS
...
9
WASHER, Lock BS-22129GS
...
10
SCREW BS-86307GS
...
11
SCREW BS-28092GS
...
12
MOUNT,Vibration BS-92609GS
...
13
MOUNT,Vibration BS-82857GS
...
14
BRACKET, Muffler BS-92532GS
...
15
GASKET, Exhaust BS-90239GS
...
16
SCREW, w/ Lock Washer BS-66476GS
...
17
MUFFLER BS-A7433GS
...
18
SCREW BS-40976GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, Roll BS-81917GS
...
21
DECAL, Ground BS-B4986GS
...
22
DECAL, Caution, Hot Muffler BS-77816GS
...
23
SCREW BS-B2153GS
...
24
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
SCREW BS-74908GS
...
27
BOLT, Stator BS-86308AGS
...
28
RECTIFIER, Battery Charge BS-65795GS
...
29
SCREW BS-66849AGS
...
TAPTITE, M5-0.8 X 30 Used on model 01787-0 BS-66849CGS
...
30
GROMMET, Rubber BS-67022GS
...
31
ASSY, Power Regulator BS-84132GS
...
32
ASSY, Brush Holder BS-66386GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
WASHER, Shakeproof BS-22769GS
...
36
SCREW,Wing BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, Flange Lock BS-77395GS
...
39
GROMMET,Tank BS-83465GS
...
40
SCREW BS-78331BGS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Gauge BS-B4363GS
...
44
ASSY,Tank, Fuel (Includes Items 41 & 42) BS-193500GS
...
45
SHIELD, Heat BS-J92039GS
...
SHIELD, Heat Used on model 01787-0 BS-192982GS
...
46
INSULATION BS-92665GS
...
47
CLIP, Insulation BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
49
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
50
DECAL, Fuel Shutoff BS-73054GS
...
51
DECAL, Danger BS-194799GS
...
52
SHIELD, Heat BS-192983GS
...
53
SCREW BS-56893GS
...
54
DECAL, Start Instructions BS-93826GS
...
55
NUT BS-189160GS
...
56
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
57
DECAL, Control Panel BS-191334GS
...
Used on model 01787-0 BS-191331GS
...
58
ASSY, Control Box (See "Control Panel" illustration and parts list) BS-92631GS
...
PNL, CNTRL, MGA FRC Used on model 01787-0 BS-B1473GS
...
59
DECAL, Gas Fill BS-188333GS
...
60
MANUAL, Engine BS-A8927GS
...
61
MANUAL, Owners BS-191337GS
...
62
FILTER, Oil BS-70185GS
...
63
CABLE, Battery Charge BS-65787GPGS
...
64
BOTTLE, Oil BS-BB3061GS
...
65
PLUG, 125V 30A 3-Prong BS-100523GS
...
66
ELEMENT,Air Cleaner BS-73111GS
...
67
SUBKIT,Tune Up BS-189712GS
...
68
SCREW Used on model 01787-0 BS-43116GS
...
69
BATTERY, 12V Used on model 01787-0 BS-193043GS
...
70
TRAY, Battery Used on model 01787-0 BS-192985GS
...
71
BOLT, 1/4-20 X 3/4" G Used on model 01787-0 BS-5025010X6SM
...
72
WASHER Used on model 01787-0 BS-22097GS
...
73
NUT, Hex, 1/4-20 Used on model 01787-0 BS-22127GS
...
74
BRACKET, Starter Switch Used on model 01787-0 BS-78289GS
...
75
NUT, 5/16-24 Used on model 01787-0 BS-703331
...
76
SWITCH, Starter Used on model 01787-0 BS-77282GS
...
77
ASSY,Wire Used on model 01787-0 BS-96113GS
...
78
ASSY,Wire Used on model 01787-0 BS-185939HGS
...
79
SCREW Used on model 01787-0 BS-52618GS
...
80
ASSY,Wire Used on model 01787-0 BS-189302CGS
...
81
WASHER, Rivet, 3/16 Used on model 01787-0 BS-1910531SM
...
82
NUT, Flange Hex Used on model 01787-0 BS-52856GS
...
83
PLUG, 240V, 30 A 4-Prong Used on model 01787-0 BS-43438GS
...
84
ASSY,Wrap, Cord Used on model 01787-0 BS-84883GS
...
900
ENGINE BS-~NSP

Wheel Kit

...
...
1
HANDLE,Wheel Kit BS-B93393BGS
...
2
SCREW BS-39287GS
...
3
NUT, Lock BS-52858GS
...
4
LEG, Support BS-B93394GS
...
5
VIBE MOUNT, with Washer BS-191413GS
...
7
SCREW BS-42909GS
...
8
CAPSCREW M8-1.25X16 BS-703988
...
9
Axle BS-191267WGS
...
10
SPACER,Wheel BS-B89635GS
...
11
ASSY,Wheel BS-89742GS
...
12
WASHER, 5/8" SAE BS-5025281SM
...
13
E-RING BS-703977

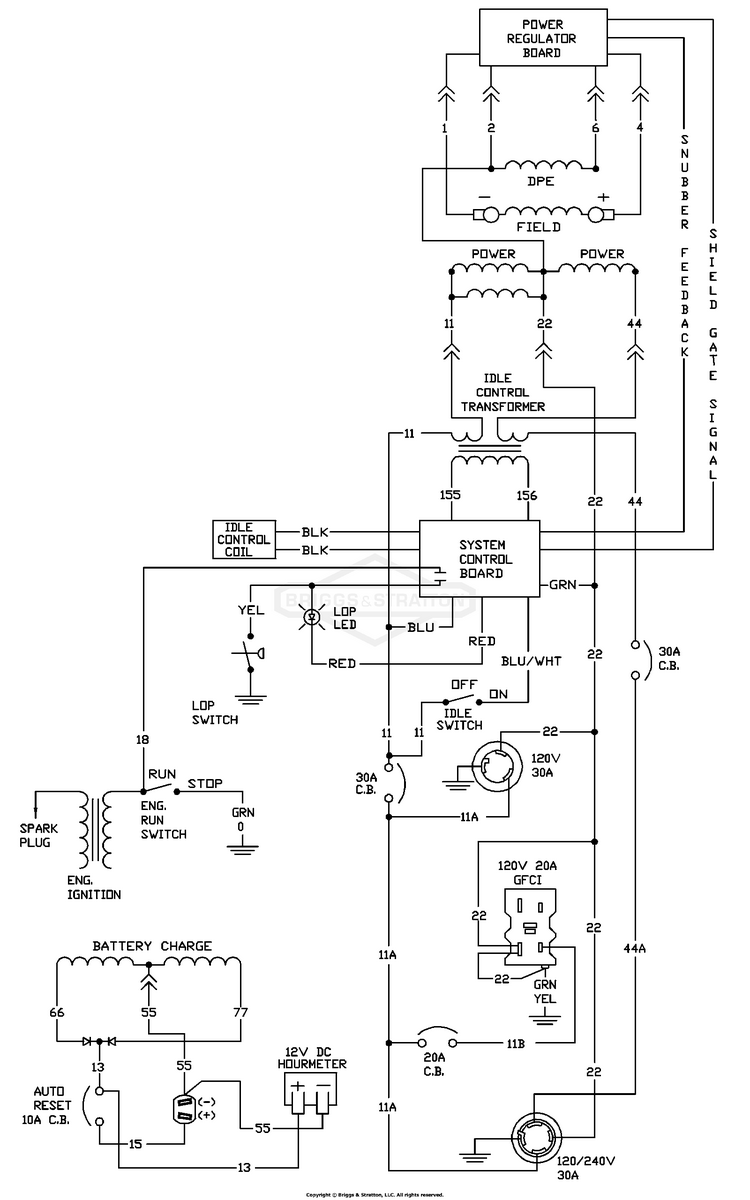

Wiring Diagram

...

No Parts Available for this Schematic

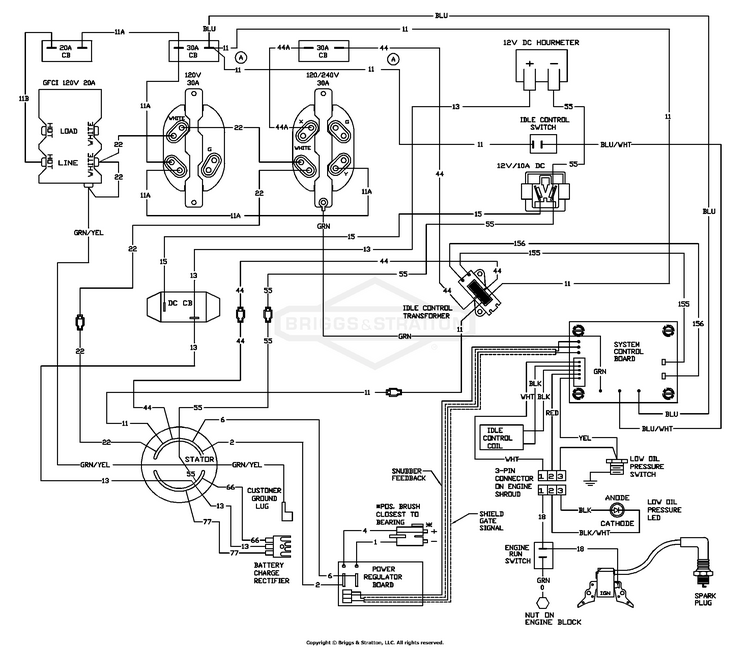

Wiring Schematic

...
