1783-0 Briggs and Stratton Portable Generator 4,000 Watt 4000GCX

Model: 1783-0

Save Part Not Listed?
product name

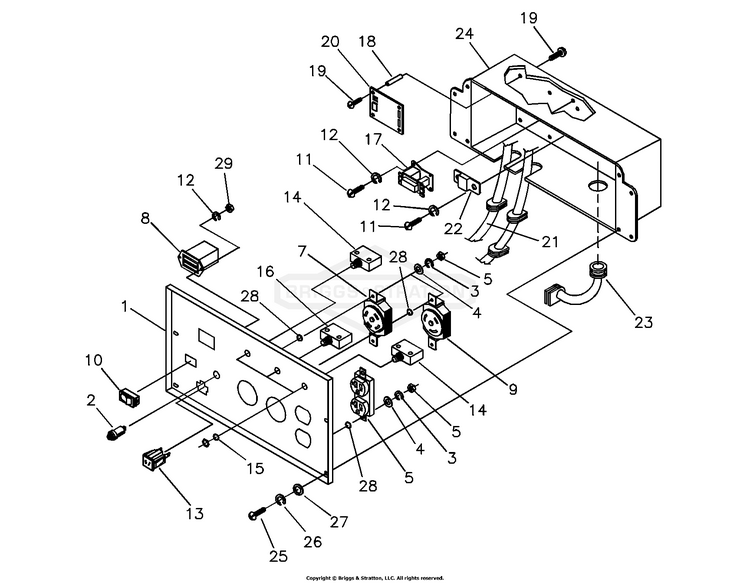

Control Panel

...
...
1
PANEL, Control Used on model 01785-0 BS-B187096GS
...
PANEL, Control Used on model 01784-0 BS-92811GS
...
PANEL, Control Used on model 01783-0 BS-B187124GS
...
2
JACK-COAXIAL Used on model 01785-0 BS-312004GS
...
3
WASHER BS-847333
...
4
WASHER BS-38150GS
...
5
NUT, Hex BS-51715GS
...
6
RECEPTACLE, 120V, 20 A BS-68759GS
...
RECEPTACLE, Dplx GFCI 20A Used on model 01784-0 BS-80409GS
...
7
RECEPTACLE, 120/240V, 20A BS-68867GS
...
8
METER, Hour Used on model 01785-0 BS-187028GS
...
METER, Hour Used on model 01784-0 BS-77604GS
...
9
OUTLET-120V TL30A BS-705932
...
10
ROCKER SWITCH, Idle Control Used on model 01784-0; Used on model 01785-0 BS-82538GS
...
11
SCREW Used on model 01784-0; Used on model 01785-0 BS-43181GS
...
12
WASHER, Lock Used on model 01784-0; Used on model 01785-0 BS-43182GS
...
13
OUTLET, 12V DC Snap BS-90418GS
...
OUTLET, 12Volt DC Used on model 01784-0 BS-66822GS
...
14
BREAKER-CIRCUIT 20A BS-209872GS
...
15
WASHER, Lock BS-82881GS
...
16
BREAKER-CIRCUIT 30A BS-706178
...
17
TRANSFORMER, Idle Control Used on model 01784-0; Used on model 01785-0 BS-84028GS
...
18
STAND OFF Used on model 01784-0; Used on model 01785-0 BS-64525GS
...
19
SCREW Used on model 01784-0; Used on model 01785-0 BS-64526GS
...
20
BOARD, System Control Used on model 01784-0; Used on model 01785-0 BS-83970GS
...
21
ASSY,Wire Used on model 01784-0; Used on model 01785-0 BS-84335GS
...
22
CIRCUIT BREAKER, 10A (Automatic), 12V Used on model 01784-0; Used on model 01785-0 BS-87962GS
...
23
GROMMET, Rubber BS-84134GS
...
24
BOX, Control Panel BS-B87782GS
...
BOX, Control Panel Used on model 01783-0 BS-81919AGS
...
25
SCREW BS-91526GS
...
SCREW Used on model 01783-0 BS-82308GS
...
26
WASHER, Lock Used on model 01784-0; Used on model 01785-0 BS-49226GS
...
27
WASHER, Rivet, 3/16 Used on model 01784-0; Used on model 01785-0 BS-1910531SM
...
28
WASHER, Shakeproof BS-23365GS
...
29
NUT Used on model 01784-0; Used on model 01785-0 BS-51714GS
...
SCREW Not Shown; Used on model 01783-0; Used on model 01784-0 BS-75475GS

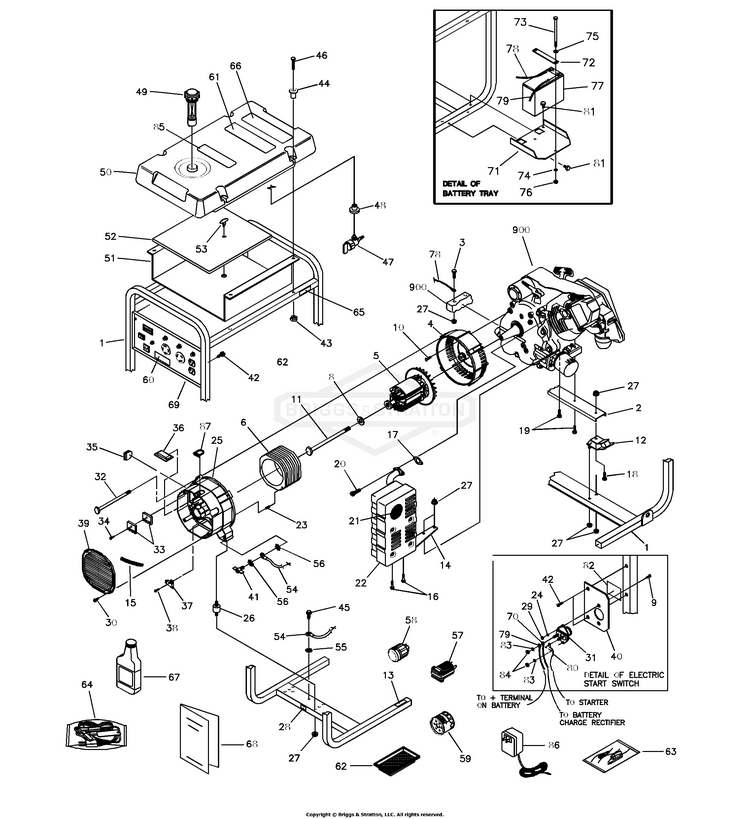

Main Unit

...
...
1
CRADLE, 4200W BS-G93199GS
...
2
SUPPORT, Engine BS-G84021GS
...
3
SCREW BS-39414GS
...
4
HSNG, Engine Adapter BS-66365GS
...
5
ASSY, Rotor BS-84141JGS
...
ASSY, Rotor Used on model 01783-0 BS-95876GGS
...
6
ASSY, Stator BS-187105AGS
...
ASSY, Stator Used on model 01783-0 BS-187151AGS
...
8
WASHER BS-96796GS
...
9
BOLT, 1/4-20 X 3/4" G Used on model 01784-0; Used on model 01785-0 BS-5025010X6SM
...
10
SCREW BS-86307GS
...
11
SCREW BS-47480GS
...
12
MOUNT,Vibration BS-84508GS
...
13
DECAL, Caution, Hot Muffler BS-77816GS
...
14
BRACKET, Muffler BS-83208GPGS
...
15
SLEEVING, Flexo BS-84409GS
...
16
SCREW, w/ Lock Washer BS-66476GS
...
17
GASKET, Exhaust BS-89476GS
...
18
SCREW BS-70644GS
...
19
TPHMS, M8 - 1.25 x 35 BS-195398GS
...
20
SCREW BS-40976GS
...
21
SCREEN, Spark Arrest BS-83083GS
...
22
MUFFLER BS-83071GS
...
23
PIN, Roll BS-81917GS
...
24
WASHER Used on model 01784-0; Used on model 01785-0 BS-22097GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
MOUNT-VIBRATION BS-194153GS
...
27
NUT BS-67989GS
...
28
DECAL, Ground BS-B4986GS
...
29
NUT, Hex, 1/4-20 Used on model 01784-0; Used on model 01785-0 BS-22127GS
...
30
SCREW BS-74908GS
...
31
SWITCH, Starter Used on model 01784-0; Used on model 01785-0 BS-77282GS
...
32
BOLT BS-86308GS
...
33
RECTIFIER, Battery Charge Used on model 01784-0; Used on model 01785-0 BS-65795GS
...
34
SCREW Used on model 01784-0; Used on model 01785-0 BS-66849CGS
...
35
GROMMET, Rubber BS-67022GS
...
36
ASSY, Power Regulator Used on model 01784-0; Used on model 01785-0 BS-84132GS
...
37
ASSY, Brush Holder BS-66386GS
...
ASSY, Brush Holder Used on model 01783-0 BS-91825GS
...
38
HHCS, M5-0.8 X 16 BS-49815GS
...
39
COVER, Bearing Carrier BS-B4871GS
...
40
BRACKET, Starter Switch Used on model 01784-0; Used on model 01785-0 BS-78289GS
...
41
SCREW,Wing BS-86494GS
...
42
SCREW BS-B2153GS
...
43
NUT BS-77395GS
...
44
GROMMET,Tank BS-83465GS
...
45
SCREW BS-313085GS
...
46
SCREW BS-78831BGS
...
47
Kit, Valve BS-192980GS
...
48
Kit, Valve BS-192980GS
...
49
CAP, Fuel Gauge BS-B4363GS
...
50
ASSY,Tank, Fuel (Includes Items 47 & 48) BS-88325GS
...
51
SHIELD, Heat BS-J84042GS
...
52
INSULATION BS-84687GS
...
53
CLIP, Insulation BS-85000GS
...
54
WIRE, Ground BS-195373GS
...
55
WASHER,Shakeproof BS-23762GS
...
56
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
57
PLUG, 125V 30A 3-Prong BS-100523GS
...
58
PLUG-120/240V TL20A BS-100522GS
...
59
FILTER, Oil BS-70185GS
...
60
DECAL, Control Panel Used on model 01785-0 BS-191340GS
...
DECAL, Control Panel Used on model 01784-0 BS-191397GS
...
DECAL, Control Panel Used on model 01783-0 BS-191396GS
...
61
DECAL, Danger BS-194799GS
...
62
FILTER,Air BS-78601GS
...
63
SUBKIT,Tune Up Used on model 01784-0; Used on model 01785-0 BS-189712GS
...
64
CABLE, Battery Charge BS-65787GPGS
...
65
DECAL, Fuel Shutoff BS-73054GS
...
66
DECAL, Start Instructions BS-93826GS
...
67
BOTTLE, Oil BS-BB3061GS
...
68
MANUAL, Owners BS-191337GS
...
69
ASSY, Control Panel (See "Control Panel" illustration and parts list); Used on model 01785-0 BS-191484GS
...
ASSY, Control Panel (See "Control Panel" illustration and parts list); Used on model 01784-0 BS-93222GS
...
ASSY, Control Panel (See "Control Panel" illustration and parts list); Used on model 01783-0 BS-187125GS
...
70
HARNESS, Wire, Starter Used on model 01785-0 BS-189992GS
...
HARNESS, Wire, Starter Used on model 01784-0 BS-189740GS
...
71
TRAY, Battery Used on model 01784-0; Used on model 01785-0 BS-G187078GS
...
72
BRACKET, Hold Down Used on model 01784-0; Used on model 01785-0 BS-B187081GS
...
73
SCREW Used on model 01784-0; Used on model 01785-0 BS-26586GS
...
74
WASHER Used on model 01784-0; Used on model 01785-0 BS-22097GS
...
75
WASHER Used on model 01784-0; Used on model 01785-0 BS-703332
...
76
NUT, Hex, 1/4-20 Used on model 01784-0; Used on model 01785-0 BS-22127GS
...
77
BATTERY, 12 V, 10 AH Used on model 01784-0; Used on model 01785-0 BS-187079GS
...
78
ASSY,Wire Used on model 01784-0; Used on model 01785-0 BS-185931DGS
...
79
ASSY,Wire Used on model 01784-0; Used on model 01785-0 BS-185931CGS
...
80
ASSY,Wire Used on model 01784-0; Used on model 01785-0 BS-185939DGS
...
81
SCREW Used on model 01784-0; Used on model 01785-0 BS-58443GS
...
82
DECAL, Instructions Used on model 01784-0; Used on model 01785-0 BS-78549GS
...
83
WASHER, Lock Used on model 01784-0; Used on model 01785-0 BS-22129GS
...
84
NUT, 5/16-24 Used on model 01784-0; Used on model 01785-0 BS-703331
...
85
DECAL, Gas Fill BS-188333GS
...
86
CHARGER, Battery Used on model 01785-0 BS-84002790
...
87
GROMMET, RBC, Plastic Used on model 01783-0 BS-84242GS
...
900
ENGINE BS-~NSP

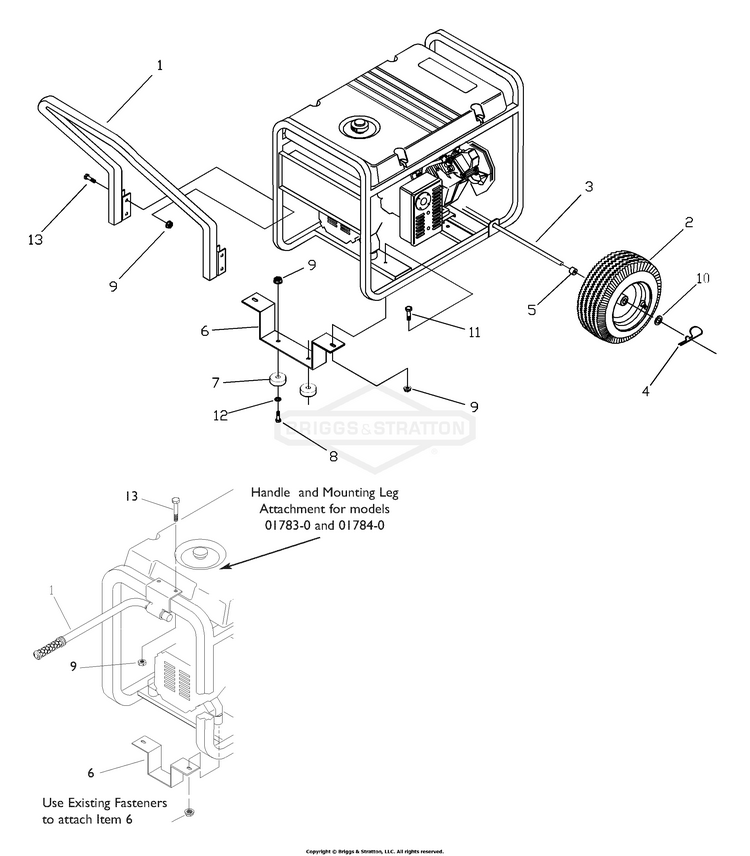

Wheel Kit

...
...
1
HANDLE Used on model 01785-0 BS-B93393GS
...
ASSEMBLY, Handle Used on model 01783-0; Used on model 01784-0 BS-189715GS
...
2
WHEEL Used on model 01785-0 BS-89742GS
...
WHEEL Used on model 01783-0; Used on model 01784-0 BS-209636GS
...
3
AXLE Used on model 01785-0 BS-191267RGS
...
AXLE Used on model 01783-0; Used on model 01784-0 BS-191267FGS
...
4
PIN, Retaining BS-87005GS
...
5
SPACER,Wheel Used on model 01785-0 BS-B89635GS
...
6
ASSY, Support w/ Vibe Mounts Used on model 01785-0 BS-200543GS
...
LEG, Mounting Used on model 01783-0; Used on model 01784-0 BS-B1764GS
...
7
VIBE MOUNT, with Washer Used on model 01785-0 BS-191413GS
...
8
SCREW Used on model 01785-0 BS-42909GS
...
9
NUT, Lock BS-52858GS
...
10
WASHER, 5/8" SAE BS-5025281SM
...
11
CAPSCREW M8-1.25X16 Used on model 01785-0 BS-703988
...
12
WASHER Used on model 01785-0 BS-703350
...
13
SCREW BS-39287GS

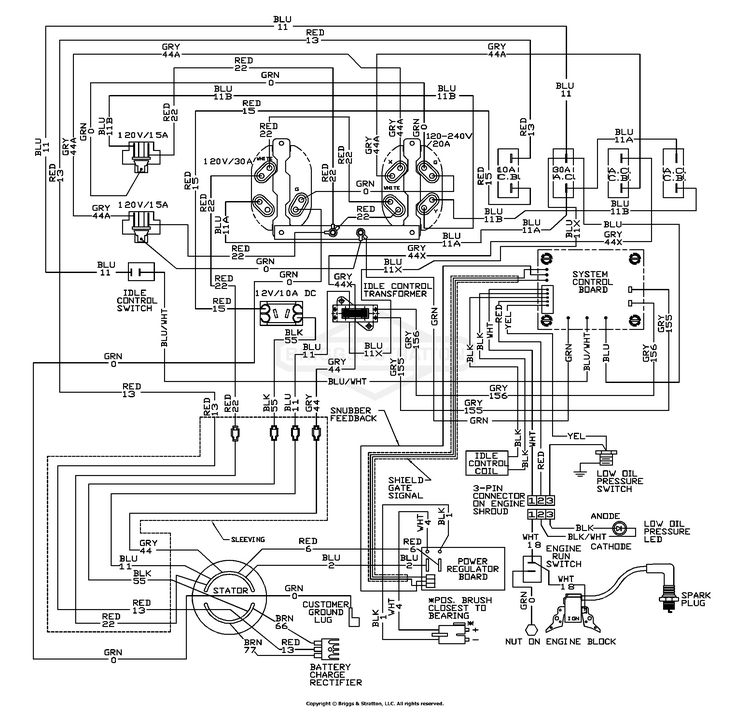

Wiring Diagram

...

No Parts Available for this Schematic

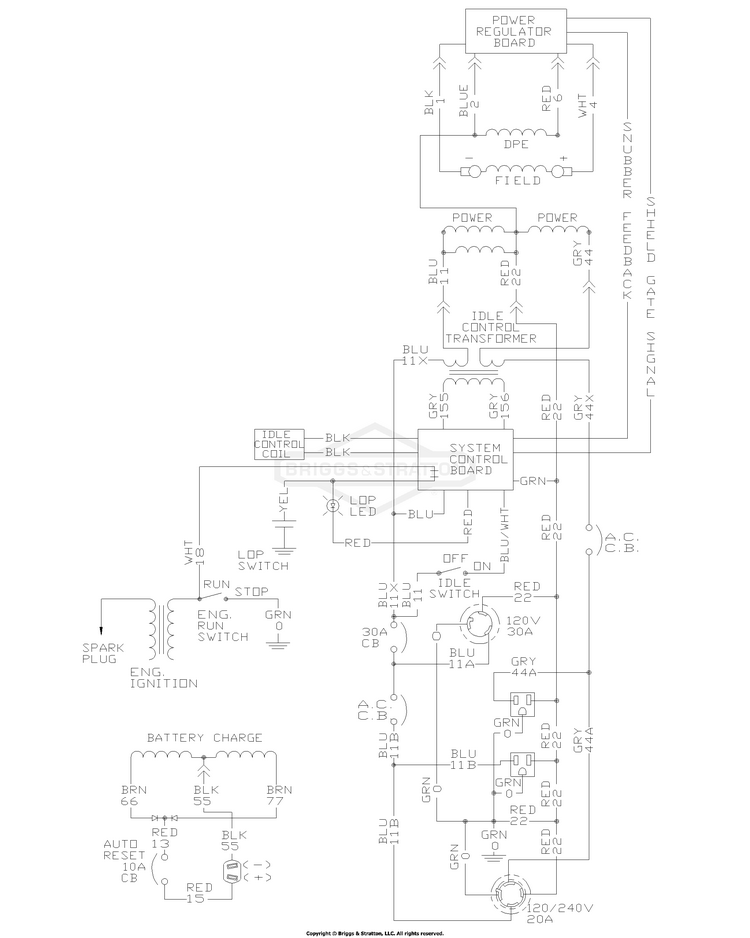

Wiring Schematic

...

No Parts Available for this Schematic

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
