product name

1775-0 Briggs and Stratton Portable Generator 10,000 Watt BSP10000LE

Model: 1775-0

Save Part Not Listed?
product name

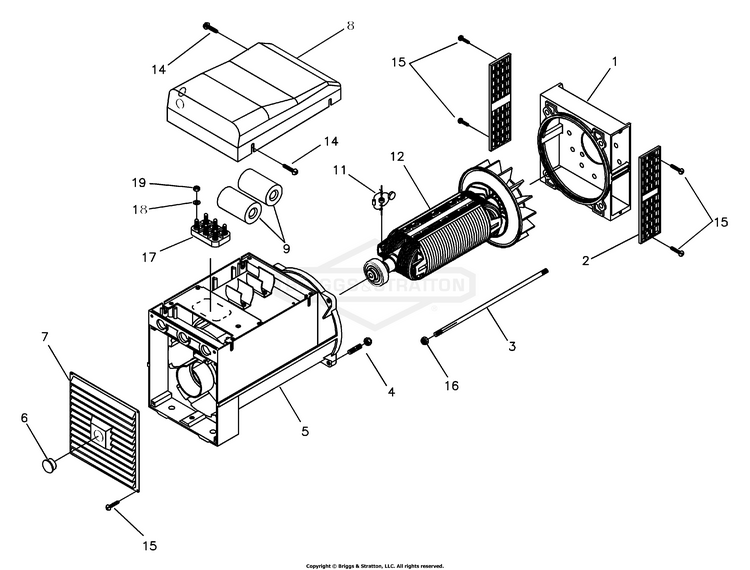

Alternator

...
...
1
SHIELD, Front BS-B4906GS
...
2
GRID, Front BS-B4907GS
...
3
BOLT, Stay, Shaft BS-B4908GS
...
4
BOLT, Stay BS-B4909GS
...
5
ASSY, Housing BS-B4910GS
...
6
CAP BS-B4911GS
...
7
COVER, Blind End BS-B4912GS
...
8
COVER,Top Black BS-B4913GS
...
9
CAPACITOR BS-311560GS
...
11
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
12
ASSY, Rotor (Includes Item 11) BS-191297GS
...
14
SCREW BS-B4919GS
...
15
SCREW BS-B4920GS
...
16
NUT, Lock BS-49820GS
...
17
CONNECTOR, 6-Pin BS-188928GS
...
18
WASHER BS-703332
...
19
NUT BS-49813GS

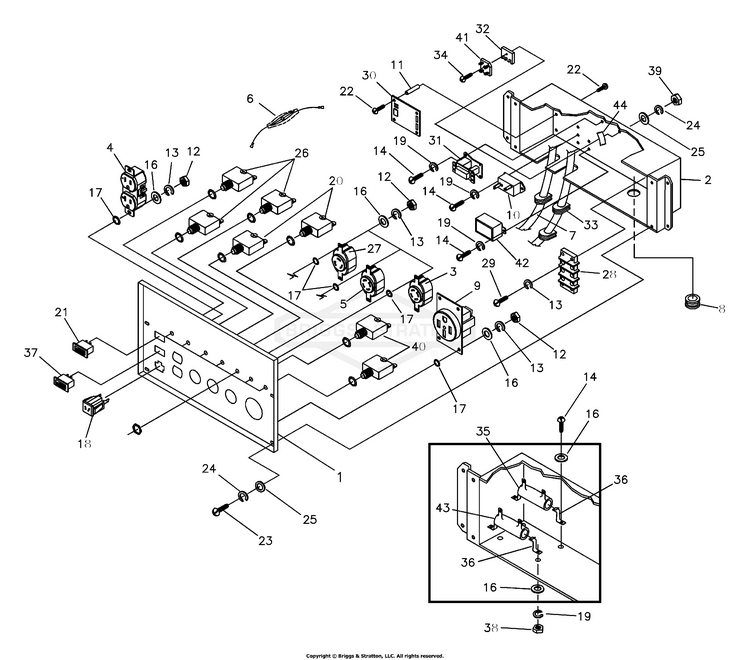

Control Panel

...
...
1
PANEL, Control BS-AB4432GS
...
2
BOX, Control BS-B95906GS
...
3
OUTLET, 120/240V, 30A Locking BS-43437GS
...
4
OUTLET, 120V, 20A Duplex BS-68759GS
...
5
OUTLET-120V TL30A BS-705932
...
6
ASSY, Diode BS-B5112GS
...
7
ASSY, Engine Harness BS-186102GS
...
8
GROMMET, Rubber BS-90576GS
...
9
OUTLET, 120/240V 50A BS-B4262GS
...
10
BREAKER, Circuit BS-87962GS
...
11
STAND OFF BS-93929GS
...
12
NUT BS-51715GS
...
13
WASHER BS-847333
...
14
SCREW BS-43181GS
...
16
WASHER BS-38150GS
...
17
WASHER BS-23365GS
...
18
OUTLET, 12V DC BS-90418GS
...
19
WASHER, Lock BS-43182GS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, Run - Stop BS-78653GS
...
22
SCREW BS-93986GS
...
23
SCREW BS-91526GS
...
24
WASHER, Lock BS-49226GS
...
25
WASHER, Rivet, 3/16 BS-1910531SM
...
26
BREAKER-CIRCUIT 20A BS-209872GS
...
27
OUTLET, 120V/20A BS-74190GS
...
28
BLOCK, 50A, 3 - Terminal BS-92953GS
...
29
SCREW BS-80077GS
...
30
BOARD, Idle Control BS-94117GS
...
31
TRANSFORMER, Idle Control BS-84028GS
...
32
RECTIFIER, Battery Charge BS-65795GS
...
33
GROMMET, Rubber BS-84135GS
...
34
SCREW BS-79224GS
...
35
RESISTOR BS-205846GS
...
36
STAND OFF BS-B4893GS
...
37
SWITCH, On - Off BS-82538GS
...
38
NUT BS-51714GS
...
39
NUT BS-51716GS
...
40
BREAKER, Circuit, 45A BS-B4445GS
...
41
RECTIFIER, Battery Charge BS-B4894GS
...
42
RELAY, 3A Thermal BS-77314GS
...
43
BRACKET, Resistor BS-B4893GS
...
44
TAPE, Glass Insulation BS-27565GS

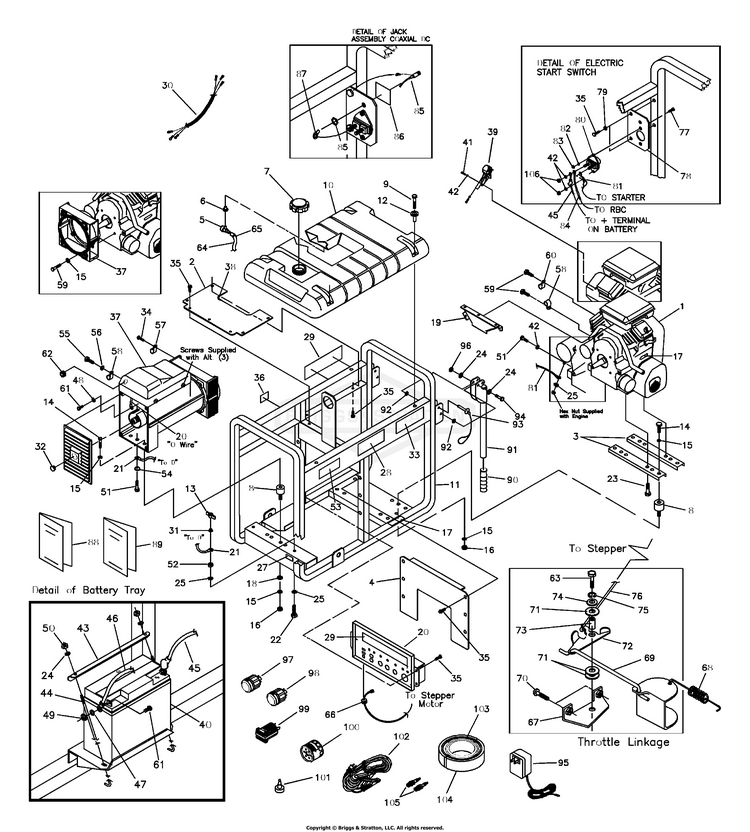

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
SHIELD, Heat BS-JB4509AGS
...
3
SUPPORT, Engine BS-A77304GS
...
4
SHIELD, Heat BS-JB5567GS
...
5
Kit, Valve BS-192980GS
...
6
Kit, Valve BS-192980GS
...
7
CAP, Fuel Tank BS-B4325GS
...
8
MOUNTS,Vibration BS-38353GS
...
9
SCREW BS-78831BGS
...
10
ASSY,Tank, Fuel (Inclds Itms 5 & 6) BS-B1997GS
...
11
CRADLE BS-A189487GS
...
12
GROMMET, Fuel Tank Mounting BS-83465GS
...
13
NUT,Wing BS-87680GS
...
14
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
15
LOCKWASHER, SPLIT 3/8 BS-703454
...
16
NUT, HEX, 3/8-16 BS-703577
...
17
DECAL, Caution Hot Muffler BS-191436GS
...
18
WASHER, FLAT .406X.81 BS-71072MA
...
19
SHIELD, Heat BS-J93074GS
...
20
ASSY, Control Panel (See "Control Panel") BS-186076GS
...
21
ASSY,Wire, Ground BS-19553621GS
...
22
SCREW BS-45757GS
...
23
SCREW-HEX WSHR HD TAP BS-2828635SM
...
24
WASHER BS-703350
...
25
WASHER, Ext. M6 - 1/4" Shakeproof BS-26850GS
...
27
DECAL, Ground BS-B4986GS
...
28
DECAL, Danger BS-194799GS
...
29
DECAL, Unit BS-191218GS
...
30
WIRE HARNESS BS-B4784GS
...
31
NUT-M6 FLANGE BS-52857GS
...
32
PLUG, Dome BS-187049GS
...
33
DECAL, Danger BS-191438GS
...
34
SCREW BS-76040GS
...
35
SCREW BS-B2153GS
...
36
DECAL, Fuel Shut-Off BS-191435GS
...
37
ALTERNATOR BS-B4268GS
...
38
U-CHANNEL BS-A5850GS
...
39
ASSY, Stepper Motor BS-96867GS
...
40
BATTERY, 12V BS-193043GS
...
41
CAPSCREW M8-1.25X16 BS-703988
...
42
WASHER, Lock BS-22129GS
...
43
BRACKET, Battery Tie Down BS-M96925GS
...
44
J-BOLT BS-96924GS
...
45
CABLE, Battery Positive BS-189302DGS
...
46
CABLE, Battery Negative BS-19753621GS
...
47
WASHER, Rivet, 3/16 BS-1910531SM
...
48
WASHER, Lock BS-49226GS
...
49
NUT, Lock BS-52856GS
...
50
NUT, Nylok BS-49820GS
...
51
CAPSCREW, M8-1.25X16 BS-703987
...
52
NUT BS-49813GS
...
53
DECAL, Fuel Fill BS-191437GS
...
54
WASHER BS-27482GS
...
55
HANDLE BS-84010594
...
56
WASHER BS-703332
...
57
CLAMP, Hose BS-55934TGS
...
58
CLAMP, Hose BS-55934GGS
...
59
SCREW BS-22511GS
...
60
CLAMP, Hose BS-96832GS
...
61
SCREW BS-52618GS
...
62
GROMMET, Generator Cover BS-B4794GS
...
63
SCREW BS-33141GS
...
64
HOSE BS-30340GS
...
65
CLAMP, Hose BS-691038
...
66
GROMMET, Rubber BS-62265GS
...
67
PLATE,Adjust BS-95349GS
...
68
SPRING BS-96717GS
...
69
LINKAGE BS-95921GS
...
70
SCREW BS-75477GS
...
71
WASHER, Nylon BS-96716GS
...
72
BRACKET, Bell Crank BS-95348GS
...
73
SPACER BS-96378GS
...
74
WASHER BS-51713GS
...
75
WASHER, Lock BS-49226GS
...
76
LINKAGE BS-95920GS
...
77
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
78
BRACKET, Starter Switch BS-188987GS
...
79
WASHER BS-23762GS
...
80
SWITCH, Starter BS-77282GS
...
81
ASSY,Wire BS-189302AGS
...
82
WASHER BS-22097GS
...
83
NUT, Hex, 1/4-20 BS-22127GS
...
84
WIRE, Harness BS-186102GS
...
85
ASSY, Jack, DC BS-192531GS
...
86
DECAL, Instruction, ES BS-189198GS
...
87
LUG BS-58359GS
...
88
MANUAL, Owners BS-191203GS
...
89
MANUAL, Engine BS-MS6334
...
90
GRIP BS-198669GS
...
91
HANDLE (Includes Item 90) BS-BB5586GS
...
92
WASHER, Nylon BS-187104GS
...
93
PIN, with Lanyard BS-B4135GS
...
94
SCREW BS-39287GS
...
95
CHARGER, Battery BS-84002790
...
96
NUT, Nylok BS-49820GS
...
97
PLUG, 120/240V, 30A, 4 Prong BS-43438GS
...
98
PLUG, 125V, 20A BS-93568GS
...
99
PLUG, 125V 30A 3-Prong BS-100523GS
...
100
FILTER, Oil BS-492932S
...
101
CAP, Funnel, Oil Bottle BS-B3518GS
...
102
CABLE, Battery Charge BS-65787GS
...
103
FILTER, A/C Cartridge BS-394018S
...
104
FILTER, Pre Cleaner BS-272490S
...
105
PLUG, Spark BS-496018S
...
106
NUT, 5/16-24 BS-703331
...
WRAP, Cord Optional Accessories Not Included BS-84883GS

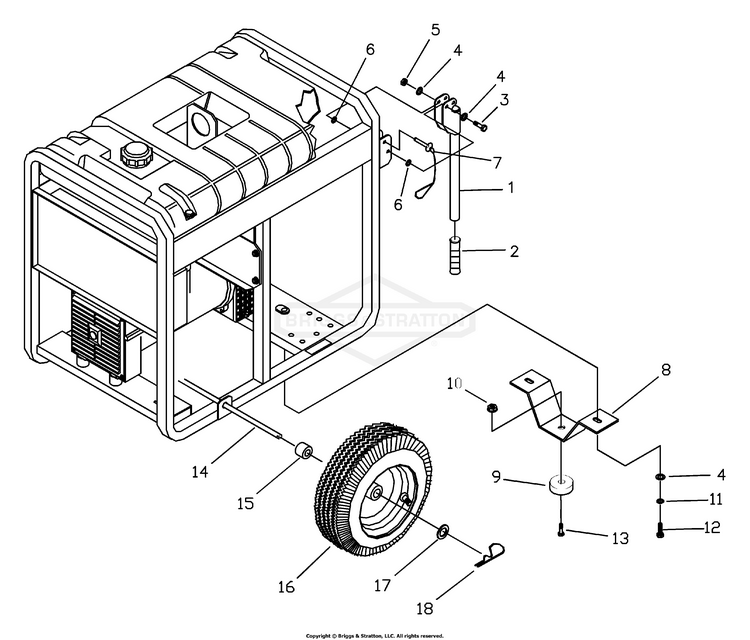

Wheel Kit

...
...
1
HANDLE (Includes Item 2) BS-BB5586GS
...
2
GRIP BS-198669GS
...
3
SCREW BS-39287GS
...
4
WASHER BS-703350
...
5
NUT, Nylok BS-49820GS
...
6
WASHER, Nylon BS-187104GS
...
7
PIN, with Lanyard BS-B4135GS
...
8
LEG, Mounting Support BS-B93394GS
...
9
VIBE MOUNT, with Washer BS-191413GS
...
10
NUT, Lock BS-52858GS
...
11
WASHER, Lock BS-22129GS
...
12
CAPSCREW M8-1.25X16 BS-703988
...
13
SCREW BS-42909GS
...
14
Axle BS-191267WGS
...
15
SPACER,Wheel BS-B89635GS
...
16
WHEEL BS-89742GS
...
17
WASHER, 5/8" SAE BS-5025281SM
...
18
PIN, 3/32 X 1.6 BS-703300

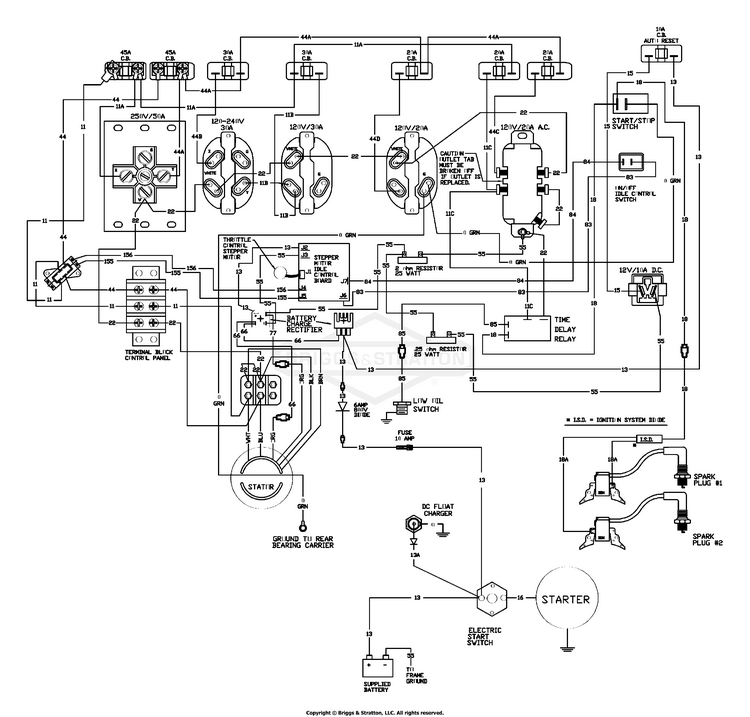

Wiring Diagram

...

No Parts Available for this Schematic

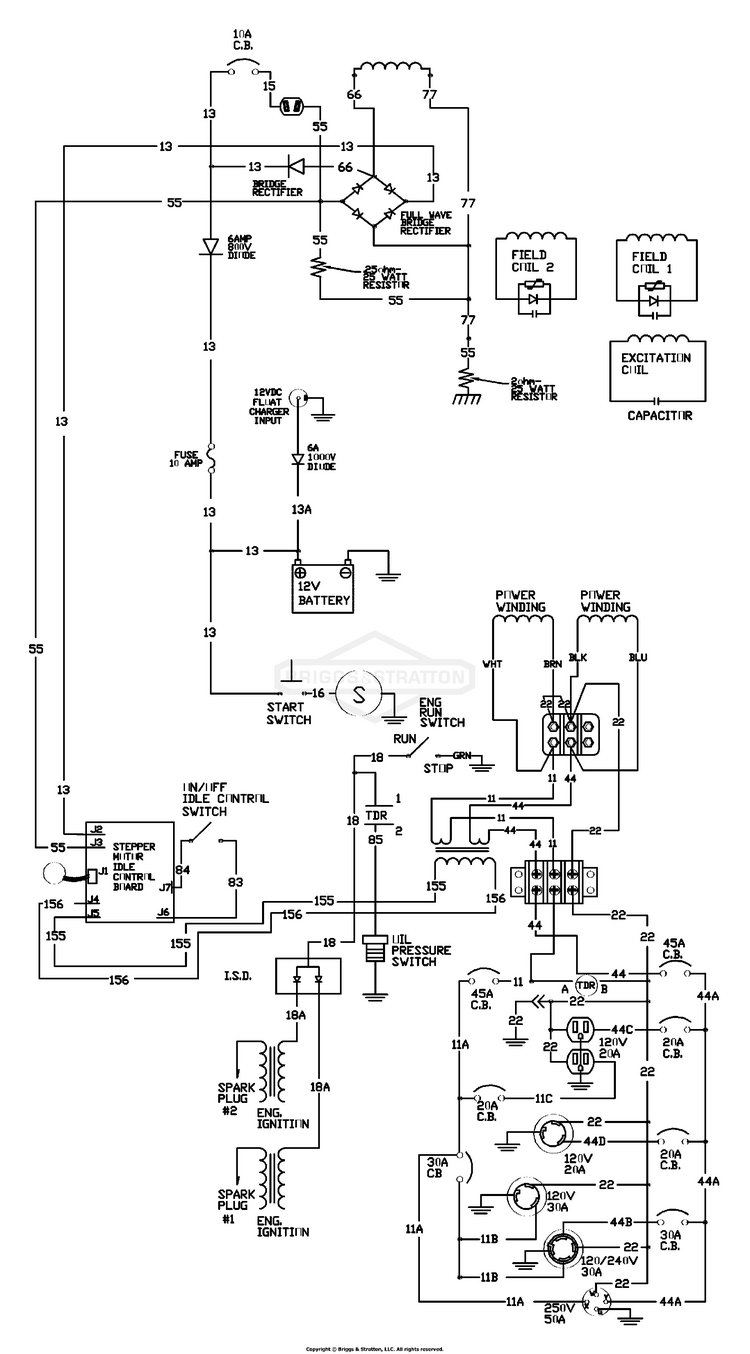

Wiring Schematic

...

No Parts Available for this Schematic
