170402-2139-01 Briggs and Stratton Engine

Model: 170402-2139-01

Back To Assemblies

Save Part Not Listed?

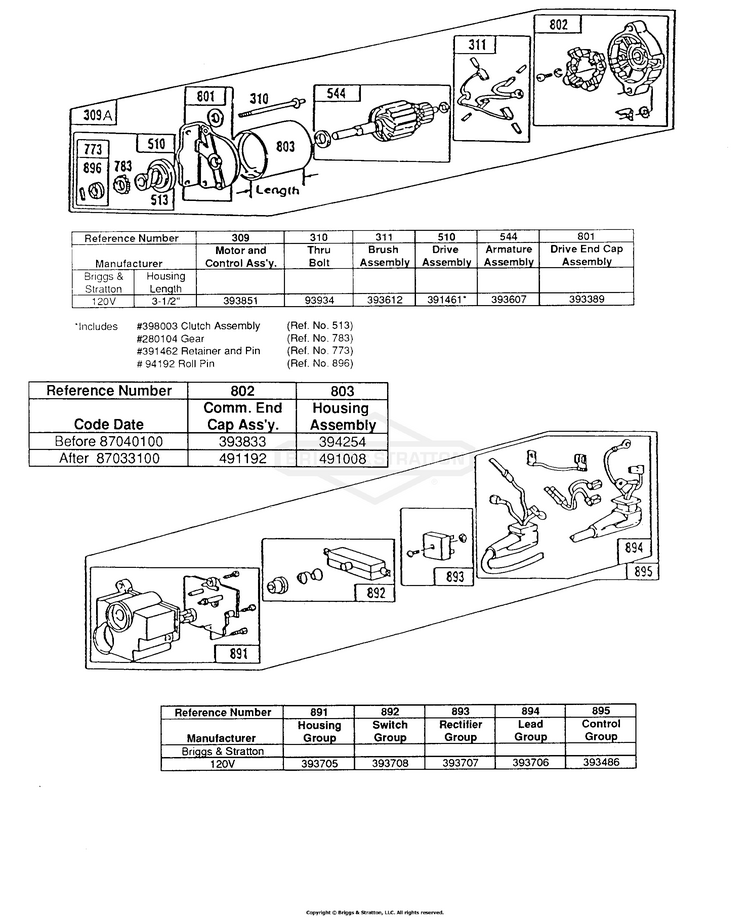

Electric Starter,Starter

309A

MOTOR, Starter (120 Volt) See Chart on Illustrated Pages for Replacement Parts for Starting Motors BS-MOTOR-STARTING

310

SCREW (3 1/2 Housing) BS-690318

310

SCREW (3 5/8 Housing) BS-690323

311

SET, Brush (3 1/2 Housing) (110V) BS-393612

311

SET, Brush (3-5/8 or 4 3/8 Housing) BS-395538

510

DRIVE, Starter (3 1/2 Housing) Includes #398003 Clutch Assembly (Ref. No. 513) #280104 Gear (Ref. No. 783) #391462 Retainer and Pin (Ref. No. 773) # 94192 Roll Pin (Ref. No. 896) BS-696535

510

DRIVE, Starter Includes #398003 Clutch Assembly (Ref. No. 513) #280104 Gear (Ref. No. 783) #490467 Retainer and Pin (Ref. No. 876) # 94288 Roll Pin (Ref. No. 896) (3-21/32 or 4 9/16 Housing) BS-696540

544

ARMATURE, Starter (3 5/8 Housing) BS-390837

544

MOTOR, Starter (3 1/2 Housing) (110V) BS-396505

801

CAP, Drive (3 1/2 Housing) (Briggs & Stratton 120V) BS-393389
