170402-0173-99 Briggs and Stratton Engine

Model: 170402-0173-99

Back To Assemblies

Save Part Not Listed?
product name

Electric Starters

...
...
23A
FLYWHEEL Use on engs W/O ALT (machined for STEEL ring gear, not incl) BS-299375
...
23A
FLYWHEEL (Aluminum Ring Gear) For use only on electric starter engines WITHOUT ALTERNATOR (Aluminum Ring Gear Inc.) For Plastic Drive Gear Starter BS-392034
...
169
WASHER (Blower Housing) BS-22097GS
...
188
SCREW (5/16-18 X 3/4) BS-691058
...
189
WASHER, 5/16" LOCK BS-5025170SM
...
192
LOCKNUT (5/16-18) BS-691105
...
309A
MOTOR, Starter (Mitsubishi and American Bosch 110V) BS-299329
...
309A
MOTOR, Starter (American Bosch 110V) BS-299556
...
309A
MOTOR, Starter (American Bosch 110V) BS-299764
...
309A
MOTOR, Starter (Mitsubishi and American Bosch 110V) Uses #392247 Switch Shield Assembly BS-299329
...
309
MOTOR, Starter (Mitsubishi and American Bosch 12V) BS-390307
...
309
MOTOR, Starter (Bosch or Mitsubishi) BS-390307
...
309
MOTOR, Starter (3 1/16 Housing) BS-497595
...
309
MOTOR, Starter (3 1/16 Housing) BS-497595
...
309
MOTOR, Starter (3 1/2 Housing) (Briggs & Stratton 110V) BS-396505
...
321
PULLEY, Starter BS-210899
...
321
SCREEN, Rotating Uses: 93506 Screw BS-221067
...
322
SCREW BS-90931
...
323
BELT, Vee BS-67708
...
324
SCREEN, Rotating BS-221067
...
325
PULLEY, Rope Starter (With Screen) BS-299307
...
328
GUARD, Belt BS-221447
...
332
NUT (Flywheel) BS-690662
...
380
WASHER BS-91324
...
423
SCREW BS-93410
...
492
MOTOR, Starter (12v Delco-Remy #1101695 & Pulley #1949358) BS-296028
...
493
BRACKET, Starter Motor BS-211594
...
497
BOLT, 5/16-18 X 1-3/4 (5/16-18 X 1-3/4) BS-5025011X14SM
...
500
WASHER BS-690282
...
501
REGULATOR (Flat Mount, Delco-remy) BS-295924
...
508
SCREW (5/8) BS-692198
...
518
KIT, Handle/Rope BS-69932S
...
605A
BRACKET, Support (Lower) BS-297171
...
605
BRACKET, Mounting (Upper) BS-297187
...
606
STRAP, Adjusting BS-221443
...
648
SCREW BS-91439
...
726
GEAR, Ring (Steel) (Includes Mounting Hardware) BS-299543
...
727
GUARD-FLYWHEEL Uses: 93623 Screw (2) BS-690490
...
727
COVER, Starter Drive BS-395405
...
728
SCREW (5/16-18 X 11/16) BS-691058
...
735
CORD, Starter (Includes Adaptor Plug) BS-795901
...
762
KIT, Electric Starter (12 Volt) (Low Position) BS-297335
...
763A
KIT, Electric Starter (110 Volt Gear Drive) BS-393611
...
763
KIT, Electric Starter (12 Volt Gear Drive) BS-394952

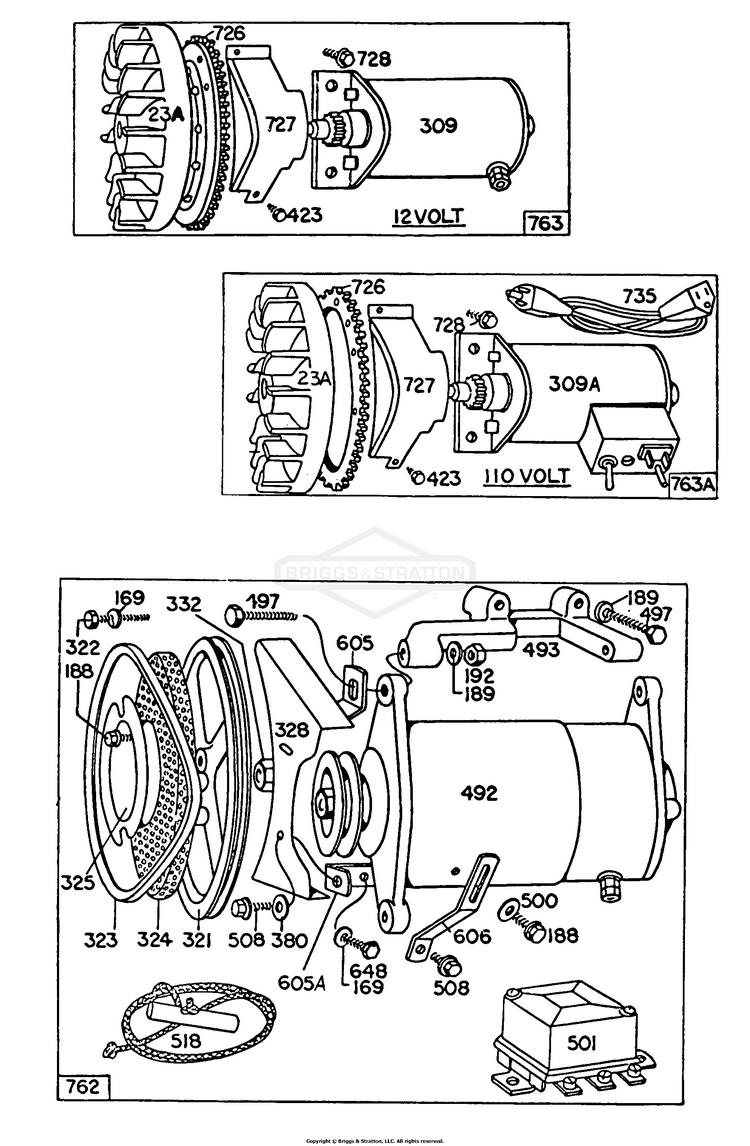

Schematic Image Zoomed
