1696571-00 Murray - PAS10529ESS, Parton 14.5 Gross TP 29" Dual Stage Snowthrower (2015)

Model: 1696571-00

Back To Assemblies

Save Part Not Listed?
product name

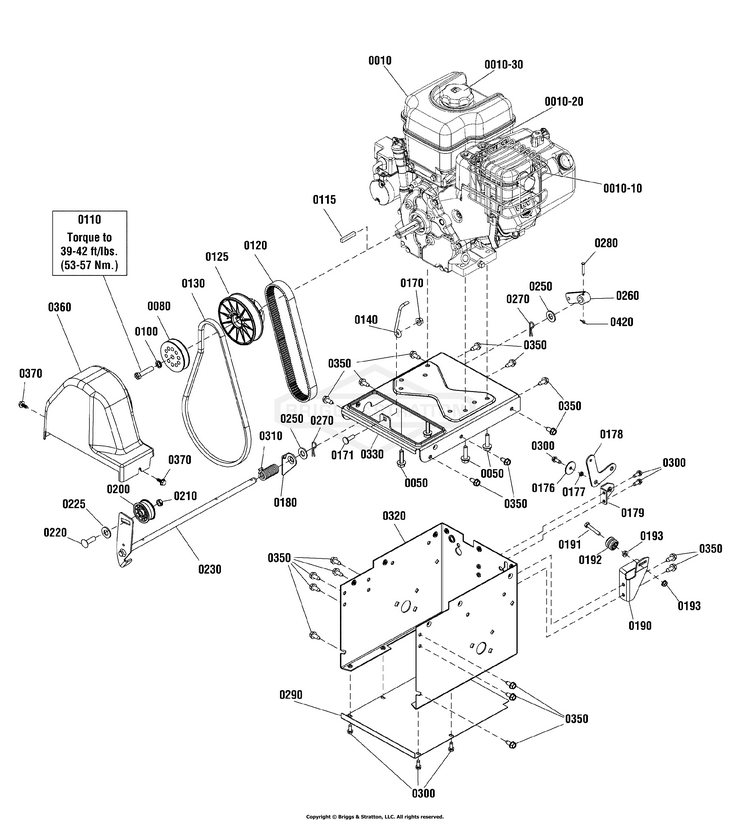

Engine & Frame Group

...
...
0010
* ENGINE, 306cc Briggs & Stratton (Engine Model: 19J137-0002-F1) BS-19J137-0002-F1
...
0010-10
GUARD, Muffler BS-593187
...
0010-20
SCREW, Muffler Guard BS-813235
...
0010-30
CAP, Fuel Tank BS-794641
...
0050
SCREW-HEX WSHR HD TAP BS-2828635SM
...
0080
PULLEY BS-1737509YP
...
0100
LOCKWASHER, SPLIT 3/8 BS-703454
...
0110
CAPSCREW, Hex Head, 3/8-24 x 1-3/4 GR8 BS-703132
...
0115
KEY, Parallel BS-2157427SM
...
0120
BELT, CVT BS-1754209YP
...
0125
PULLEY BS-1733968YP
...
0130
BELT, V, 4L BS-1754211YP
...
0140
STOP, Belt BS-1737377YP
...
0170
NUT, Hex KEPS, 5/16-18 BS-703222
...
0171
BOLT, CRRG, 5/16-18X1 BS-703800
...
0176
WASHER BS-703136
...
0177
SPACER BS-703124
...
0178
BELLCRANK BS-1737329YP
...
0179
BRACKET, Lower BS-1737328AYP
...
0180
BRACKET, Support, Auger Idler BS-1737297YP
...
0190
BRACKET, Guide Wheel BS-1737347BMYP
...
0191
BOLT, 1/4-20 BS-5025010X12SM
...
0192
SPOOL CABLE, Auger Control BS-579860MA
...
0193
NUT, 1/4-20, GR5 BS-703233
...
0200
IDLER BS-1502120MA
...
0210
NUT, 3/18-16, GR2 BS-703230
...
0220
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 BS-1960268SM
...
0225
WASHER, Thrust BS-1670971SM
...
0230
IDLER ARM, AUGER BS-1756662YP
...
0250
WASHER BS-703128
...
0260
ARM, Control BS-1733451SM
...
0270
PIN, 3/32 X 1.6 BS-703300
...
0280
PIN, CLEVIS, ZINC BS-703313
...
0290
PANEL, BOTTOM BS-1737221BMYP
...
0300
SCREW, 1/4-20X0.625 BS-703054
...
0310
SPRING, Torsional BS-1737350YP
...
0320
FRAME BS-1737106ZYP
...
0330
PLATE, Top BS-706521
...
0350
SCREW, 5/16-18 X .75 BS-703228
...
0360
COVER, Belt BS-1754153YP
...
0370
SCREW, 1/4-20 X 3/4 BS-1751355YP
...
0420
COTTER PIN BS-7023590SM
