1696441-01 Murray - 42" Mower Deck (2016)

Model: 1696441-01

Save Part Not Listed?
product name

42" Mower Deck - Clutch Group

...
...
0010
SCREW BS-703872
...
0020
WASHER BS-704128
...
0030
IDLER, Flat, 4 1/8 BS-7018574SM
...
0040
NUT, CNTR LCK, 3/8-16 BS-703893
...
0050
WASHER, .406X1.5X.12 BS-703591
...
0060
ARM, Idler BS-1731944ASM
...
0070
NUT, 3/8-16 BS-703333
...
0080
SPRING, Extension, 1-1/32 OD x 7-3/4 BS-1731311SM
...
0090
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
...
0100
SPACER, 3/8 ID X 1-1/2 OD x 1-1/32 BS-1729007SM
...
0110
V-BELT, A Wedge Deep-Groove, .44" BS-1732955SM
...
0120
SUPPORT, Idler BS-1731911ASM
...
0140
BOLT, 3/8-16 X 1-3/4" BS-5025013X14SM
...
0150
CAPSCREW, 5/16-18 BS-703408
...
0160
NUT, 5/16-18, GR5 BS-703409
...
0170
GUARD, Spring BS-1732884ASM

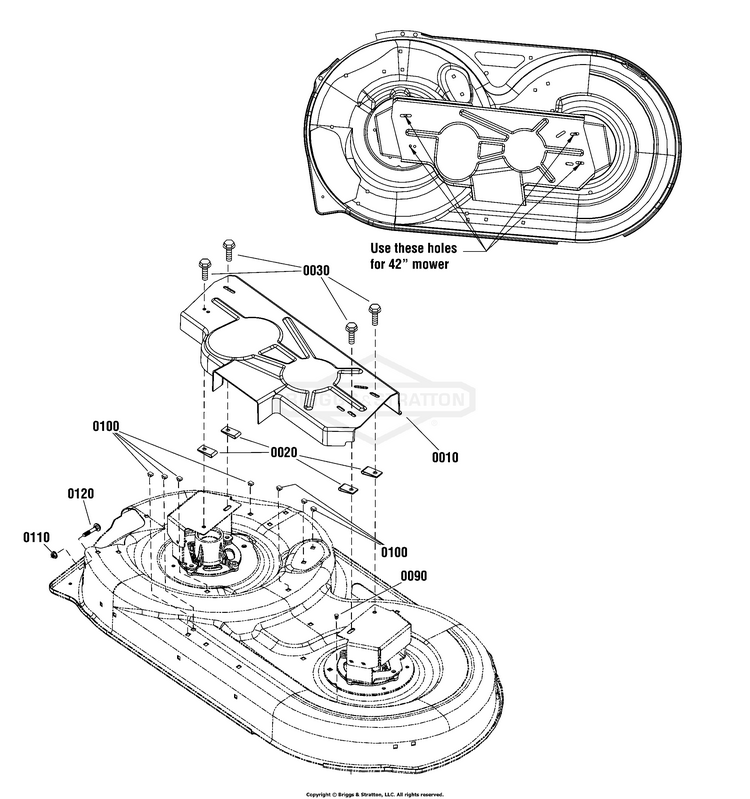

42" Mower Deck - French Guard Group

...
...
0010
GUARD, Mower Housing BS-1751850YP
...
0020
NUT, Speed, 1/4 BS-1926018SM
...
0030
SCREW, Hex Head, 1/4-20 x 5/8 BS-1960295SM
...
0090
PLUG, Hole, .44” OD BS-7046780SM
...
0100
PLUG, Hole, 1/2 x 5/16 Inch, Rectangular BS-1705115SM
...
0110
NUT, 5/16-18, GR5 BS-703409
...
0120
BOLT, 5/16-18 X 3/4" BS-5025011X6SM

42" Mower Deck - Height Adjustment

...
...
0010
HITCH, Front BS-1731966BMYP
...
0020
ROD BS-1730097SM
...
0030
HANGER, Front BS-1730221ASM
...
0040
SPACER, 1/2 x 7/8 x 1 3/16 BS-1679166SM
...
0050
NUT, Hex Lock, 1/2-13 BS-1960379SM
...
0060
PIN, 5/16 X 0.375 BS-703852
...
0070
ROD, Latch BS-1731414SM
...
0080
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
0090
SUPPORT, Gauge Wheel, RH BS-1731402ASM
...
0100
SUPPORT-GAUGE WHEEL L BS-1731403ASM
...
0110
BOLT-WHEEL 3/8-16X2.7 BS-2108765SM
...
0120
WASHER, 0.516IDX1OD BS-703853
...
0125
WASHER,SPRING .52X.99 BS-0020X3MA
...
0130
GAUGE WHEEL BS-1714760SM
...
0140
NUT, 5/16-18, GR5 BS-703409
...
0150
BOLT, Round Head, Short Square Neck BS-703185
...
0155
RETAINER, GR5, 5/16 BS-703297
...
0160
SUPPORT, Mower, LH BS-1753662BMYP
...
0170
SUPPORT, MOWER RH 38/ BS-1753663BMYP
...
0300
BRACKET, Gauge Wheel, Front, LH BS-1732258BMYP
...
0310
BRKT, WHL GAUGE, RH BS-7301171BMYP

42" Mower Deck - Housing, Arbors & Blades Group

...
...
0010
HOUSING ASSEMBLY BS-84003654
...
0010-10
ZERK, FITTING, 1/4 BS-703907
...
0020
BEARING, Ball, 20mm BS-1735399YP
...
0030
SHAFT, SPINDLE (Replaced by Ref. Nos. 1000-10, this spindle shaft is an exact replacement for the shaft, shield and ring) BS-84003170
...
0040
COVER, ARBOR BS-84003166
...
0050
SPACER, Bearing (Replaced by Ref. Nos. 1000-40, this spacer is an exact replacement) BS-1735328YP
...
0060
RING, SELF LOCKING BS-1960766YP
...
0070
SCREW, HEX, 5/16-18X1 BS-704146
...
0080
BLADE, 42” Mower BS-1752100AYP
...
0090
WASHER, SPRING 0.475I BS-1656916SM
...
0100
CAPSCREW, Hex Head, 7/16-14 X 1 BS-1920676SM
...
0110
PULLEY, V, Deep Groove BS-1737835YP
...
0130
SPACER, Pulley BS-1737457YP
...
0140
HOUSING, Mower Deck, 42 BS-1736504ZYP
...
0150
HHCS BS-703171
...
0180
PLATE, Rear BS-092426E701MA
...
0190
NUT, 5/16-18, GR5 BS-703409
...
0200
BRACKET - HINGE BS-094956E701MA
...
0210
BOLT, Round Head, Short Square Neck BS-703185
...
0230
SPRING, Torsion BS-0166X4MA
...
0240
DEFLECTOR & SUPPORT ASSEMBLY BS-094707MA
...
0250
ROD, Deflector BS-094957ZMA
...
0260
PUSHNUT, 3/8 BS-703948
...
0270
PLATE, SPINDLE, RH BS-1750457BMYP
...
0280
PLATE, SPINDLE, LH BS-1750458BMYP
...
0290
BRACKET, Guard Mount BS-1752065BMYP
...
0300
COVER, Mower Spindle BS-1752034BMYP
...
0310
SCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2 BS-1930600SM
...
0320
SCREW.25-20 S-T BS-26X263MA
...
0330
CAP, PROTECTOR, .120 BS-5023489SM
...
0340
SPACER, Blade Adapter BS-1755892YP
...
1000
ARBOR ASSEMBLY BS-84003175
...
1000-05
ZERK, FITTING, 1/4 BS-703907
...
1000-10
SHAFT, SPINDLE BS-84003170
...
1000-20
BEARING, Ball, 20mm BS-1735399YP
...
1000-30
HOUSING ASSEMBLY BS-84003654
...
1000-40
SPACER, BEARING BS-84003167
...
1000-50
COVER, ARBOR BS-84003166
...
1000-60
RING, SELF LOCKING BS-1960766YP
