1696199-00 Murray - ML61900R, Murray 9TP 24" Dual Stage Snowthrower (CE) (2012)

Model: 1696199-00

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

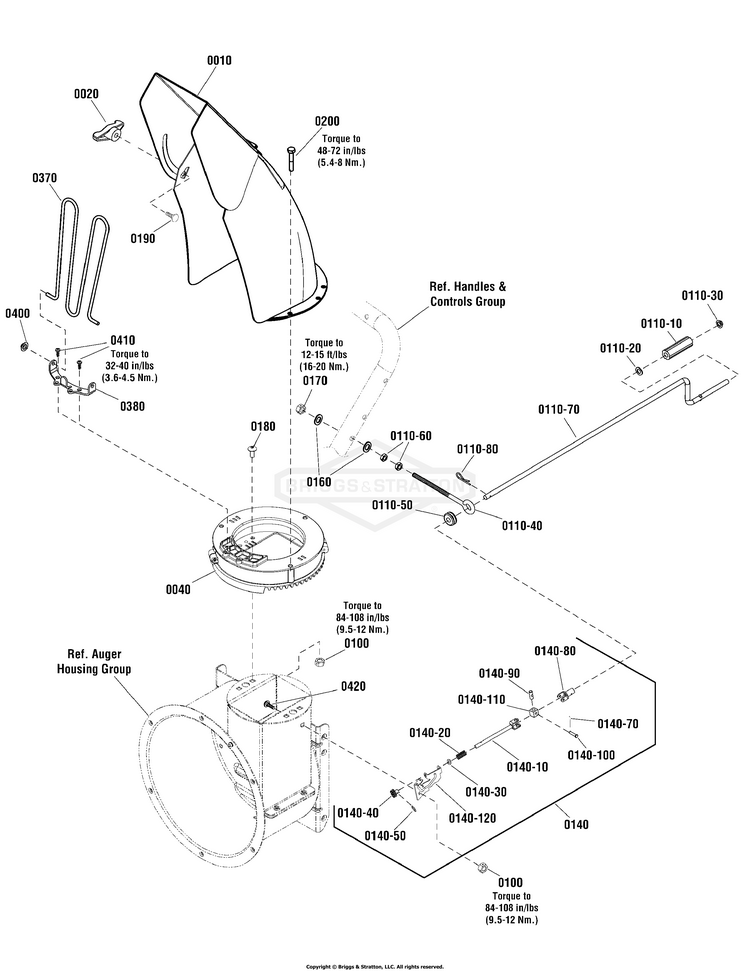

Discharge Chute Group - Left Hand Crank

...
...
0010
CHUTE BS-1736313YP
...
0020
WINGKNOB, 5/16-18 BS-703065
...
0040
CHUTE ROTATION ASSEMBLY, LH Crank BS-1752395YP
...
0100
NUT, 1/4-20 BS-703251
...
0110-10
KNOB, SLEEVE STD BLK BS-51443MA
...
0110-20
WASHER, FLAT .39 X .7 BS-309312MA
...
0110-30
NUT, Push, 3/8 BS-73664MA
...
0110-40
EYEBOLT.38-16X6.50 .6 BS-1501456MA
...
0110-50
GROMMET, Eyelet BS-148MA
...
0110-60
NUT 3/8-16 HEX JAM BS-71045MA
...
0110-70
CRANK, Chute Turn BS-1501074YZMA
...
0110-80
PIN, 3/32 X 1.6 BS-703300
...
0140
BRACKET ASSEMBLY, Chute Rotation (Includes Ref. Nos. 0140-10, 0140-20, 0140-30, 0140-40, 0140-50, 0140-60, 0140-70, 0140-80, 0140-90, 0140-100, 0140-110 & 0140-120) BS-1752560YP
...
0140-10
ROD 4.72YOKE ASY,CRAN BS-1501533YZMA
...
0140-20
SPRING, COMPRESSION BS-164X37MA
...
0140-30
WASHER, Flat, 3/8 BS-017X48MA
...
0140-40
GEAR,9 TOOTH 8DP BS-1501067MA
...
0140-50
PIN-HAIR, CHUTE GEAR BS-1501293MA
...
0140-70
PIN, COTTER .06X .50 BS-579493MA
...
0140-80
YOKE ADAPTER ASY BS-1501075YZMA
...
0140-90
PIN,UNIV JOINT 3/8X1. BS-578060MA
...
0140-100
LF PIN, CLEVIS .25DX BS-578309MA
...
0140-110
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
0160
WASHER, FLAT .406X.81 BS-71072MA
...
0170
NUT BS-703117
...
0180
SCREW, Torx Truss Head, 1/4-20 x 7/8 BS-880456YP
...
0190
BOLT, 5/16-18X1.5 BS-703296
...
0200
SCREW, Hi-Lo, 1/4 x 3/4 BS-880804YP
...
0370
GUARD, Chute BS-1733475SM
...
0380
BRACKET, Chute Guard BS-1752883YP
...
0400
NUT, Push, 3/16 BS-1960140SM
...
0410
SCREW, 310, Hi-Lo x 1/2 BS-880070YP
...
0420
BOLT,1/4-20X0.5 BS-703978
