1696199-00 Murray - ML61900R, Murray 9TP 24" Dual Stage Snowthrower (CE) (2012)

Model: 1696199-00

Back To Assemblies

Save Part Not Listed?
product name

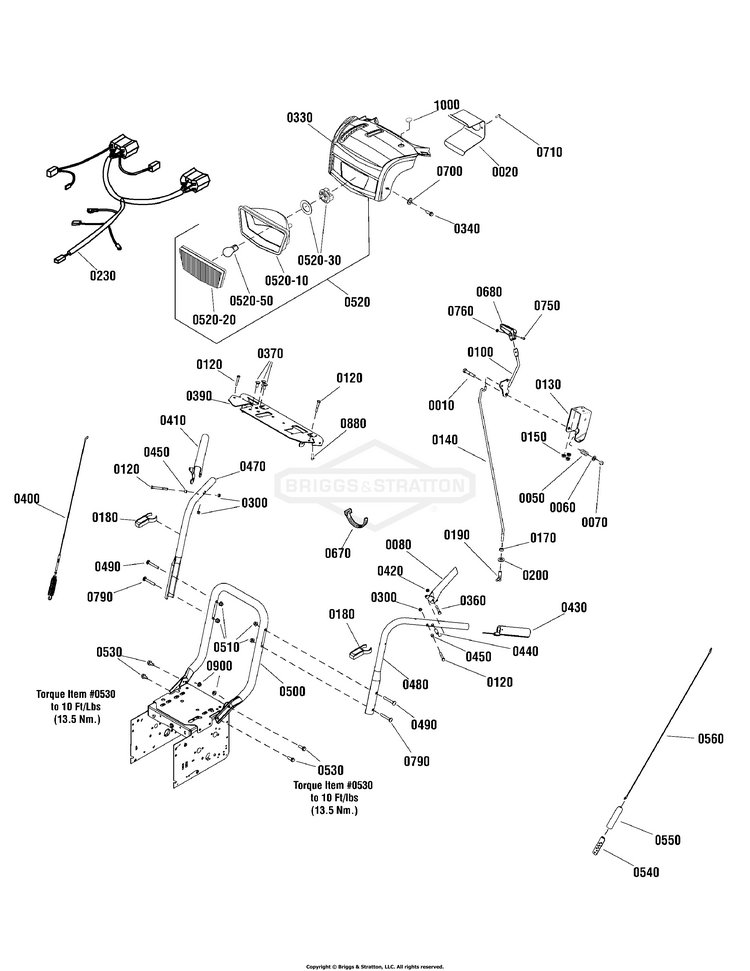

Handles & Controls Group

...
...
0010
CAPSCREW, 3/8-16X2 BS-703589
...
0020
BRACKET, Light Mount (Used on 1696199 Only) BS-1736305AYP
...
0050
SPRING,.509 DIA X0.75 BS-50786MA
...
0060
WASHER, FLAT .406X.81 BS-71072MA
...
0070
NUT BS-703117
...
0080
LEVER, CLUTCH, L.H. BS-1739782AYP
...
0100
LEVER, SPEED BS-703047
...
0120
TIE, SELF LOCKING BS-703586
...
0130
BRACKET, Controls BS-1737684YP
...
0140
ROD, SPEED CONTROL BS-704085
...
0150
NUT, 5/16-18, GR5 BS-703409
...
0170
NUT, 5/16-24 BS-703331
...
0180
BRACKET, Lower Mounting BS-1739510YP
...
0190
BALL JOINT BS-703224
...
0200
WASHER, 5/16" LOCK BS-5025170SM
...
0230
WIRING HARNESS, Headlights (Used on 1696199 Only) BS-1750359YP
...
0300
NUT, 1/4-20, NYLOCK BS-703232
...
0330
DASH PANEL ASMY (Used on 1696212 Only) BS-1757540YP
...
0330
COVER ASSEMBLY, Panel (Used on 1696199 Only) BS-1753097YP
...
0340
SCREW, 10-14 BS-703062
...
0360
BOLT, Shoulder, 1/4 x 1-1/4 BS-1753529YP
...
0370
BOLT, Round Head, Short Square Neck BS-703185
...
0390
SUPPORT, Dash BS-1739500AYP
...
0400
CABLE & SPRING ASSEMB BS-703221
...
0410
LEVER, CLUTCH, R.H. BS-1739783AYP
...
0420
NUT, NYLOCK, 10-24 BS-703412
...
0430
GRIP BS-1726317SM
...
0440
SPACER, Stepped BS-703223
...
0450
SPACER BS-703137
...
0470
HANDLE, Upper, RH BS-1734587ASM
...
0480
HANDLE, Upper, LH BS-1734586ASM
...
0490
SCREW, 5/16 X 2.25 BS-704421
...
0500
HANDLE, Lower BS-1737274AYP
...
0510
NUT BS-703115
...
0520
HEADLIGHT ASSEMBLY (Used on 1696199 Only) BS-1736208YP
...
0520-30
SOCKET & GASKET ASSEMBLY, Headlight (Included with Ref. No. 0520) BS-1736180YP
...
0530
BOLT, Round Head, Short Square Neck BS-703185
...
0540
BRACKET, CABLE ADJ BL BS-313441MA
...
0550
BOOT, Spring End Cover BS-308146MA
...
0560
Cable, Auger Drive BS-762259MA
...
0670
TIE, Self Lock (Used on 1696199 Only) BS-1701011SM
...
0680
KNOB, Slot Speed BS-1733192SM
...
0700
WASHER BS-703332
...
0710
SCREW, 10X.62 UNSL-HW (Used on 1696199 Only) BS-316042MA
...
0750
SCREW, Round Head Phillips, #10-24 x 3/4 BS-1960589SM
...
0760
NUT, NYLOCK, 10-24 BS-703412
...
0790
BOLT,RD SH SQ BS-703175
...
0880
SCREW, Hex Hd., Slotted, Plastite, 1/4-10 x 5/8 BS-1960728SM
...
0900
NUT, Hex KEPS, Conical Washer, 5/16-18 (Used on 1696199 Only) BS-703222
...
1000
PLUG (Used on 1696199 Only) BS-1752273YP
